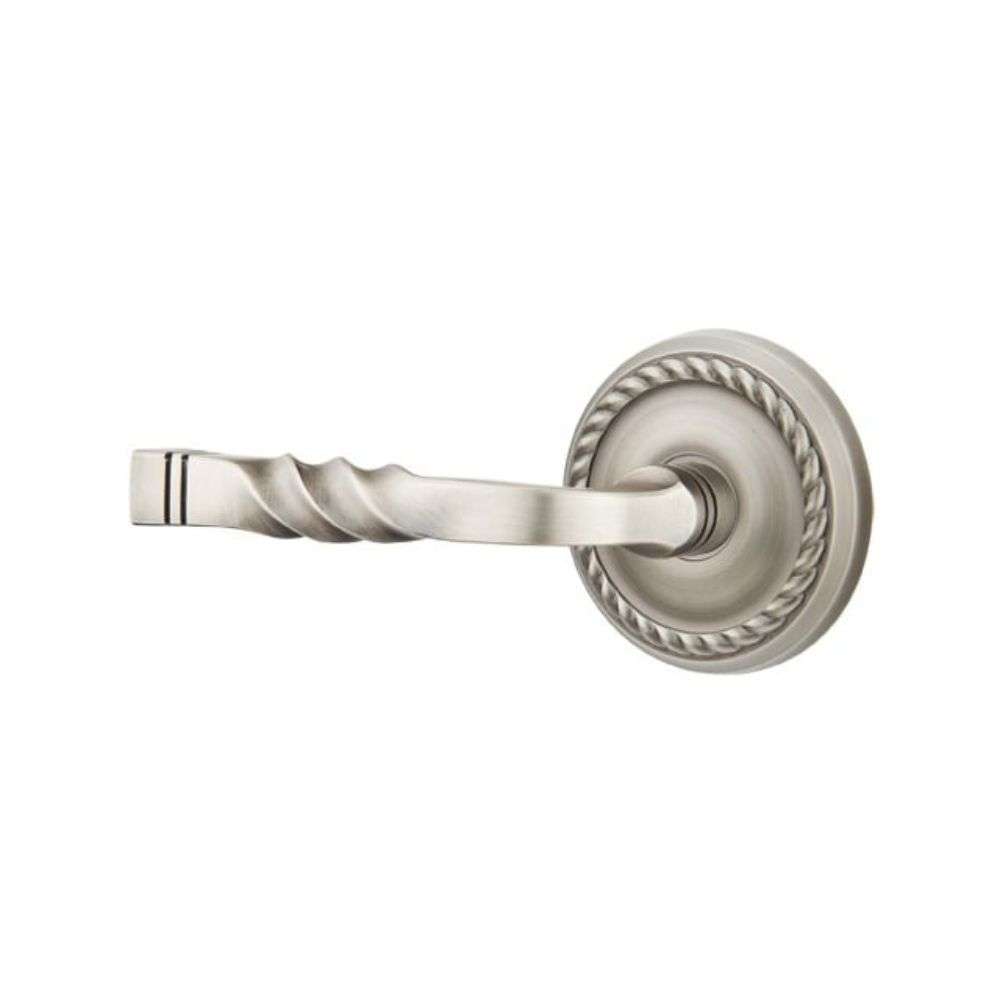

Emtek C8101SF-US15A-LH Classic Design Series Santa Fe Grade 2 Lever Set
Santa Fe Lever by Emtek Brass Designer Series
The Emtek Santa Fe is a rugged and beautifully crafted leverset using traditional American latches complete with a variety of trim styles, handcrafted from authentic materials. The leverset is operated by a lever from both the interior and exterior.
The Brass Designer Collection's knob / lever handles are supported by springs mounted behind the rosettes and sideplates, which return the handles back to the rest position and prevent lever sag. The latches are heavy-duty die case construction, with strong internal springs, solid brass nose bolts, and sintered metal cams. A plastic bushing located in the joint between the handle and the rosette ensures a friction-free wear surface, preventing metal from bearing on metal and providing smooth, long-lasting operation. Handles are positvely connected to rosettes with a permanent clip. Each has a set screw which eliminates "handle wobble" when tightened. Emtek's threaded tubes are machined brass to ensure good threads and prevent corrosion.
Function: The Emtek Santa Fe Lever is available in Passage (810SF), Privacy (820SF), and Dummy Pair (805SF) function.
Finish: The Emtek Santa Fe Lever comes in French Antique (US7), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Pewter (US15A), Polished Chrome (US26), and Lifetime Brass (US3-Lifetime) finish.
Handing: The Emtek Santa Fe Lever is handed (non-reversible) meaning you must specify Left Hand (LH) or Right Hand (RH). Click Here for Handing Diagram.
Rosette: Choose from one of the following Brass Rosette Designs: Regular, Rope, Lancaster, Ribbon & Reed, #8, Oval, Rectangular, Quincy, and Wilshire or chooose from one of the following Modern Rosette Designs: Modern, Disk, Square, Neos, and Modern Rectangular. Click Here to View Brass Rosette Styles & Click Here to View Modern Rosette Styles.
Door Range: 1-1/4" - 2".
Backset: All Emtek locksets come standard with 2-3/8" backset and Square Corner Latch (Face: 2-1/4" x 1"). If you need 2-3/4" backset or Round Corner Latches please specify in the Comments Box upon checkout.
Strike: All Emtek locksets come standard with Square Corner Strikes (2-1/4" x 1-1/2"). If you need Round Corner Strikes please specify in the Comments Box upon checkout.
CF Mechanism: Emtek's Concealed Fastener Mechanism (CF Mechanism) is an optional upgrade to your order and consists of concealed screws (no exposed screws). The chassis design of the CF Mechanism is spring-loaded on both sides and comes standard with the 28° Latch. The CF Mechanism is available for all Brass, Stainless Steel, Bronze and Crystal interior passage, privacy & dummy locksets.
28° Latch: The 28° Latch is available as an optional upgrade without the CF Mechanism. These latches are available for all our current brass, bronze, and wrought steel privacy, passage, and platesets. The 28° latches are an ergonomic alternative to standard latches, shortening the rotation required to turn the knob or lever. Please see "Related Items" above.
Expedited Delivery: Emtek will expedite orders that are shipped UPS-Blue (2-Day) or UPS-Red (Overnight). Expedited orders are moved to the front of the factory's processing line and ship direct with 1-or 2-day delivery. Please allow 1-2 days processing time on all expedited orders depending on current factory workload.
