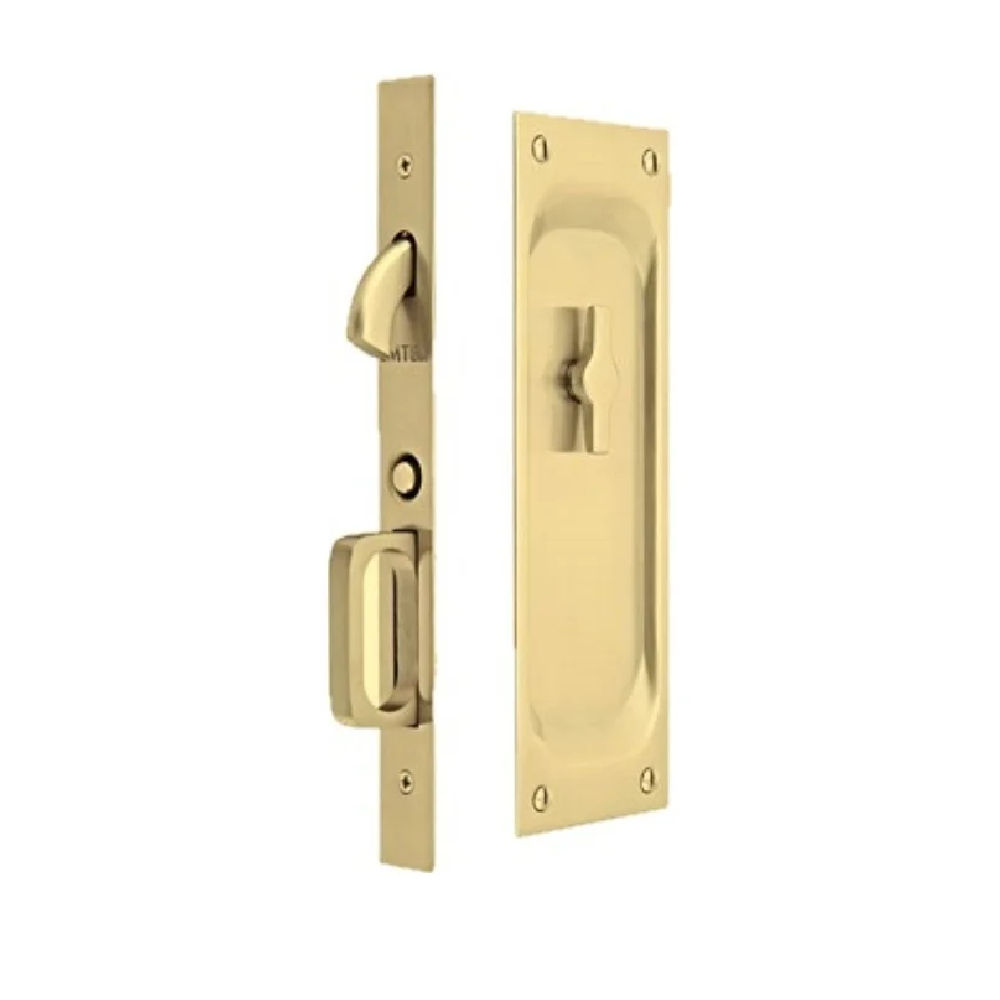

Emtek 2105-US3NL-138 Classic Mortise Privacy Pocket Door Lock
A privacy set is typically used for bathrooms or bedrooms, it can be closed from inside and in case of emergency it can be opened from the outside using a screw driver or coin. This complete pocket door privacy mortise set includes; 1 side plate with a thumb turn, 1 side plate with an emergency release turn piece, mortise lock body, faceplate, strike plate and all necessary mounting hardware. Plates are 1/16 Thick.
Width: 2-1/2 (64mm). Height: 7-1/2 (191mm).
Application: 1-3/8 (35mm) or 1-3/4 (44mm) thick doors.
Trim Plate: 7-1/2 H (191mm) x 2-1/2 W (64mm) x 1/16 D (2mm).
Edge Face Plate: 7/8 W (22mm) x 8-1/16 H (205mm) x 3/16 (5mm).
Mortise Lock Body: 3-7/8 D (98mm) x 6-1/4 (159mm).
Backset: 2-3/16 (56mm).
