CompX C8060 1-3/4 KD Bright Nickel Cylinder Length Disc Tumbler Cam Lock

CompX C8060 1-3/4 KD Bright Nickel Cylinder Length Disc Tumbler Cam Lock

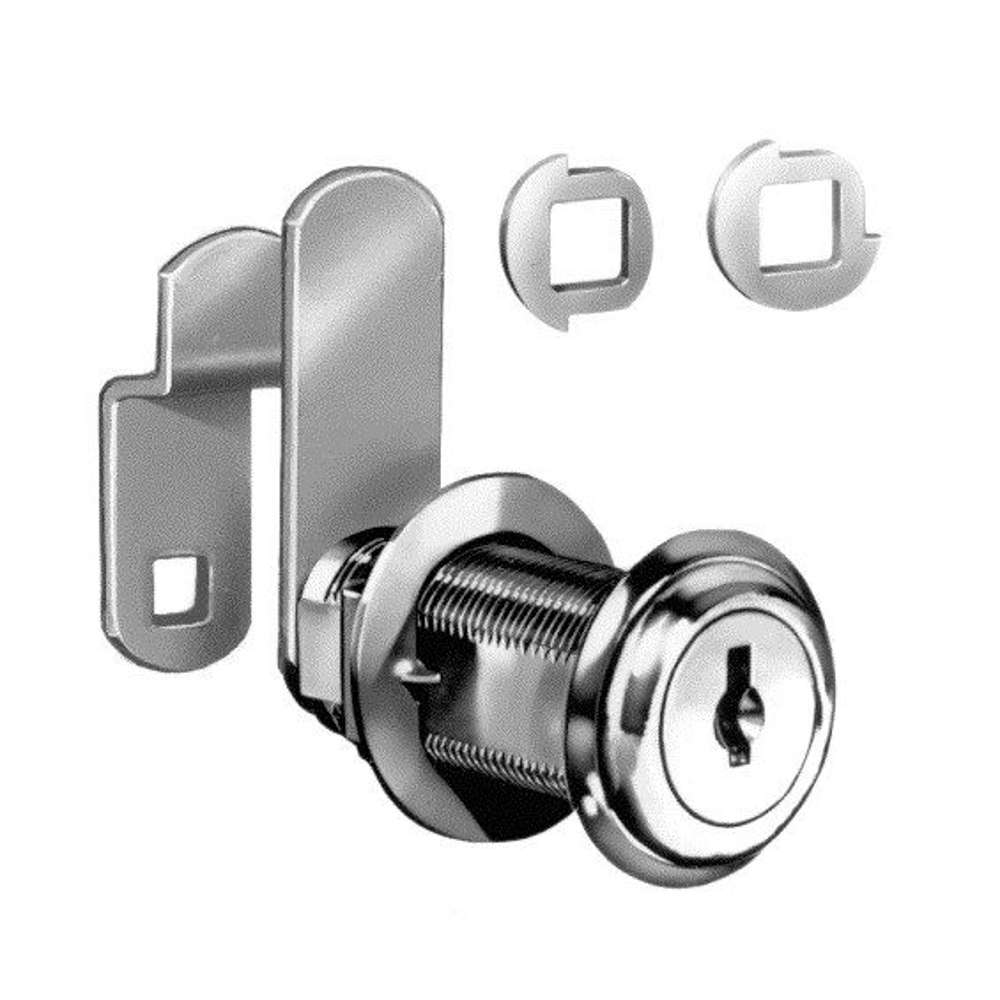

C8060 - Disc Tumbler Cam Lock by CompX

Cylinder Length: 1-3/4".
Maximum Material Thickness: 1-7/16".
Finish: Bright Nickel (14A).
Keying: Keyed Different (KD)

Application: For drawers, RH or LH doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length.
Operation: Choice of either 90° or 180° cam turn. Key removable in both locked and unlocked positions.
Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut, two cams, and two stop washers.

National C8060-14A-Kd 1-3/4' National Cabinet Cam Lock

• For drawers, R.H. or L.H. doors with lipped/overlay construction (straight cam) or flush construction (formed cam). For overlay application, the combined thickness of front and frame cannot exceed the cylinder length. Also see overlay detail at above right.
• Operation: Choice of either 90° or 180° cam turn. Key removable in both locked and unlocked positions.
• Keying: Will key together with all other disc tumbler locks using D8785 key blank. See table for available keying. Master keying to E41A using D8783 key blank.
• Packaging: Supplied with two keys, trim washer, spur washer (for wood), mounting nut, two cams and two stop washers. If flat washer (for metal) is needed, order C2015-2C separately
