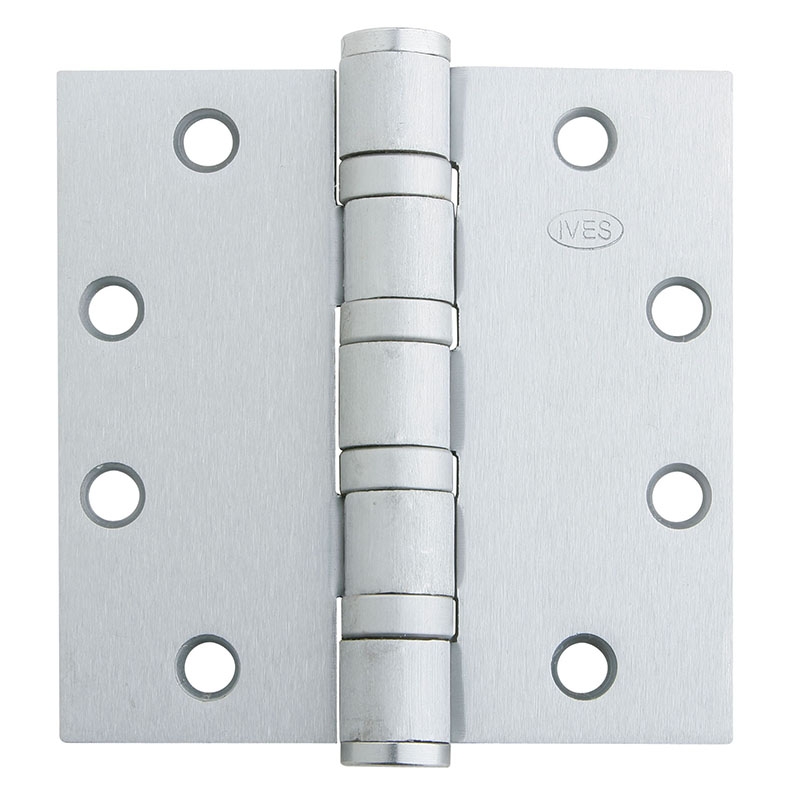

Ives-Glynn Johnson 5BB1HW-4.5X4.5-630 5-Knuckle Hinge
5BB1 Architectural hinges
5 Knuckle, ball bearing full mortise hinge
- Recommended for medium weight doors (<150 lbs)
- Recommended for medium frequency usage (<400 cycles per day)
- Made with two ball bearing assemblies
- Recommended for use with a door closer
- Packed with fasteners for hollow metal and wood doors
- 12-24 x 1/2 UFPHMS, 12 x 1 1/4 FPHWS
- 10-24 x 1/2 UFPHMS, 10 x 1 FPHWS (3.5x3.5 hinge size only)
- Certifications:
- Certified to ANSI/BHMA A156.1 for performance standards
- Meets ANSI/BHMA 156.7 for template hinge dimensions
- UL Classified for windstorm rated assemblies - R37965
- UL Listed, 3 hour fire doors
Material substrate: Made from brass, 1040 steel, or 304 series stainless steel
Options:
- NRP: Non-removable pin
- HT: Hospital tip
- SH: Security stud - comes standard with NRP
- RC-1/4, RC-5/8: Rounded corners
- SEC: Security fasteners - pin-in-socket
- TW4: Four wire
- TW4M: Four wire with monitor
- TW8: Eight wire
- TW8M: Eight wire with monitor
- MON: Monitor
