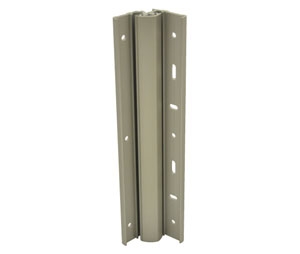

Ives-Glynn Johnson 157XY-83IN-US28 Aluminum Continuous Hinge

Clearance Requirements

Model: 157XY

Single door

• Hinge-side clearance: 1/16"
• Lock-side clearance: 1/8"
• Frame irregularity: 1/32"
• Beveled door clearance: 1/32"
• Door under-sizing (Square edged): 7/32"
• Door under-sizing Beveled edged): 1/4"

Pair of doors

• Hinge-side clearance (2 doors): 1/8"
• Lock-side clearance: 3/16"
• Frame irregularity (2 doors): 1/16"
• Beveled door clearance (2 doors): 1/16"
• Door under-sizing (Square edged total): 3/8"
• Door under-sizing (Square edged each door): 3/16"
• Door under-sizing (Beveled edged total): 7/16"
• Door under-sizing (Beveled edged each door): 7/32"

The Ives-Glynn Johnson 157XY-83IN-US28 Aluminum Continuous Hinge is a Aluminum Continuous Hinge.

Features include:

• Full surface
• Center pivot
• Clear Anodized Aluminum
• Length  83"
