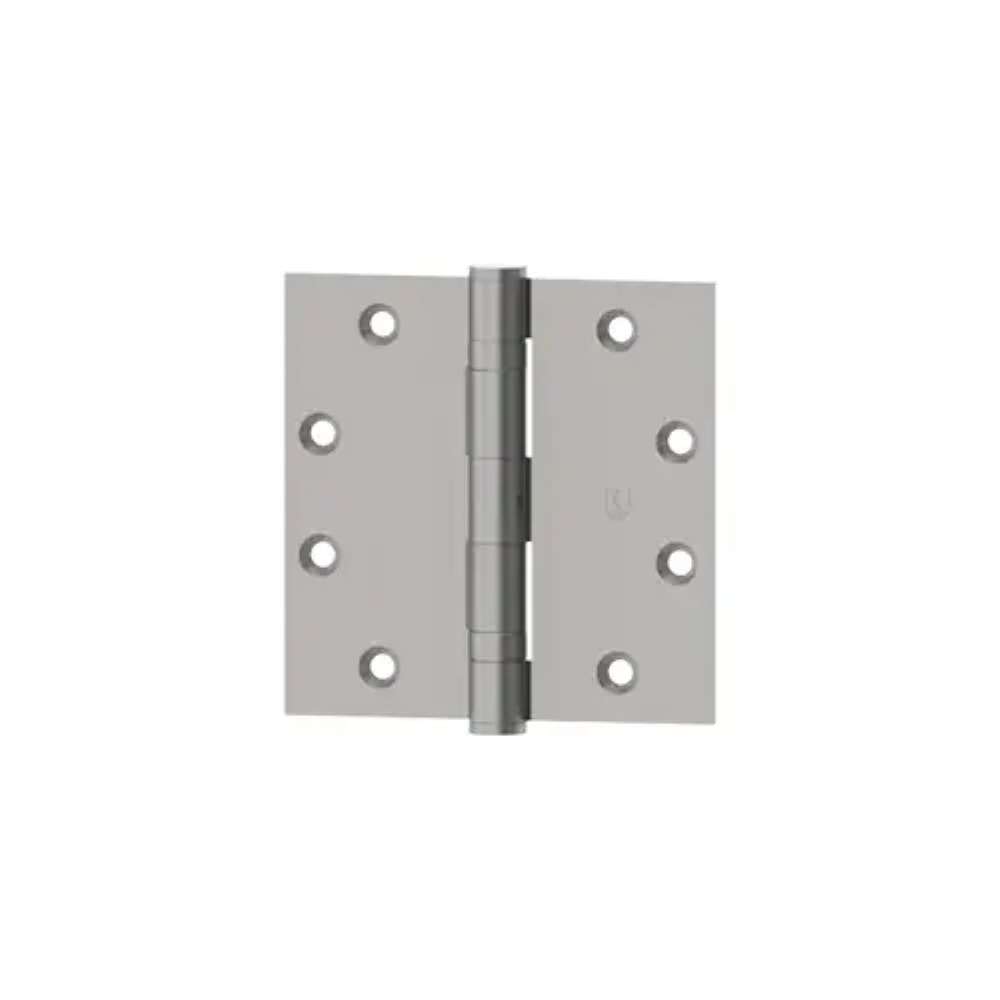

Hager BB1279-5X5-26D Chrm Full Std 5 Knuckle Hinge Sqr 5x5

Hager BB1279-5X5-26D Chrm Full Std 5 Knuckle Hinge Sqr 5x5

Applications

For use on medium weight doors or doors requiring medium frequency service

Certifications

ANSI A8112

Electric Modifications

EMN (Electric Monitor Only), ETW (Electric Through-Wire Only), ETM (Electric Through-Wire with Monitoring), Quick Connect

Features

Two ball bearings. Non-rising removable pin with button tip and plug.

Finishes L1, LS, H2H, USP, US3, US4, US10, US10A, US10B, US15, US26, US26D

• Additional finishes may be available, please contact Hager for availability and lead time.

Fire Rating

• Complies with NFPA80 requirements for use on fire rated door assemblies

Knuckles 5

Material Steel with Steel Pin

Options

• 3-1/2" x 3-1/2" (89 mm x 89 mm) available with reversible hole pattern
• NRP (Non-removable pin)
• Stamped with UL logo when ordered for export
• Hospital tip

The Hager name is synonymous with commercial hinges. In fact, they are the industry’s premier designer and manufacturer of commercial hinges. With legendary quality, time-tested durability, and consistent superior performance, Hager is the one name, and one brand, you can count on to provide it all.

• ANSI A8112
• Two ball bearings
• For use on medium weight doors or doors requiring medium frequency service
• Complies with NFPA80 requirements for use on fire-rated door assemblies
• Available with reversible hole pattern.
