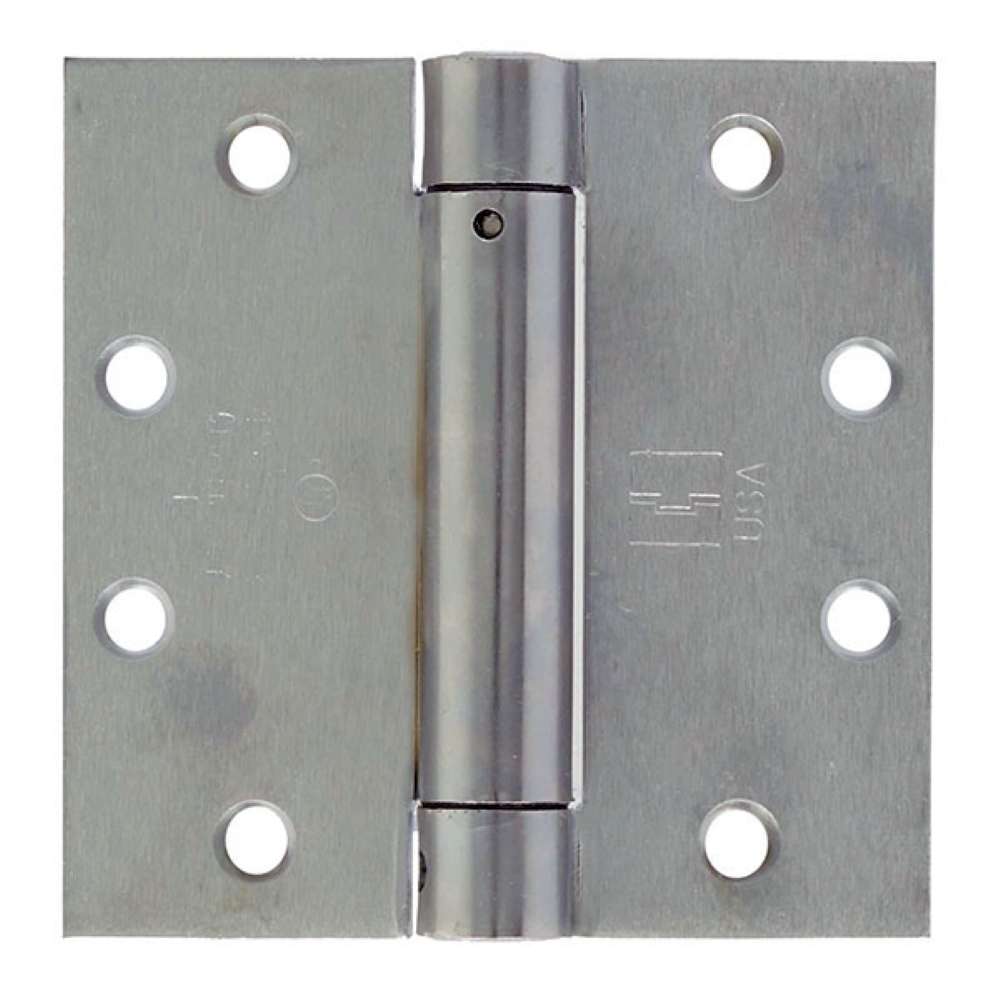

Hager 1250-4.5x4.5-US26D Listed Spring Hinge 4 5x4.5in Chrme

Hager 1250-4.5x4.5-US26D Listed Spring Hinge 4 5x4.5in Chrme

Box Quantity 3-1/2" x 3-1/2", 2 per box. All other sizes, 3 per box.

Case Quantity 3-1/2' x 3-1/2" 80 per box. All others 48

Certifications ANSI K81071F

Finishes USP, US3, US4, US10, US10A, US10B, US26D

Material Steel with Steel Components

Options

• Available with hospital tip (HT) - voids UL.
• Available with raised barrel (RBB/RBS) - UL approved.

Product Description Full Mortise, Spring Hinge, Standard Weight, Square Corner

• UL approved for use on doors 4'0" x 8'0", but Hager does not recommend using spring hinges on doors over 7'0" in favor of hydraulic door closers.
• For maximum versatility use all spring hinges or a combination of spring hinges and ball bearing or anti-friction hinges. Do not use plain bearing hinges. Strong wind conditions, drafts, carpeting drag, twisted/misaligned frames, or weatherstripping on doors may require additional spring hinges. Full spring tension may not be required on all hinges.
• Doors over 3'0" x 7'0" or over 100 lbs require three spring hinges. Doors 150-180 lbs require four spring hinges.
