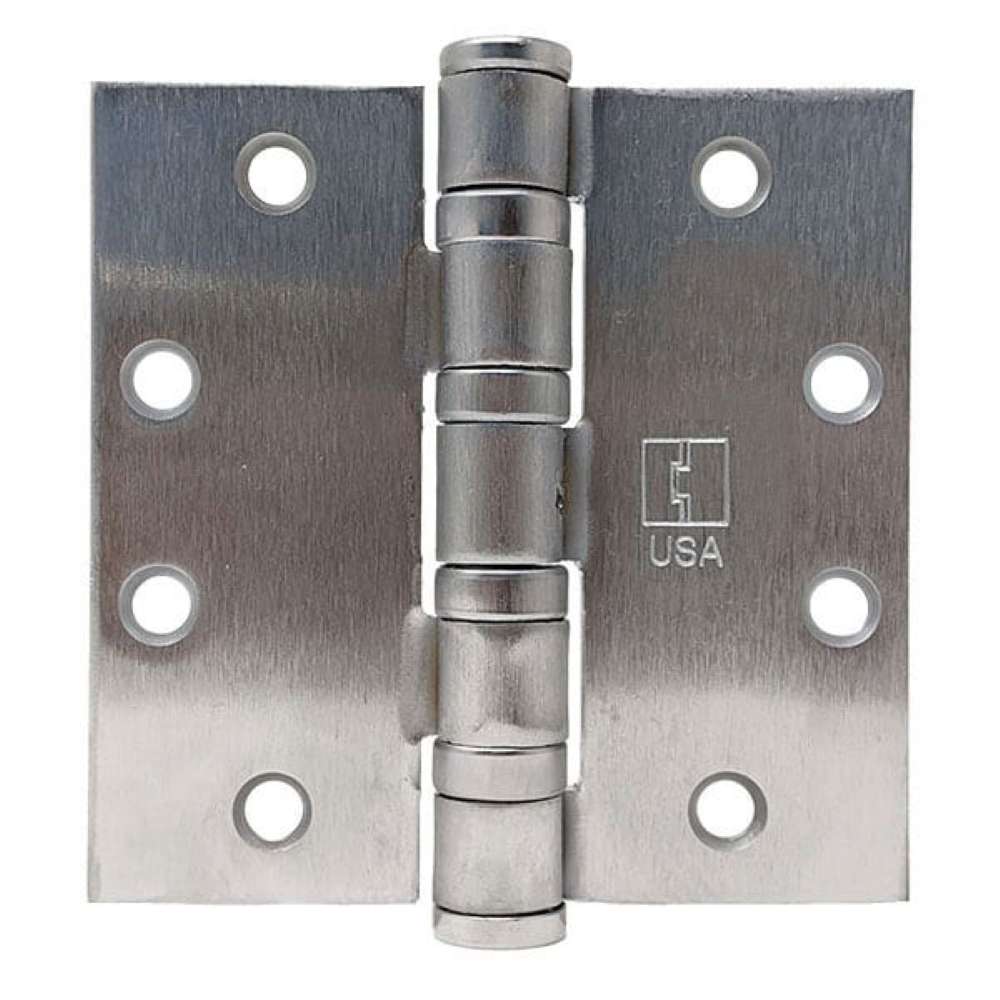

Hager BB1199-5X4.5-32D-RSS Full Mrt Hvy Bll Hinge 5x4.5 Steel
Applications For use on heavy weight doors and doors requiring high frequency service
Certifications
ANSI A2111 (Brass), ANSI A5111 (Stainless Steel)
Electric Modifications
EMN (Electric Monitor Only), ETW (Electric Through-Wire Only), ETM (Electric Through-Wire with Monitoring), Quick Connect
Features
- Four ball bearings. Non-rising removable pin with tip and plug.
- 1/16" swage standard
Finishes US3, US4, US10, US10B, US15, US26, US26D, US32, US32D
- Additional finishes may be available, please contact Hager for availability and lead time.
Fire Rating Stainless steel model complies with NFPA80 requirements for use on fire rated door assemblies
Knuckles 5
Material Brass with Stainless Steel Pin, Stainless Steel with Stainless Steel Pin
Options
- NRP (Non-removable pin)
- Stamped with UL logo when ordered for export
- 1/4" radius
- 0 swage
Product Description
Full Mortise, Ball Bearing, Heavy Weight
