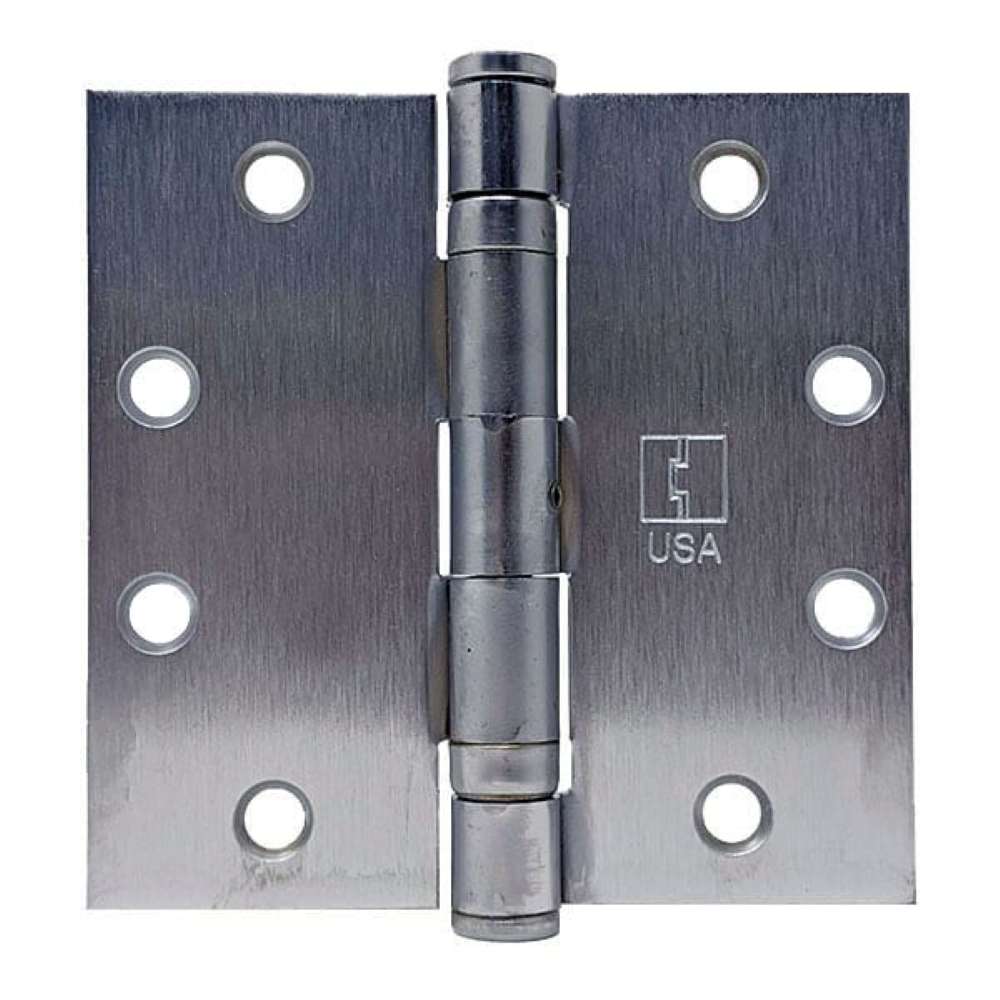

Hager BBB1191-45x45-US32D 5-Knuckle Mort Heavy Hinge 4.5x4.5
Full Mortise, Ball Bearing, Standard Weight
Applications: For use on medium weight doors or doors requiring medium frequency service
Certifications
- ANSI A2112 (Brass)
- ANSI A5112 (Stainless Steel)
Features
- Non-rising removable pin with button tip and plug. Two ball bearings.
- 1/16" swage standard.
Finishes: L1, US3, US10, US10B, US15, US26, US26D, US32, US32D
Additional finishes may be available, please contact Hager for availability and lead time.
Fire Rating: Stainless steel model complies with NFPA80 requirements for use on fire rated door assemblies
Knuckles: 5
Material: Brass with Stainless Steel Pin, Stainless Steel with Stainless Steel Pin
Options
- NRP (Non-removable pin)
- Stamped with UL logo when ordered for export
- 1/4" radius
- 0 swage
