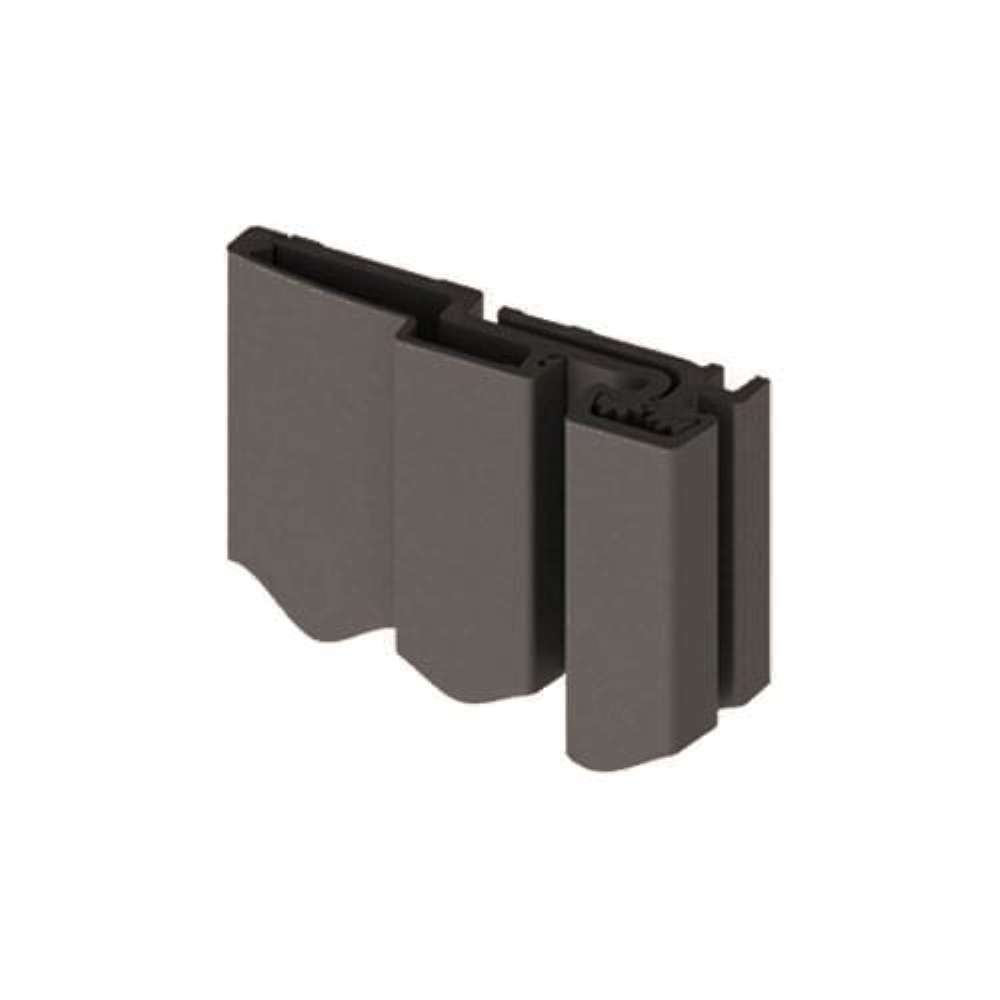

Hager 780-210HD-83-US10 Full Surface Continuous Hinge Bronze
Applications
- Lead lined model for hospital x-ray room doors with double row of fasteners to straddle lead (specify "LL")
- Frame and door leaf alignment ribs for proper hinge and door location
- Clearance
- 5/16" (8 mm) hinge side
- Plus standard lockside clearance
- Door Reinforcement
- None required to 200 lbs. Heavier weight use 16-gauge channel.
Electric Modifications
- Power Transfer Preparation (EPT 2) or (EPT 10),
- Exposed Electric Contacts (E),
- Exposed Electric Switches (E1S),
- Electric Through-Wire (ETW),
- Electric Monitoring (EMN),
- Electric Through-Wire and Monitoring (ETM),
- Removable Electric Through-Wire (RETW
Fasteners
- Standard: Dril-Kwik® – #12-24 X 11/16" Flat Head Screws
- Optional: 1/2 Dril-Kwik® Screws, 1/2 wood Screws
- Additional Options Available upon request
Finishes CLR, DBZ, BLK
Fire Rating
- Up to 3-hour metal and 90 minute wood composite (with studs)
- Frame Reinforcement
- None required to 200 lbs. Heavier weight use 16-gauge channel.
Length 79", 83", 85", 95", 119"
Length Options: Standard and Custom
Material Aluminum 6063-T6
Options
- Hospital Tip
- TIPIT (see Roton accessories)
- Product Description
- Concealed Leaf
- Case Pack w/ Drill Quick fasteners
