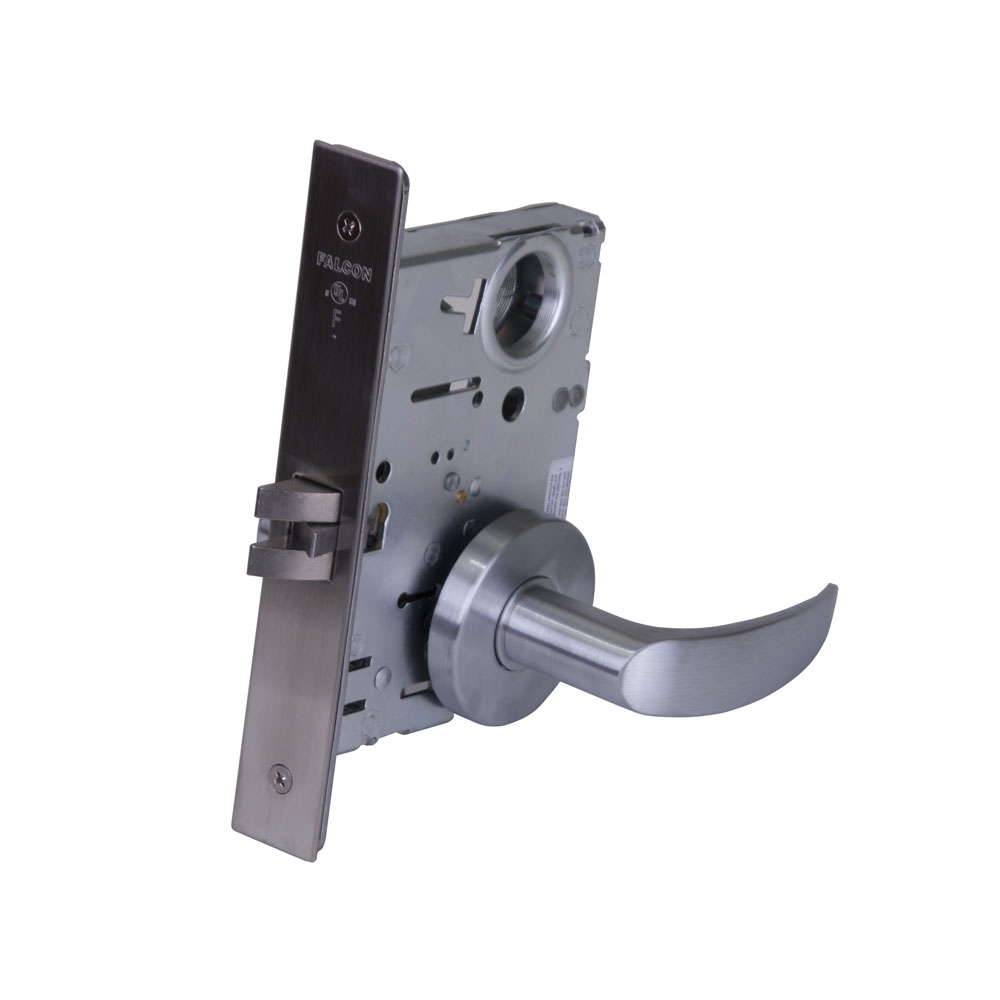

ANSI/BHMA: Certified ANSI/BHMA 156.13, Series 1000, Grade 1. UL: Listed 3-hour fire door, A label.
UL: Listed 3-hour fire door, A label.
Door thickness: Standard offering only accepts door thicknesses of 1 3⁄4" - 1 7⁄8".
Backset: 2 3⁄4" only.
Case: Cold formed steel, zinc dichromate plated, .090” thick. Optional lead wrapping available.
Hubs: Hardened steel.
Handing: Right hand is standard; left hand optional. Reversible in the field.
Bind resistant trim: Heavy-duty through-bolted inserts clamp the trim on the door assuring proper alignment.
- Provided with 8-32 screws for strength and thread sealant to prevent loosening.
Latch bolt: Two-piece stainless steel, mechanical anti-friction bolt. 3⁄4" projection.
Dead bolt: 1" throw, stainless steel with two 3⁄16" diameter hardened steel, free-turning, saw-resistant roller.
Faceplates: (armored front) 11⁄4" x 8" brass or stainless steel adjustable for door bevel. Reinforced by heavy gauge steel with stabilizing ribs.
Strike: Brass or stainless steel. Meets ANSI AII5.1 for frame preparation. Strike is non-handed.
