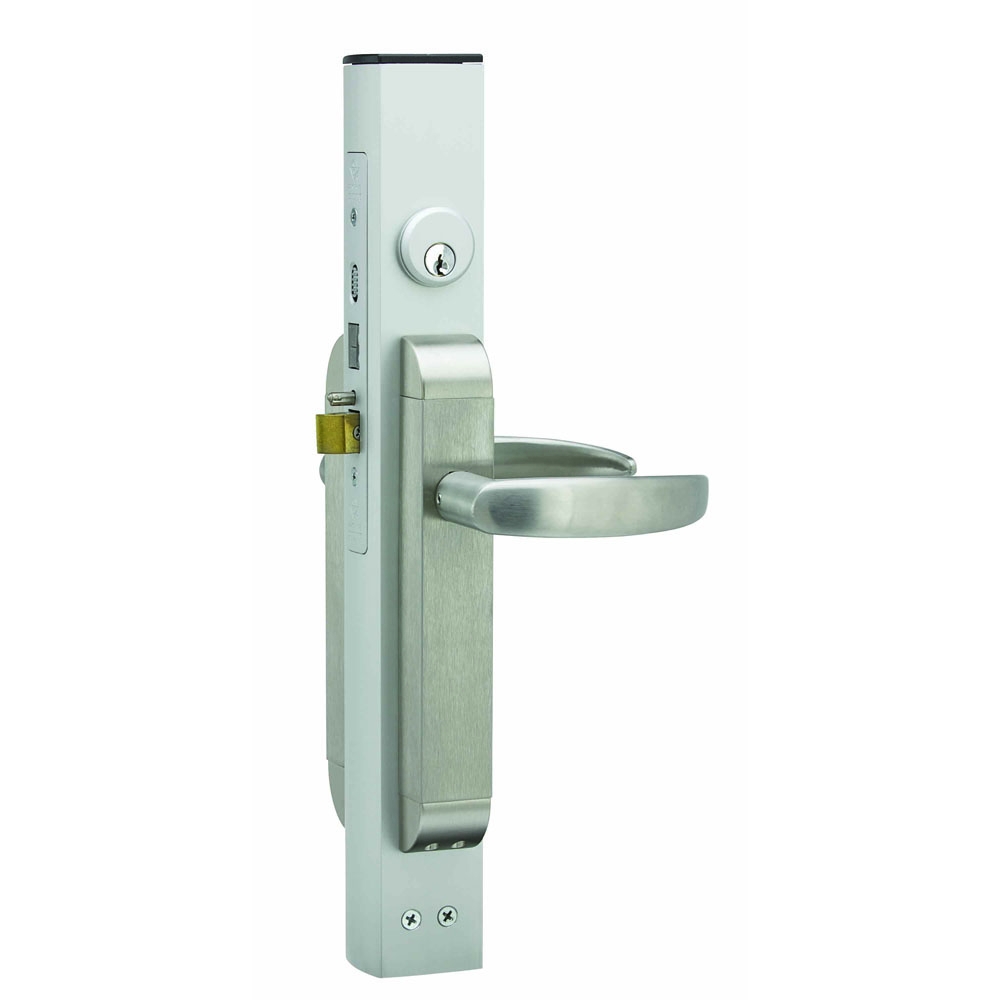

Adams Rite 2190-311-101-32D Dual Force Interconnected Lock

Adams Rite 2190-311-101-32D Dual Force Interconnected Lock

Cylinder Backset: 1-1/8" [28.6 mm] or 1-1/2" [38.1 mm] only

Bolt:

• Latchbolt: 5/8" [15.9 mm] throw of solid brass. Easily reversible using only a screwdriver.
• Deadbolt: 1" [25.4 mm] throw of stainless steel.
• Auxiliary Deadlatch Pin: Stainless steel. Deadlocks latchbolt to prevent “loiding” or case-knife entry.
• Faceplate: Includes faceplate system that adapts to flat, radius, or beveled door edge.
• 2190: Measures 1" x 6-7/8" [25.4 mm x 174.6 mm]. Radius with weatherseal faceplate available separately.
• 2290: Measures 1-1/4" x 8" [31.8 mm x 203.2 mm].
• Strike: The Dual Force 2190, 2290 Interconnected Deadbolt/Deadlatch will not operate without its specially designed strike, included standard in package.
• 2190: Standard strike furnished is the 2101-01 Strike for flat jamb where door closes flush or nearly flush. The 2101 Strike covers MS® Deadlock strike preparation with modification, and the 4901 Deadlatch Strike directly. Also available in radius version for opposite stile pairs of doors and with extended lip strikes for special jamb conditions.
• 2290: Standard strike furnished is the 2206 (ASA) Strike for flat jamb where door closes flush or nearly flush.
• Inter Connection: Field-selectable inter-connection feature allows interior trim to retract deadbolt and deadlatch. Consult local authority having jurisdiction (AHJ) for guidance in code compliance. 1-3/4" [44.5 mm] minimum door thickness required. 2190 retrofits to existing MS1850S Deadlock or 4500 and 4900 Deadlatch of the same backset.
• Standard Package: Individually boxed with trim as specified, strike and machine screws for mounting. Cylinder available separately.
• Shipping Weight: 9 lbs [4.08 kg].

Adams Rite 2190-311-101-32D Dual Force Interconnected Lock provides security and access control for aluminum stile doorways, specificially. The latch and deadbolt capabilities are combined for fast, easy exits. The exterior lever retracts only the latch, the inside lever retrachs the deadbolt and latch simultaneously. The key retracts and extends the deadbolt from both sides.

• Intended for out-swinging doors
• Made out of aluminum
• Electrified option available
• Satin stainless finish
• Latchbolt has a 5/8" throw of solid brass, which is easily reversible using a screwdriver
• 1" throw stainless steel deadbolt
• Stainless steel auxilary deadlatch pin Latch and deadbolt capabilities are combined for fast, easy, and panic-proof exiting
