Sargent Commercial 480 Series Grade 1 Deadbolt
480 Series Deadbolt by Sargent Commercial
The Sargent 480 Series is a high grade cylindrical deadbolt which meets ANSI A156.5 Grade 1 requirements.
Function: The Sargent 480 Series Deadbolt is available in Single Cylinder (485) and Double Cylinder (484) function.
Finish: The Sargent 480 Series Deadbolt comes in Brass (605) and Satin Chrome (626) finish.
Cylinder: The 480 Series comes with a standard 6-Pin Cylinder, Sargent LA Keyway, Keyed Different (Random). See "Keying Options" for other keying choices.
Door Range: 1-3/8" - 1-3/4" (35mm - 44mm).
Backset: 2-3/4" (70mm) Standard.
Latch: 7/8" (22mm) x 5/8" (16mm) x 1" (25mm) throw.

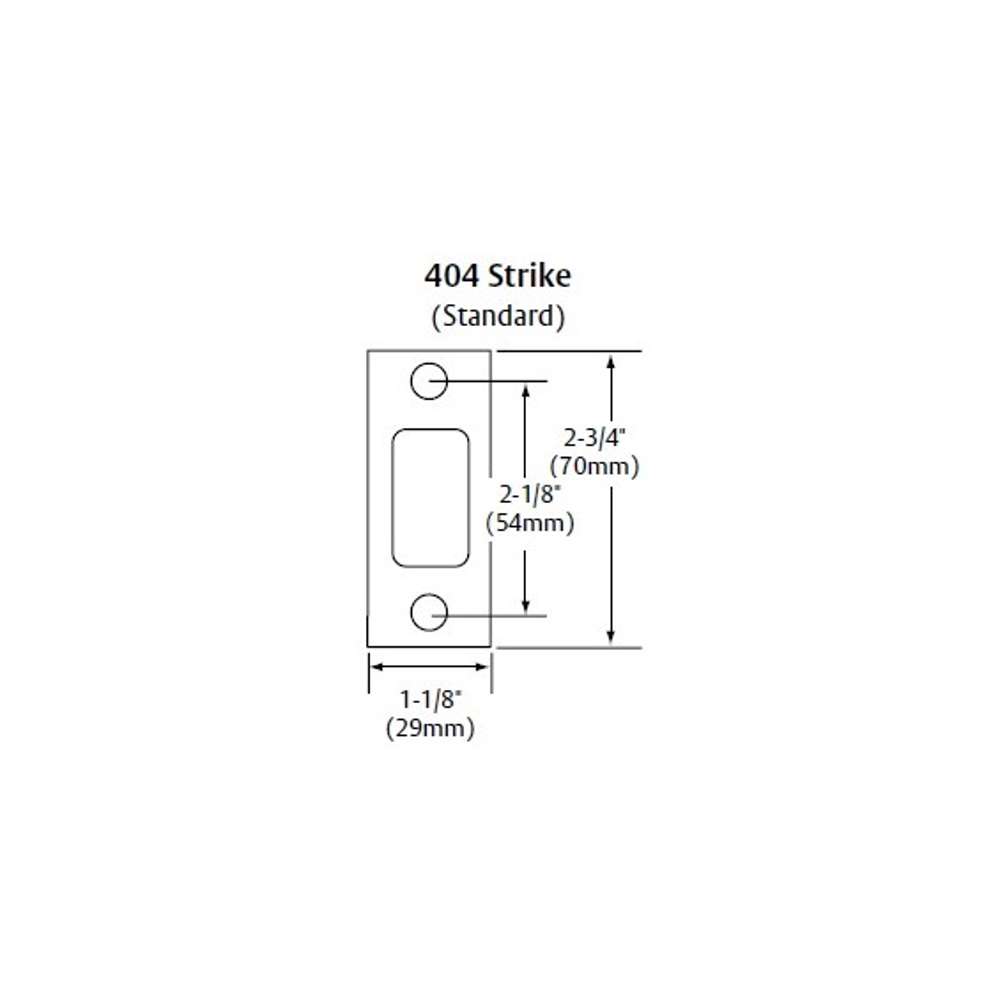

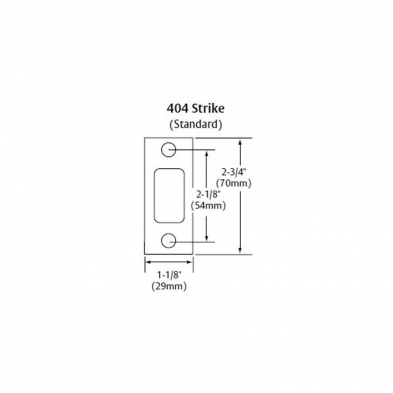

Strike: 404 Strike Supplied Standard.
