Pair with an F59 for a complete handleset

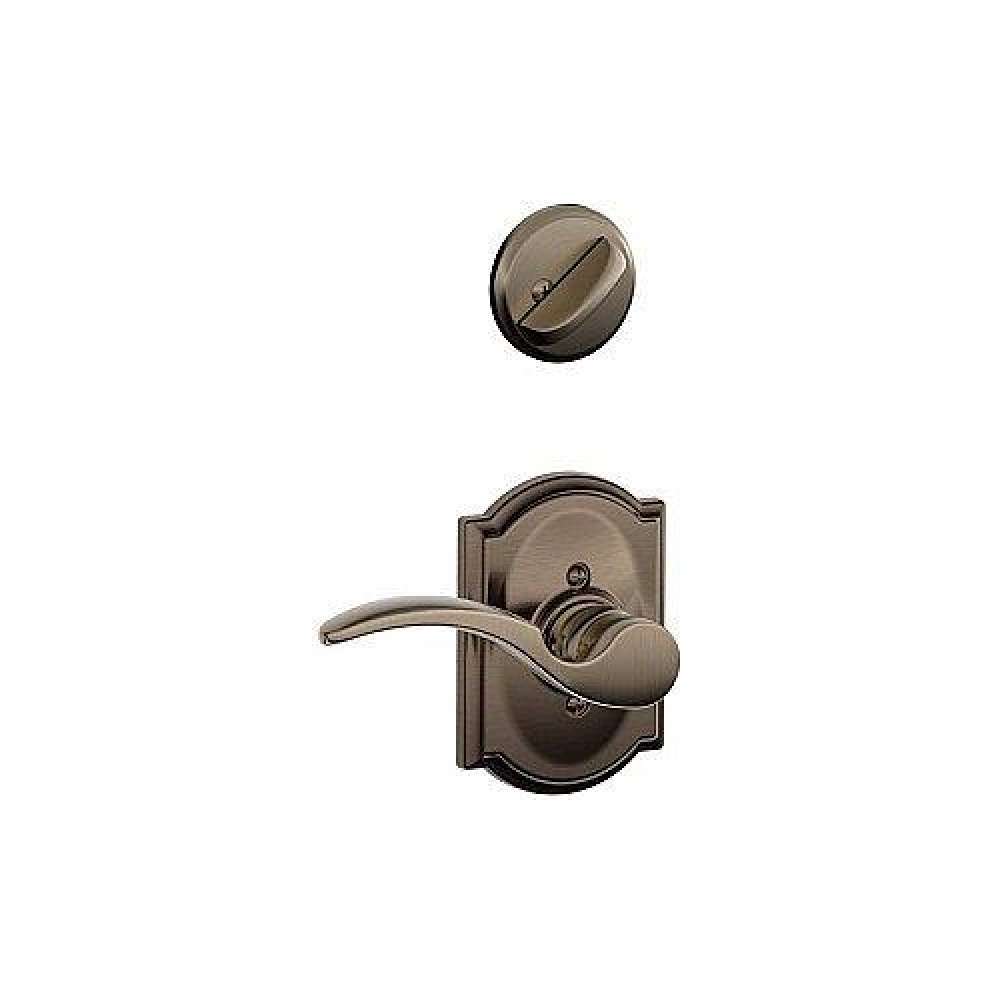

F59 – Handleset/Entrance Lock Interior: Inside trim, deadbolt thumbturn, latches, strikes & screws for F60 Pair with an F58 for a complete handleset
F60 – Single Cylinder Deadbolt/Entrance Lock: Deadbolt thrown or retracted by key from outside or by inside thumbturn Latch retracted by thumbpiece from outside or by inside knob/lever
F62 – Double Cylinder Handleset/Entrance Lock*:Deadbolt thrown or retracted by key from either side Latch retracted by thumbpiece from outside or by inside knob/lever
F92 – Inactive Handleset Exterior:Outside inactive grip & dummy deadbolt Pair with an F94 for a complete inactive handleset
F94 – Inactive Handleset Interior: Inside inactive knob/lever, blank deadbolt trim & screws Pair with an F92 for a complete inactive handleset
F93 – Inactive Handleset: For use as door pull or as decorative trim on inactive leaf of pair of doors Fixed thumbpiece and inside knob/lever Decorative deadbolt with inside trim
FE285 - Lower Half - Front Entry Set: Combine with Electronic Deadbolt for complete
Front Entry Set:
Latch retracted by thumbpiece from outside or by inside knob/lever
*CAUTION: Double cylinder locks on residences and any door in any structure which is used for egress are a life safety hazard in times of emergency and their use is not recommended. Installation should be in accordance with existing codes only.
Latches & Strikes: Latches:
12-322 - Dual Option - Round Corner + Drive-in
(16-080 + 12-321)
12-326 - Triple Option - Round Corner + Square Corner + Drive-in (16-210 + 12-287) Standard
12-353 - F60/62 UL Listed, 1" Square Corner
12-354 - F60/62 UL Listed, 1" Round Corner
Strikes:
10-115 - Round Corner Full Lip Strike Set (10-027 + 10-116)
10-269 - Round Corner Strike Set (10-026 + 10-027 + 10-116) Standard
Specifications: Certification:
ANSI/BHMA A156.36-2016 Commercial Grade 1
ANSI/BHMA A156.40-2015 Residential Grade AAA
Latch:
1" x 2 1/4", 1/4" radius corner faceplate, 7/8" housing diameter, 1/2" throw springlatch
Deadbolt:
1" x 2 1/4", 1/4" radius corner faceplate, 1" housing diameter, 1" throw, latchset number 12-321
Strike:
Part 10-269, includes: 1 1/4" radius corner deadbolt strike (10-116), radius round corner full lip strike (10-027)
Reinforcement:
Door frame reinforcer with 3" screws
Backset: Universal backset latch and deadbolt, fits either 2 3/8" or 2 3/4" backsets
Cylinder: 5-Pin, keyed 5-Pin, C keyway, keyed different (KD)
Door Range*: 1 5/8" - 1 3/4"
Keys: Two cut keys per lock, 5-pin, C section
Adjustable Throughbolt:
Adjustable throughbolt can move up and down 1 1/2" to fit a variety of pre-existing holes
Locks are furnished with standard features unless otherwise specified To order locks with non-standard features specify non-standard feature desired
*Thick door kit available for door thicknesses up to 2 1/4" See Parts sections for item number and pricing
