B60R6-B60 R6 Deadbolt Schlage IC Core Deadbolts

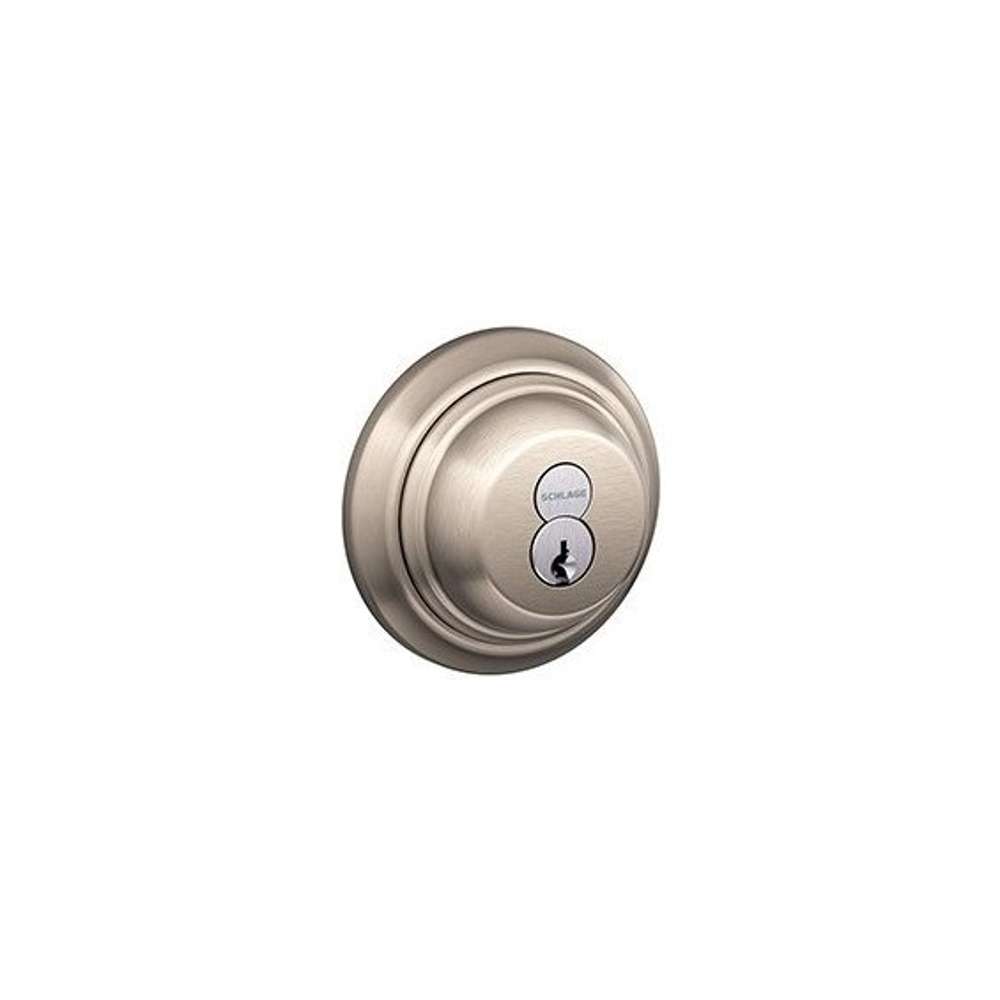

B60R6 Deadbolt by Schlage B-Series
The Schlage B60R6 is a Grade 2 deadbolt that is part of the Schlage B-Series Collection.
Function: The Schlage B60R6 Deadbolt is available in Single Cylinder Interchangeable Core (B60R6) function.
Finish: The Schlage B60R6 Deadbolt comes in Lifetime Brass (505), Satin Nickel (619), Satin Chrome (626), and Aged Bronze (716) finish.
The B60 Deadbolt is a new Grade 2 Residential Deadbolt from Schlage. Interchangeable core allows for quicker rekeying in multi-family applications. BHMA Grade 2 product performance. Increased latch/bolt size offers maximum kick-in resistance. Anti-pick shield. 3-Piece Assembly. Adjustable backset (2-3/8" or 2-3/4"). Deadbolt comes 0-Bitted (OB), for additional options see "Keying Options" above.
All Schlage Locks come standard with Round Corner Adjustable Latch (RCAL) and Round Corner Strike (RCS).
All Schlage Locks come standard with Drive-in Collars needed to convert standard latches into the drive-in function.
If you require Square Corner Strikes (SCS) please order from our Door Strikes Section.
If you require Square Corner Latches (SCAL) please order from our Latches Section.
Door Range: 1-3/8" - 1-3/4" (35mm - 44mm).
Backset: Dual Backset Latch; adjustable for 2-3/8" or 2-3/4" backset.
Door Prep: Required 1" door prep for larger bolt housing.
Latch: 1" x 2-1/4" (25mm x 57mm) Round Corner, 1" (25mm) housing diameter, 1" (25mm) throw.
Strike: 1-1/8" x 2-3/4" (29mm x 70mm) Round Corner Faceplate.
