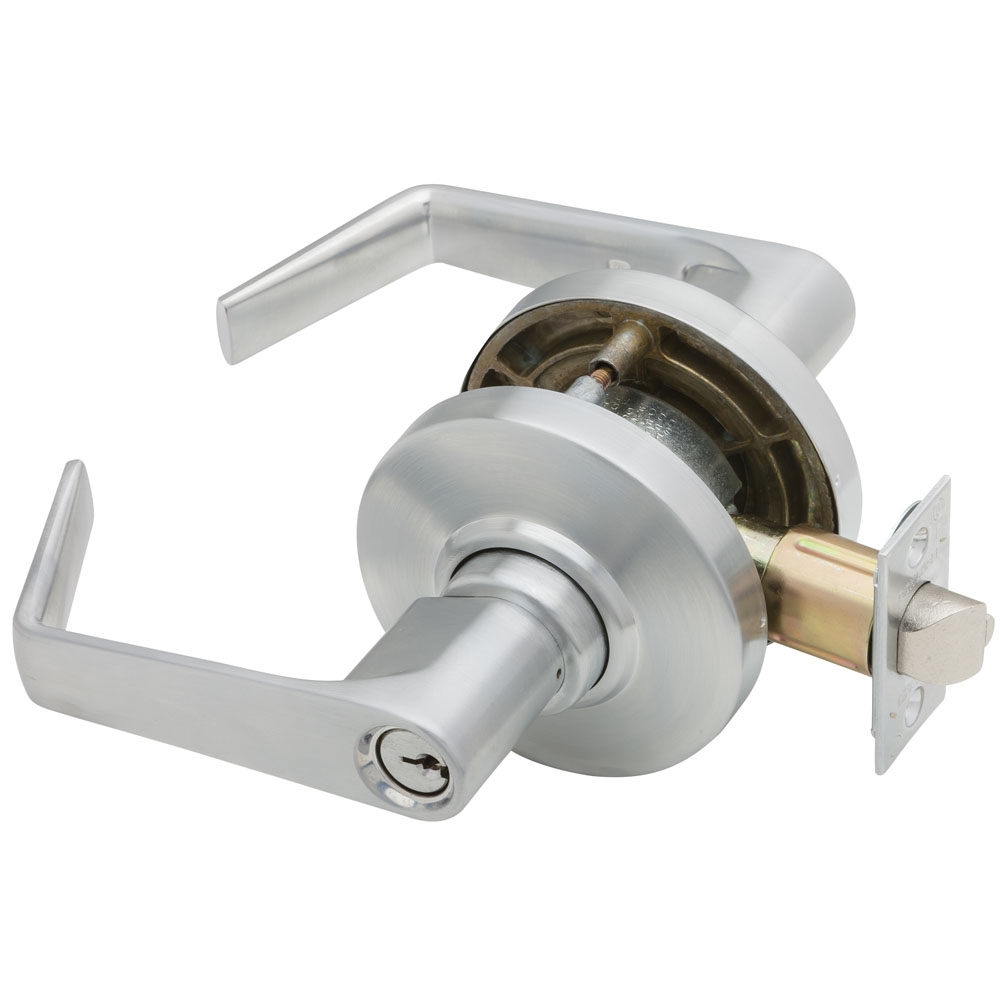

Schlage AL85PD-SAT-626 Grade 2, Cylindrical Lock

SKU # SC/AL85PD-SAT-626

Schlage AL85PD-SAT-626 Grade 2, Cylindrical Lock

"C" Keyway Standard

Cylinder Schlage Large Format LFIC, IC core is Not Included

Grade Standard duty
Function Entrance Function:
- Pushing in and turning the push button on the inside lever locks the outside lever thereby making a key necessary to unlock it until the push button is manually unlocked
- When the push button is pushed in only, a key is necessary to unlock the outside lever until the inside lever is rotated
- Inside lever is always free
- ANSI 109

This item has been discontinued by the manufacturer, please contact our Security Hardware Experts to learn about alternative brands and products we can offer you.

Contact us to review your product needs!

Call us @ 800-676-7670 Chat with US Contact Us via email
US$232.10
Comments or instructions

Description:

Description:

Schlage AL85PD-SAT-626 Grade 2, Cylindrical Lock

Faculty Restroom Lock - Outside Lever Fixed, Entrance by Key Only, Push Button Inside Lever with Visual Occupancy Indicator
Handing: Non-handed.
ANSI/BHMA Certified A156.2
Door Thickness: 1 3/8” to 1 7/8” (35 mm to 48 mm) standard. 2” (51 mm) optional.
Backset: 2 3/4” (70 mm) standard. 2 3/8” (60 mm), 3 3/4” (95 mm) and 5” (127 mm) optional.
1-3/8" to 1-7/8" Door Range
Front: Steel. 2 1/4” x 1 1/8” square corner, beveled, for 2 3/4” backset standard. Optional 1” square corner, 1” radius corner, and non-UL drive-in / round face. For availability with specific backsets.
UL Listed for 3 Hour Fire Door

Commercial Grade 2
Lock Chassis: Steel, zinc dichromated for corrosion resistance
Latch Bolt: Brass, chrome plated, 1/2” throw, deadlocking on keyed and exterior functions.
Exposed Trim: Wrought brass and bronze. Levers are pressure cast zinc, plated to match finish symbols.
Strike: ANSI curved lip strike 4 7/8” x 1 1/4” x 1 1/4” lip to center standard. Optional strikes, lip lengths and ANSI wrought strike box available.
Cylinder & Keys: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock.
Keying Options: Interchangeable core and Primus® high security cylinders. Master keying, grand master keying, and construction keying.
Warranty: Three-year limited.
