Neptune Lever Trim - AL-Series Levers by Schlage Commercial
Dependable performance for high traffic commercial applications.
At Schlage we know that every product you specify has to stand up to constant use, while meeting your needs for security at every level. Our AL-Series locks are designed to deliver ADA compliant accessibility and constant, reliable performance. The AL-Series is best for buildings with medium to high traffic flow, such as interior office doors, banks, retail spaces and hotel guest areas. With a Grade 2 ANSI rating, and styles and finishes to suit your building's design, the AL-Series fits right where you need it.
We don't compromise on security.

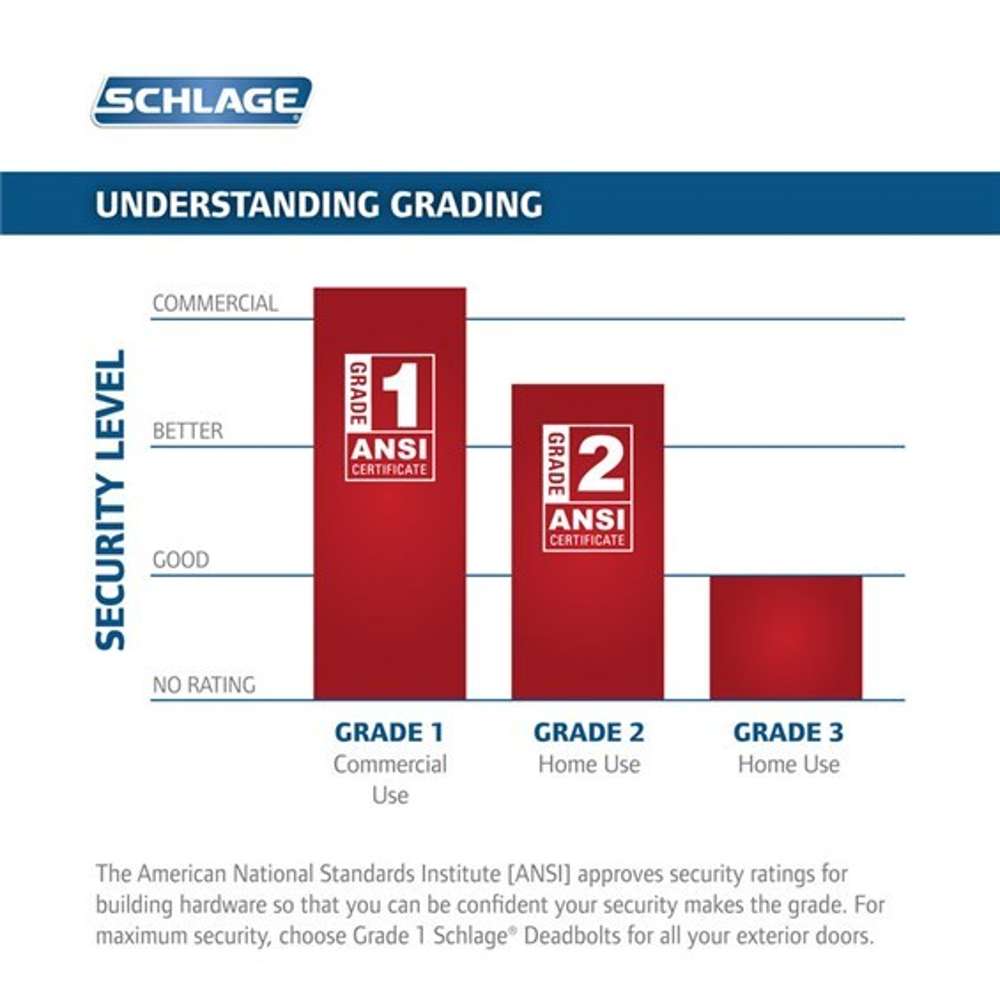

The safety and security of your buildings is something we take very seriously. That's why every Schlage lock and deadbolt undergoes intensive testing to determine its ANSI grade level:
- Cycle tests - Warped door tests
- Resistance tests - Bolt strength tests
- Door impact tests
Features and Benefits
- Cold rolled steel, and machined and threaded hubs prevent loosening of the lockset by bolting the chassis to the door.
- Large diameter of mounting plate and rose covers new ANSI hollow metal door cutout.
- Patented door range adjuster allows quick and easy adjustment for doors ranging from 1-3/8 to 1-7/8 (35mm to 48mm) thick.
Door Handing
The Schlage Commercial AL-Series Levers are reversible.
ADA-Compliant Products
In compliance with the American National Standard Institute (ANSI A117.1) and the Americans with Disabilites Act (ADA), Schlage Lock Company offers a wide selection of locks designed for the needs of the physically challenged. This act is designed to provide protection for people with disabilites.
The intent of ADA is that owners of certain types of buildings must remove barriers and provide people with disabilities with access equal to, or similar to, that available to the general public.
Function: The Schlage AL-Series Levers are available in Passage (AL10S), Privacy (AL40S), Entry/Office (AL50D), Keyed Entry (AL53D), Classroom (AL70D), Storeroom (AL80D), and Single Dummy (AL170D) function.
Finish: The Schlage AL-Series Levers come in Brass (605), Oil Rubbed Bronze (613), and Satin Chrome (626) finish.
Lever Design: The Schlage AL-Series Levers come in Neptune (NEP) design.
Cylinder Options: All Entry/Office (AL50LD), Entrance (AL53LD), Classroom (AL70LD), and Storeroom (AL80LD) functions are sold Less Cylinder; see Companion Items above for all Cylinder & Keying options.
All Schlage AL-Series Locks come standard with Square Corner 2-3/4 Backset Latch (Spring Latch 11-116; Deadlatch 11-096) and Square Corner Strike (10-025).
If you require 2-3/8 Backset (Spring Latch 11-068; Deadlatch 11-085) please order from our Latches Section.
If you require Round Corner Strikes (10-004) please order from our Door Strikes Section.
Door Range: 1-3/8 - 1-7/8 (35mm - 48mm).
Latch: 1-1/8 x 2-1/4, Square Corner Faceplate, 1 housing diameter, 1/2 throw.
Strike: 1-1/4 x 4-7/8, ANSI, Square Corner, No Box (10-025).
Backset: Standard 2-3/4 Backset (Spring Latch 11-116; Deadlatch 11-096).
Certification: ANSI/BHMA Certified A156.2-2011, Series 4000, Grade 2, UL Listed for 3-hour fire door.
Special Order Information: For pricing on any function or finish of the Schlage Commerical AL-Series Levers not found on this page please contact Taylor Security direct via e-mail (sales@taylorsecurity.com) or call us toll-free at 1-800-676-7670.
