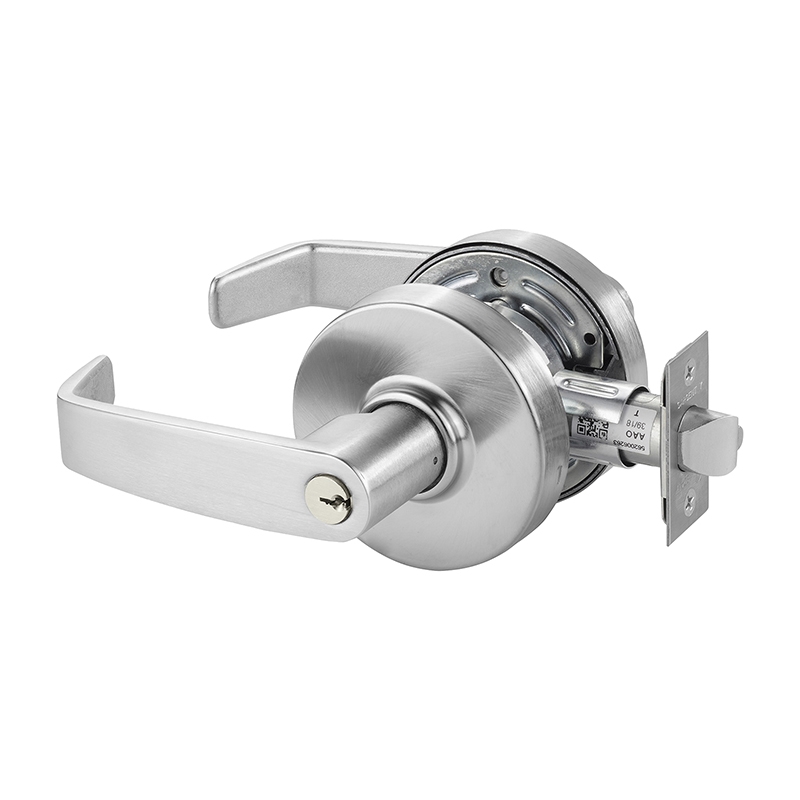

Sargent 2860-7G04-LL-26D Storeroom, Cylindrical Lever Lock

Sargent 2860-7G04-LL-26D Storeroom, Cylindrical Lever Lock

For Doors: 1-3/4" (44mm) Thick Door standard Specify 1- for 1-3/8" (35mm) Thick Door

Backset: 2-3/4" (70mm) Backset standard. Specify 20- for 2-3/8" (60mm) Backset

Cylindrical Housing: Steel, zinc dichromate finish

Front: Wrought brass or stainless steel; Standard — 2-1/4" (57mm) x 1-1/8" (29mm), with 2-3/4" (70mm) backset Specify 20- for 2-1/4" (57mm) x 1" (25mm), with 2-3/8" (60mm) backset

Strike: Wrought brass or stainless steel 2-3/4" Curved Lip Strike standard 4-7/8" Curved Lip (28-) and 2-1/4" Full Lip (14-) Strikes Optional

Hand: Non-handed — B, L, P lever designs Handed — G and Y Coastal Series lever designs

Latch: Brass 1/2" (13mm) throw

Keys: Two, nickel silver

Cylinder: Brass, 6-pin, LA keyway standard Can be master keyed or grand master keyed

Finishes: 03, 04, 09, 10, 10B, 10BE, 10BL 14, 15, 20D, 26 & 26D

Door Prep: ANSI A115.2; Specify 20- for 160 Prep

The Sargent 2860-7G04-LL-26D Storeroom, Cylindrical Lever Lock a Storeroom, Cylindrical Lever Lock.  The SARGENT 7 Line is the best overall lock in the Grade 2 class.
A key-in-lever lock designed for standard duty commercial interior and exterior applications in public buildings, medical offices, hotels/motels and government facilities. Exceeds ANSI/BHMA A156.2 standards for cycling and durability.
