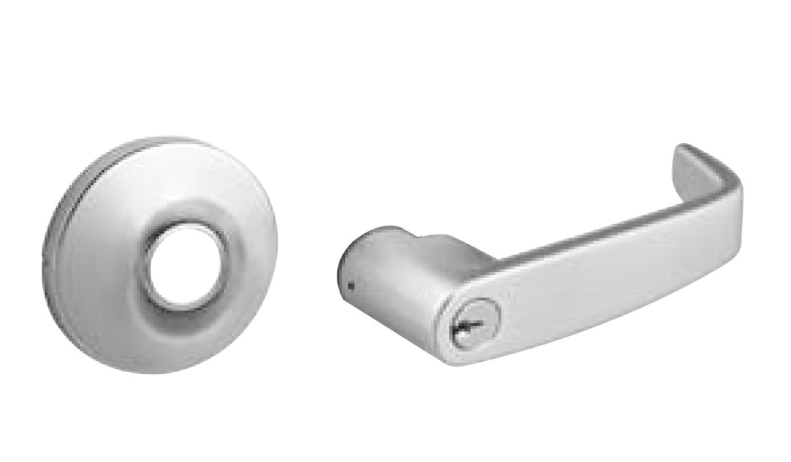

Sargent 2860-10G71-24V-LL-26D Electrified Cylindrical Lock

SKU # SA/2860-10G71-24V-LL-26D

Read Review(s) | Log in to Review

The Sargent 2860-10G71-24V-LL-26D Electrified Cylindrical Lock is an Electrified Cylindrical Lever Lock. The SARGENT® 10 Line is a heavy duty cylindrical key-in-lever handle lockset exceeds by nine times the ANSI 156.2 Series 4000 Grade 1 standards, at over 9 million cycles. As for abusive force, this lock endures more than 1.5 times the standard without allowing entry. The 10 line trim is designed to conform to national and state fire and handicapped requirements.

Features include:
  • Cylindrical Lever Lock for the 10 Line
  • 60 - Large format IC core - less core
  • 28 - Curved Lip Strike (#808)
  • 71 Electromechanical (Fail Secure) Function
  • 10G71: Power off, locks outside lever
  • Deadlocking latch
  • Key retracts latch
  • Inside lever always allows egress
  • Voltage requirements: 24VDC
  • 250mA at 24VDC
  • Provided with ElectroLynx 8-Pin Connector
  • Rose Design L
  • Lever Design L
  • All levers conform to ADA requirement for barrier-free accessibility
  • Satin Chrome 26D
US$858.27

Description:

Description:

Sargent 2860-10G71-24V-LL-26D Electrified Cylindrical Lock

10 LineCylindrical Lever Lock

Enduring more than 1.5 times the industry standard of abusive force, the 10 Line lock is a heavy-duty key-in-lever handle lockset that also exceeds the ANSI/BHMA 156.2 Series 4000 Grade 1 standards by nine times, at over 9 million cycles. And in addition to preventing unwanted entry, the 10 Line is designed to conform to national and state fire and handicapped requirements.

Features:

Features:

The Sargent 2860-10G71-24V-LL-26D Electrified Cylindrical Lock is an Electrified Cylindrical Lever Lock. The SARGENT® 10 Line is a heavy duty cylindrical key-in-lever handle lockset exceeds by nine times the ANSI 156.2 Series 4000 Grade 1 standards, at over 9 million cycles. As for abusive force, this lock endures more than 1.5 times the standard without allowing entry. The 10 line trim is designed to conform to national and state fire and handicapped requirements.

Features include:
  • Cylindrical Lever Lock for the 10 Line
  • 60 - Large format IC core - less core
  • 28 - Curved Lip Strike (#808)
  • 71 Electromechanical (Fail Secure) Function
  • 10G71: Power off, locks outside lever
  • Deadlocking latch
  • Key retracts latch
  • Inside lever always allows egress
  • Voltage requirements: 24VDC
  • 250mA at 24VDC
  • Provided with ElectroLynx 8-Pin Connector
  • Rose Design L
  • Lever Design L
  • All levers conform to ADA requirement for barrier-free accessibility
  • Satin Chrome 26D

Specifications:

Specifications:

Click Here for Sargent 10X Data Sheet

Literature:

Literature:

Click Here for Sargent Turboship Catalog
