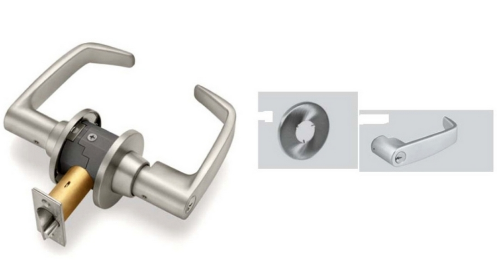

Sargent 28-11U15-LL-26D Passage, Cylindrical Lever Lock
SARGENT designed the 11 Line to meet the needs of the most demanding facilities. The unique T-Zone construction easily exceeds ANSI/BHMA Grade 1 requirements for torque and cycle testing, ensuring reliability in abusive applications. For resilience and ease of management, a single lock body serves all functions. Durable, flexible, reliable – this is a lock that lasts the life of your facility.
- Durable and Reliable: Independently-verified cycle testing proves the 11 Line will last the lifetime of the facility. No through bolts or surface screws to be installed improperly or forgotten; T-Zone construction prevents the lock from twisting
- Flexible: Integrates with numerous key systems and utilizes one lockbody for multiple functions, simplifying facility maintenance
- Lower Cost of Ownership: Fewer inventoried parts combined with a high number of opening cycles results in less time and frequency for maintenance and reduced overall expenses
- Safe and Secure: Torque resistant construction provides ability to withstand tough environments to keep occupants and property safe and secure
- Sustainable: Contributes to your sustainability efforts - fewer lock replacements due to long life and high post-consumer recycled content
- Healthy Environment: Microshield® coating available; supplements your cleaning protocol for a healthier environment
Specifications
- ANSI/BHMA Code: A156.2
- ANSI/BHMA Series: Series 4000
- Backset Depth (Standard): 2 3/4"
- Cylinder Format: Large Format, Small Format, Conventional
- Cylinder Pins: 6 pin, 7 pin
- Cylinder Type: Component
- Door Thickness (Standard): 1 3/4"
- Grade: Grade 1
- Handing: Non-handed
- Latchbolt Throw: 1/2"
- Maximum Backset: 5"
- Minimum Backset: 2 3/4"
- Maximum Door Thickness: 2 1/2"
- Minimum Door Thickness: 1 3/4"
- Number of Keys: 2
- Strike Type (Standard): T-Strike Curved Lip
- UL Listed: Yes
- ULC Listed: Yes
- Warranty: 10-year limited warranty
