Sargent Commercial 10-Line Grade 1 Cylindrical Lever Locks

SKU # SA/10U15-US26D-P

"Grade 1 Cylindrical Lever Locks"

Brass (605) or Satin Chrome (626).
B Design (LB),L Design (LL), P Design (LP), or J Design (LJ).
Note:Sold Less Cylinder. For matching Cylinders see "Companion Items" below.

Delivery:All Sargent 10-Line Grade 1 Leversets are factory-ordered, please allow 1-2 week lead time.




Sargent Commercial 10-Line Grade 1 Cylindrical Lever Locks

Sargent Commercial 10-Line Grade 1 Cylindrical Lever Locks

10-Line Series Levers by Sargent Commercial

Exceeds Standards - Time After Time.
The 10 Line far exceeds ANSI/BHMA Grade 1 requirements for cycle-life (eight hundred thousand cycles) by more than five times - over 4,000,000 cycles - beating the closest competitor by 30%. That strength and staying power offers security for any high-use application.

As for abusive force testing, the 10 Line can endure more than two times the standard without allowing entry.

Installation As Easy As 1-2-3.
The new 10 Line design can be installed in one minute or less with fewer parts and assembly steps. The packaging includes a three step installation diagram that is clear and simple to follow, making installation diagram that is clear and simple to follow, making installation as easy as 1-2-3!

Features and Benefits
- Installs in less than one minute.
- Exceeds Grade 1 Standards.
- Thousands of functions, finish and design combinations for virtually any application.
- Multiple through bolt positions adapt to any door prep.
- Manufactured with pride in New Haven, CT.

Door Handing
The Sargent Commercial 10-Line Series Levers are reversible.

Looks As Good As It Feels
With tighter tolerances on the levers and rose assemblies, the 10 Line quickly sets itself apart from other brands. The lever's one-piece cast construction provides for a solid, stable grip. At the same time, the new slim rose design makes this lock aesthetically pleasing.

Function: The Sargent 10-Line Series Levers are available in Passage (10U15), Privacy (10U65), Entry/Office (10G05), Classroom (10G37), Storeroom (10G04), and Single Dummy (10U93) function.
Finish: The Sargent 10-Line Series Levers come in Brass (605) and Satin Chrome (626) finish.
Lever Design: The Sargent 10-Line Series Levers come in B Design (B), L Design (L), P Design (P), and J Design (J).

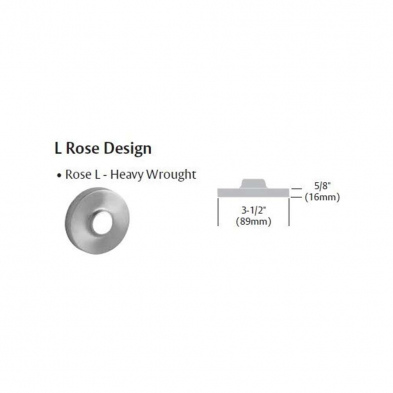

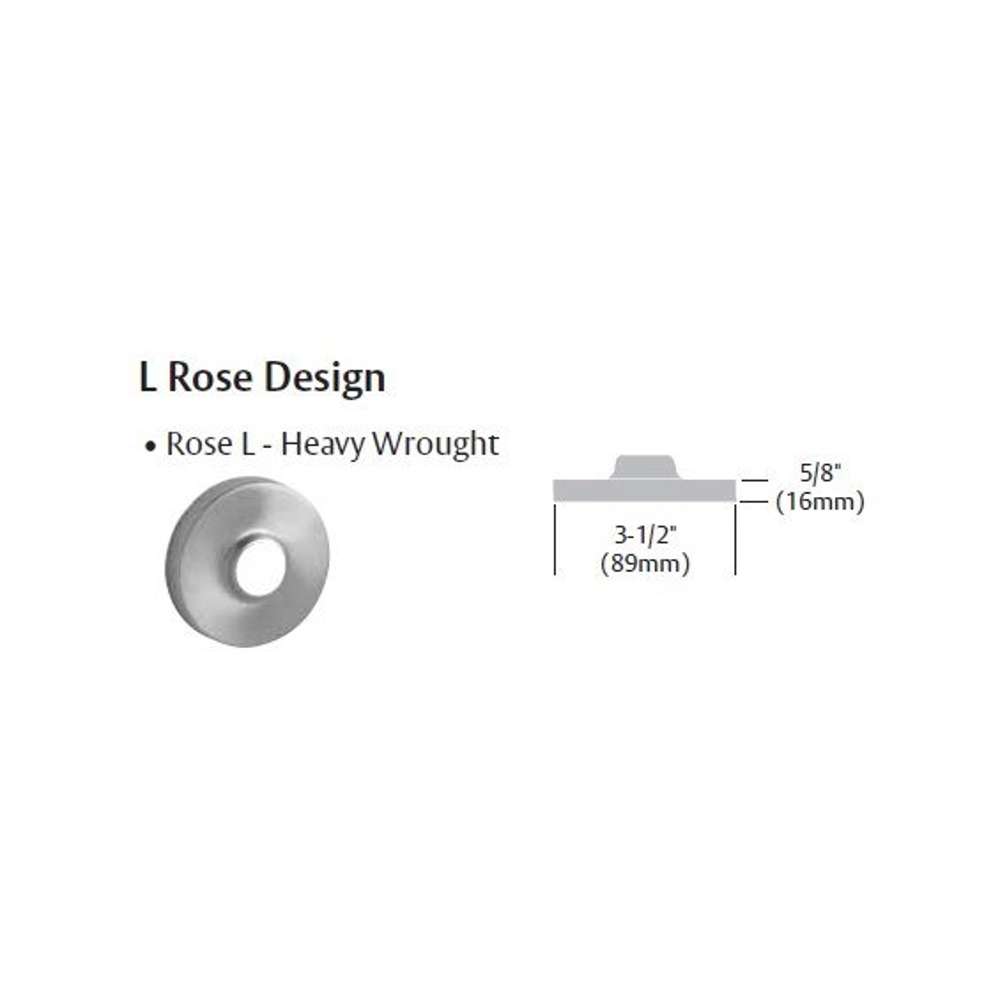

Rose Design: The Sargent 10-Line Series Levers come in L Rose (L) Design.

Cylinder Options: All Entry/Office (10G05), Classroom (10G37), and Storeroom (10G04) functions are sold Less Cylinder; see "Companion Items" above for all Cylinder & Keying options.

Door Range: 1-3/4" - 2" (44mm - 51mm).
Backset: Standard 2-3/4" backset.
Strike: Curved lip 800 supplied standard.

Latchbolt: Standard 1/2" throw.
Certification: Certified ANSI A156.2 Series 4000 - Grade 1.

Special Order Information: For pricing on any function or finish of the Sargent Commerical 10-Line Levers not found on this page please contact Taylor Security direct via e-mail ( or call us toll-free at 1-800-676-7670.
