LockeyUSA M230 Series Keyless Deadlocking Spring Latch

SKU # LYM230

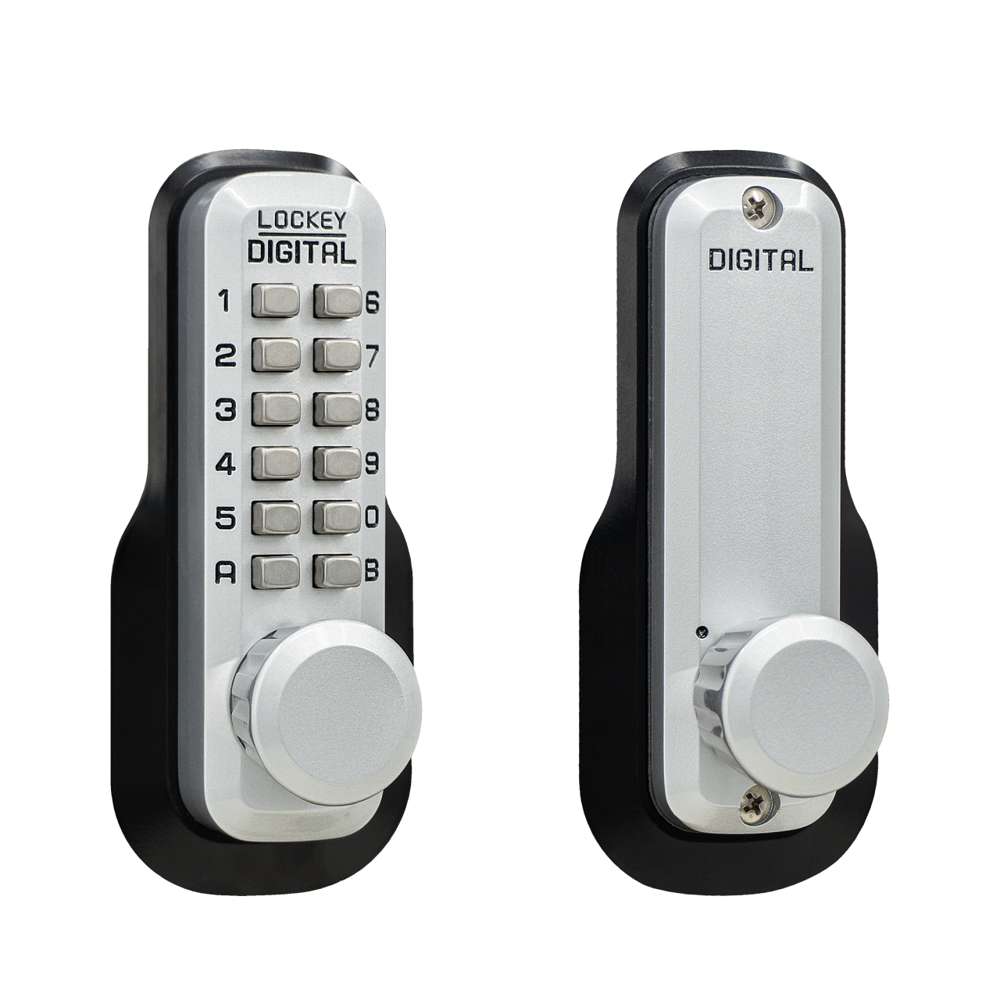

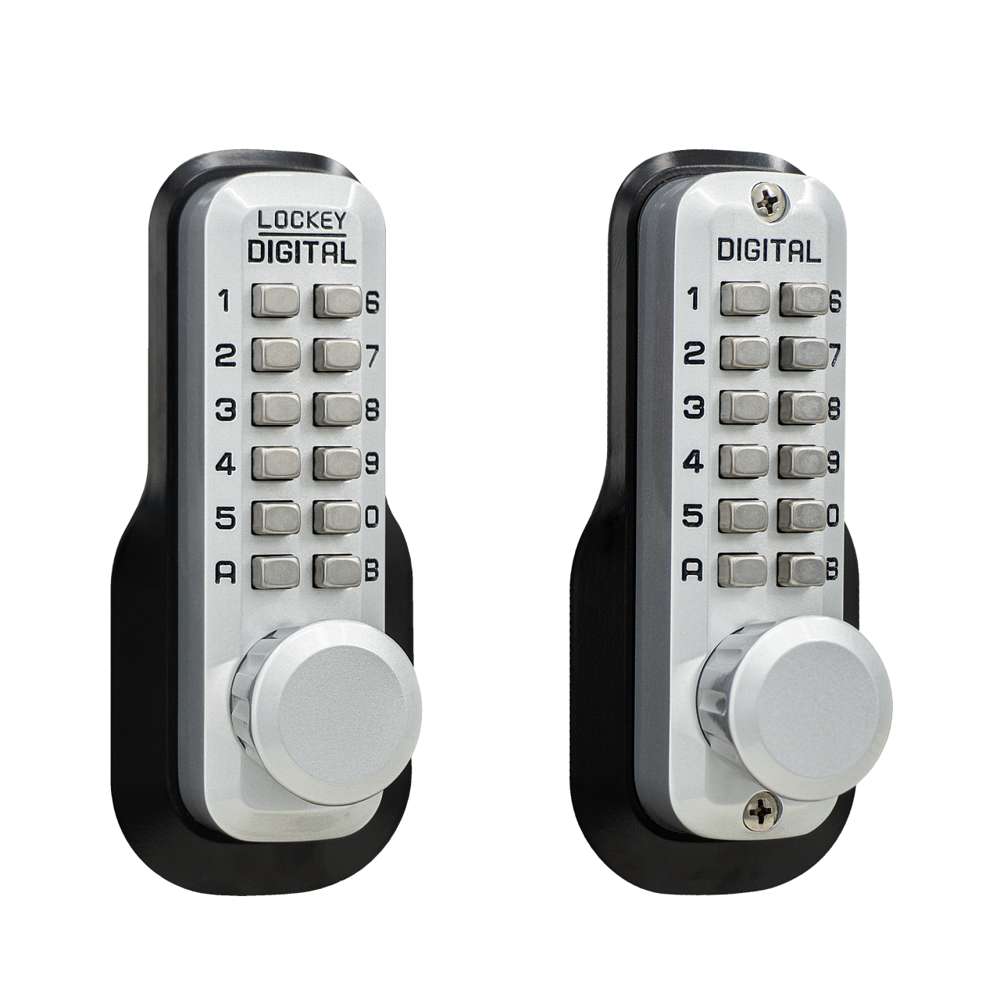

The LockeyUSA M230 is a mechanical keyless deadlock spring latch, with single or double combination. These are the main features:

  • Mechanical, keyless deadlocking spring latch lock;
  • Auto-locking;
  • One User Code (changeable);
  • Knob on interior and exterior;
  • Covers 2 1/8" prep hole;


Delivery: The LockeyUSA M230 Keyless Deadlocking Spring Latch is factory-ordered, please allow 3-7 business days' lead time.





Available Finishes: Antique Brass (AB), Bright Brass (BB), Jet Black Marine Grade (JBMG), Oil Rubbed Bronze (OIL), Satin Chrome Marine Grade (SCMG), Satin Nickel (SN), White (WH).


Dimensions & Specs:

  • Outside body dimensions: 5” l x 1 1/4” W x 1 7/8” D;
  • Inside body dimensions: 5” l x 1 1/4” w x 1 1/4”D;
  • Throw: 3/8", door thickness: 1 3/16” to 2”;
  • Fits doors from 1/8" thick and up with thin door kit (sold separately);
  • Fits Doors up to 5" thick with extension kit (sold separately);
  • Material: zinc-plated steel with teflon coated stainless, steel interior components, for exterior & interior use.


Compatible with: LockeyUSA GB200M.
