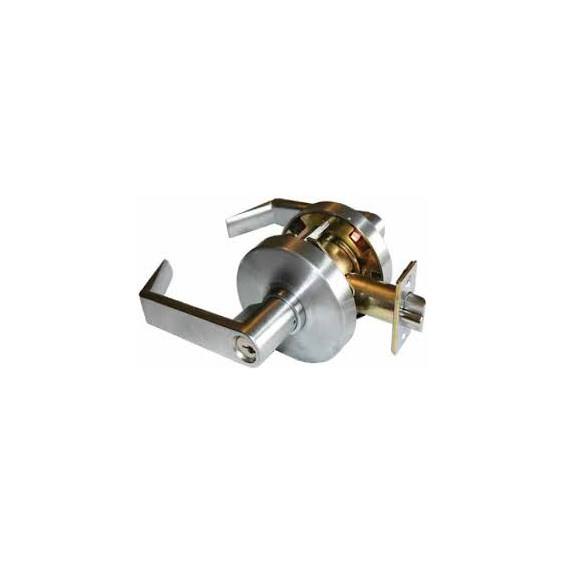

Global Door DL-LSV53-26D Satin Chrome Saturn Entrance Lever
DL-LSV Series Levers by Trans-Atlantic
The DL-LSV Series cylindrical leversets are designed for use on standard Grade 2 commercial applications. The LSV Saturn Style is ADA compliant.
Function: The DL-LSV Series Lever is available in Passage (DL-LSV10), Privacy (DL-LSV40), Entrance (DL-LSV53), Classroom (DL-LSV70), Storeroom (DL-LSV80), and Dummy (DL-LSVDT) function.
Lever Design: The DL-LSV Series Lever is available in Saturn style lever.
Finish: The DL-LSV Series Lever comes in Satin Chrome (626) finish.
Handing: The DL-LSV Series Lever is a non-handed (reversible) lever.
Door Range: 1-3/4" - 2".
Backset: Standard 2-3/4" backset.

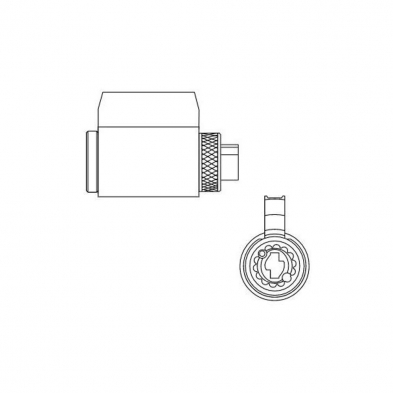

Cylinder: Schlage "C" keyway.
Keying: Schlage 6-pin keyed.
Key: 2 six pin Nickel Plated.
Latch: 1/2" projection Stainless Steel. Face: 1-1/8" x 2-1/4" (Optional 3 hour UL Rated).
Bore: 2-1/8" hole retrofits all cylindrical locksets. Fits 161 Prep doors.
Thru-bolted: Removable Thru-Bolts.
Strike: ANSI 1-1/4" x 4-7/8" strike.
Certification: UL listed ANSI A156.2 Grade 2.
