Emtek 8261 Brass Crystal Series Grade 2 Handleset

SKU # EM8261

The Emtek 8261 Brass Crystal Series Windsor Crystal Grade 2 Knobset

- Select Finish: See Finish Swabs below.

- Select Backset: Regular, Rope, Lancaster, Ribbon & Reed, #8, Oval, Rectangular, Quincy, Wilshire, Modern, Disk, Square, Neos, Modern Rectangular, or Urban Modern.

- Select Body: Knob ir Kever

- Select Hand: Left hand, Right Hand, or Non-Handed.

- Select Lever: See dropdown below.
- Delivery: All Emtek products are made-to-order, please allow 8-10 working days' lead time.
- Expedited Delivery: See below for Emtek Expedited Delivery information.


Delivery: The Emtek 8261 Brass Crystal Series Windsor Crystal Grade 2 Knobset is in stock, please allow 3-7 business days' lead time.




Emtek 8261 Brass Crystal Series Grade 2 Handleset

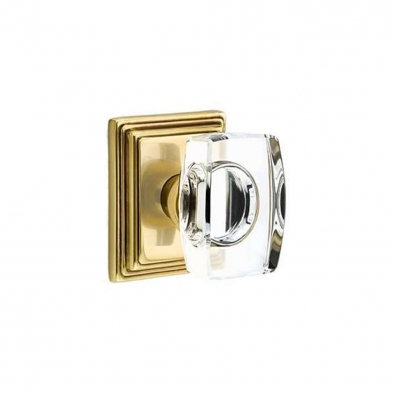

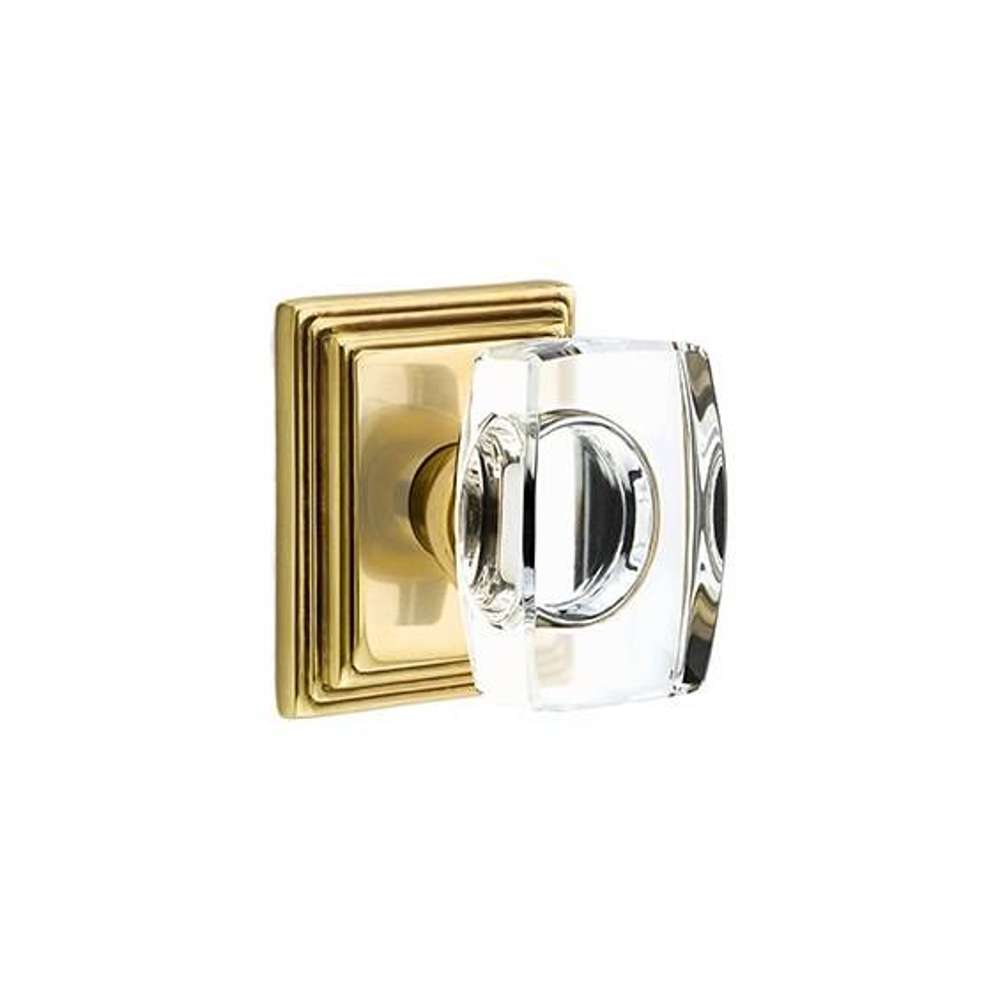

The Emtek Windsor Crystal is a rugged and beautifully crafted knobset using traditional American latches complete with a variety of trim styles, handcrafted from authentic materials. The knobset is operated by a knob from both the interior and exterior.

The Crystal Collection's knob / lever handles are supported by springs mounted behind the rosettes and sideplates, which return the handles back to the rest position and prevent lever sag. The latches are heavy-duty die case construction, with strong internal springs, solid brass nose bolts, and sintered metal cams. A plastic bushing located in the joint between the handle and the rosette ensures a friction-free wear surface, preventing metal from bearing on metal and providing smooth, long-lasting operation. Handles are positvely connected to rosettes with a permanent clip. Each has a set screw which eliminates "handle wobble" when tightened. Emtek's threaded tubes are machined brass to ensure good threads and prevent corrosion.
Finish: The Emtek Windsor Crystal Knob comes in Polished Brass-Lifetime (US3), Satin Brass (US4), French Antique (US7), Oil Rubbed Bronze (US10B), Polished Nickel (US14), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), and Polished Chrome (US26) finish.

Backset: All Emtek locksets come standard with 2-3/8" backset and Square Corner Latch (Face: 2-1/4" x 1").
Strike: All Emtek locksets come standard with Square Corner Strikes (2-1/4" x 1-1/2").

The 28° Latch is available as an optional upgrade without the CF Mechanism. These latches are available for all our current brass, bronze, and wrought steel privacy, passage, and platesets. The 28° latches are an ergonomic alternative to standard latches, shortening the rotation required to turn the knob or lever.

Unlacquered Brass (US3NL): Unlacquered Brass Finish is available as an optional upgrade for an additional $30.00 per knobset.

Expedited Delivery: Emtek will expedite orders that are shipped UPS-Blue (2-Day) or UPS-Red (Overnight). Expedited orders are moved to the front of the factory's processing line and ship direct with 1-or 2-day delivery. Please allow 1-2 days processing time on all expedited orders depending on current factory workload.
