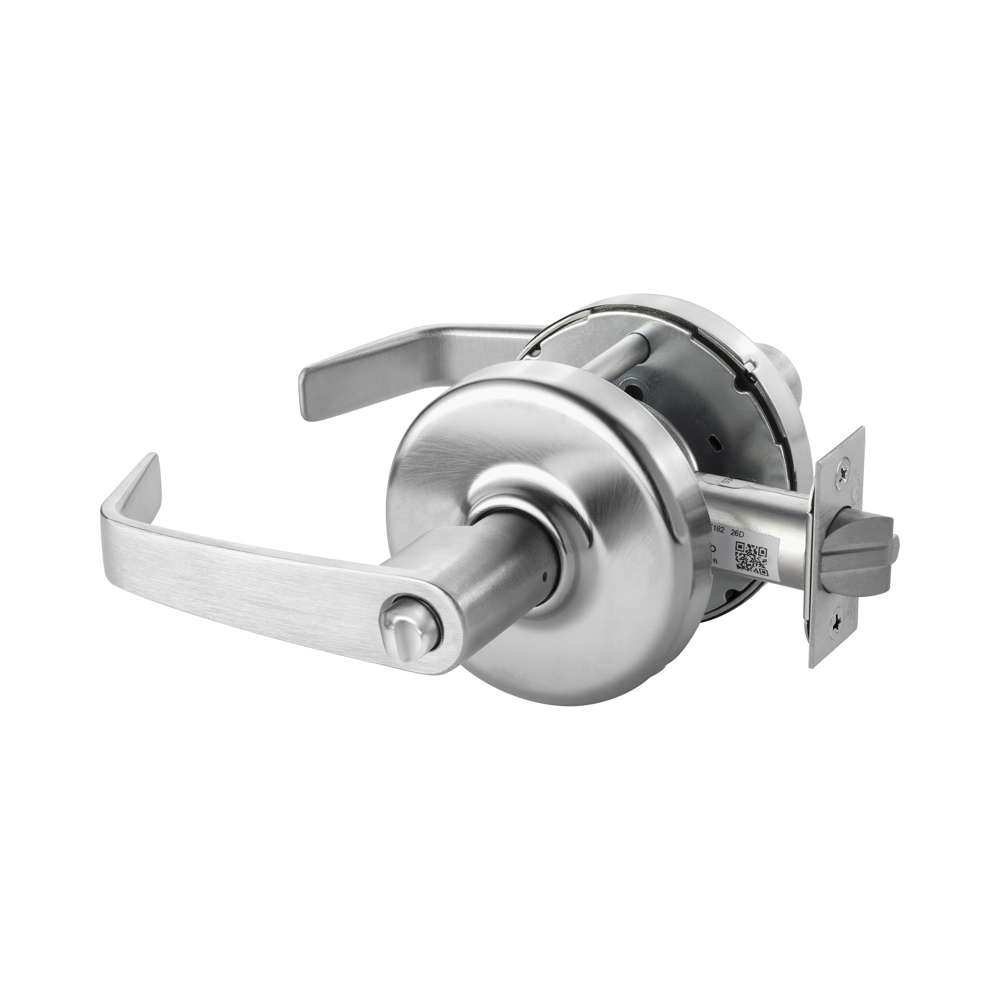

Corbin Russwin CLX3351-NZD-626 Entrance Lever
Corbin Russwin CLX3351-NZD-626 Entrance Lockset
This ANSI/BHMA Grade 1 CL3300 Series lockset provides the safety and security you expect, with the added benefit of a pleasing design. Plus, our out-of-the-box and onto-the-door user-friendly packaging makes installation as easy as A-B-C.Finishes.
The CLX3300 Series ANSI/BHMA Grade 1 cylindrical lock is the perfect blend of elegance and strength, designed for high-traffic areas where both aesthetics and security are paramount. Crafted from premium materials for exceptional durability and reliability, it offers a wide range of industry-standard finishes and decorative levers to complement any décor.
The CLX3300 Series now features visual status indicators, ideal for sensitive environments such as restrooms, classrooms, and more. These indicators provide at-a-glance confirmation of a door's locked or unlocked status, enhancing security and user peace of mind.
Specifications
- ANSI/BHMA Code: A156.2
- ANSI/BHMA Series: Series 4000
- Backset Depth (Standard): 2 3/4"
- Cylinder Format: Large Format, Small Format, Conventional
- Cylinder Pins: 6 pin, 7 pin
- Door Thickness (Standard): 1 3/4"
- Handing: Non-handed
- Latchbolt Throw: 1/2"
- Maximum Backset: 5"
- Maximum Door Thickness: 2 1/4"
- Minimum Backset: 2 3/8"
- Minimum Door Thickness: 1 3/8"
- Number of Keys: 2
- Strike Type (Standard): ANSI Curved Lip
- UL Listed: Yes
- ULC Listed: Yes
- Warranty: 10-year limited warranty
Certifications
- Environmental Product Declaration (EPD)
- CSFM - California State Fire Marshal Approved (old)
- Florida Building Code Approved FL# 3067
- UL listed and UL10c compliant
- Americans with Disabilities Act (ADA) Compliant
- UL-cUL Listed for use on fire doors having a rating up to and including 3-hours
- NFPA 80 Compliant
- Florida Building Code Windstorm Certified
- UL 437 listed when using Access 3 and Pyramid high-security UL 437 cylinders
- ANSI/BHMA A156.2, Series 4000, Grade 1
