RCI Faceplate 04 Option B4707-32D-B4707-10B (4 & 7 Series)

RCI Faceplate 04 Option B4707-32D-B4707-10B (4 & 7 Series)

The 7 series centerline strikes accommodate 5/8” latch projections with various faceplate options to match most frame types. The RCI 7 series centerline strikes are compatible with a large range of door thicknesses from 1-3/8”-2-3/8”. These strikes function effectively with aluminum, cylindrical, centerline mortise locks, & exit devices. The RCI 7 series allows installers to adjust the strike pivot horizontally up to 1/8” for precise alignment.

• Energy: 280mA 11-16VAC, 12VDC, 24VACVDC (At 12VDC)
• Strength: 500lbf Static 70ft-lb Dynamic
• Endurance: 250,000 Cycles
• Mode: Available In Fail-Secure & Fail-Safe

The B4707 07-Option Faceplate is part of RCI

- Finish: Brushed Stainless Steel (32D).

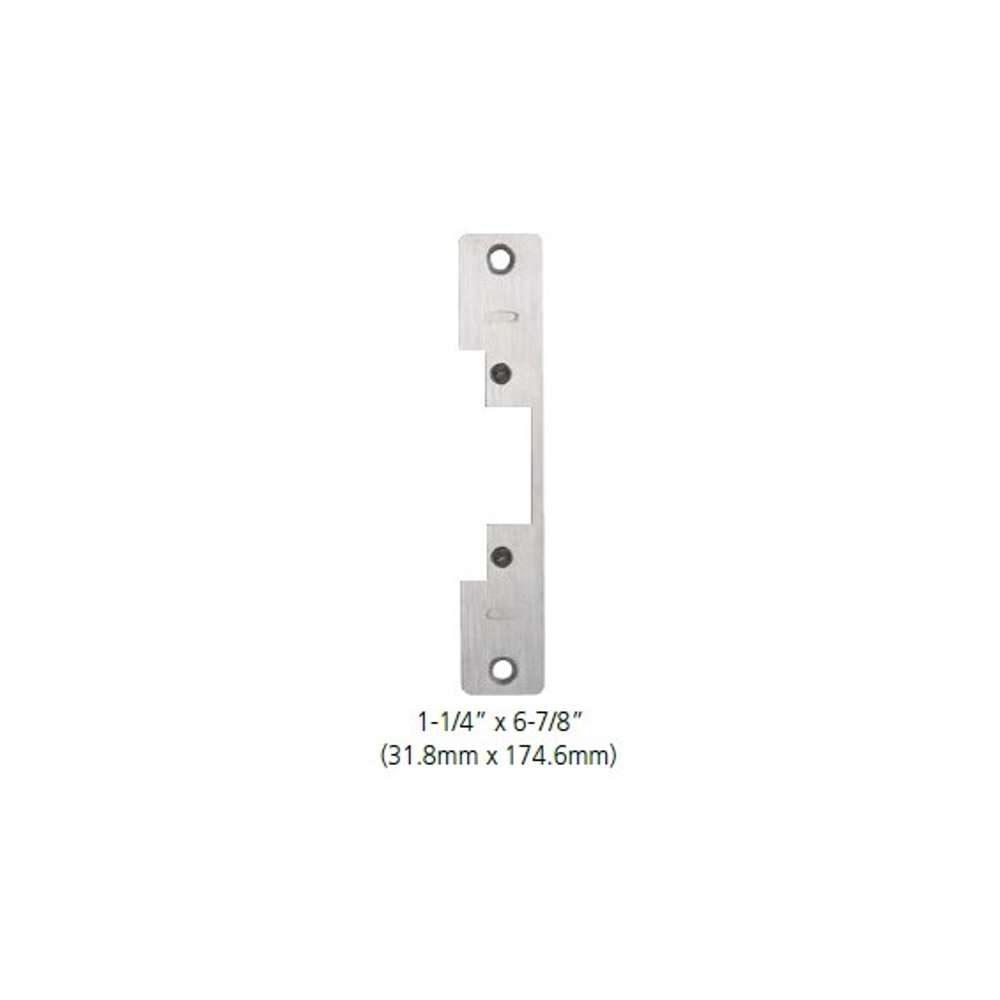

• RCI B4707 Faceplate Only, 1-1/4" x 6-7/8", Round Corners, For 4 and 7 Series Electric Strikes, Satin Stainless Steel
• For Use With: 4 and 7 Series Electric Strikes
• Faceplate Size: 1-1/4"W x 6-7/8"H (32mm x 175mm), Radius Corners
