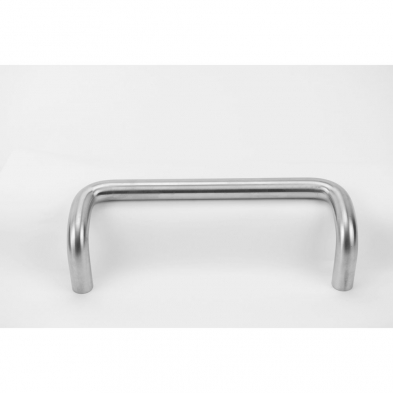

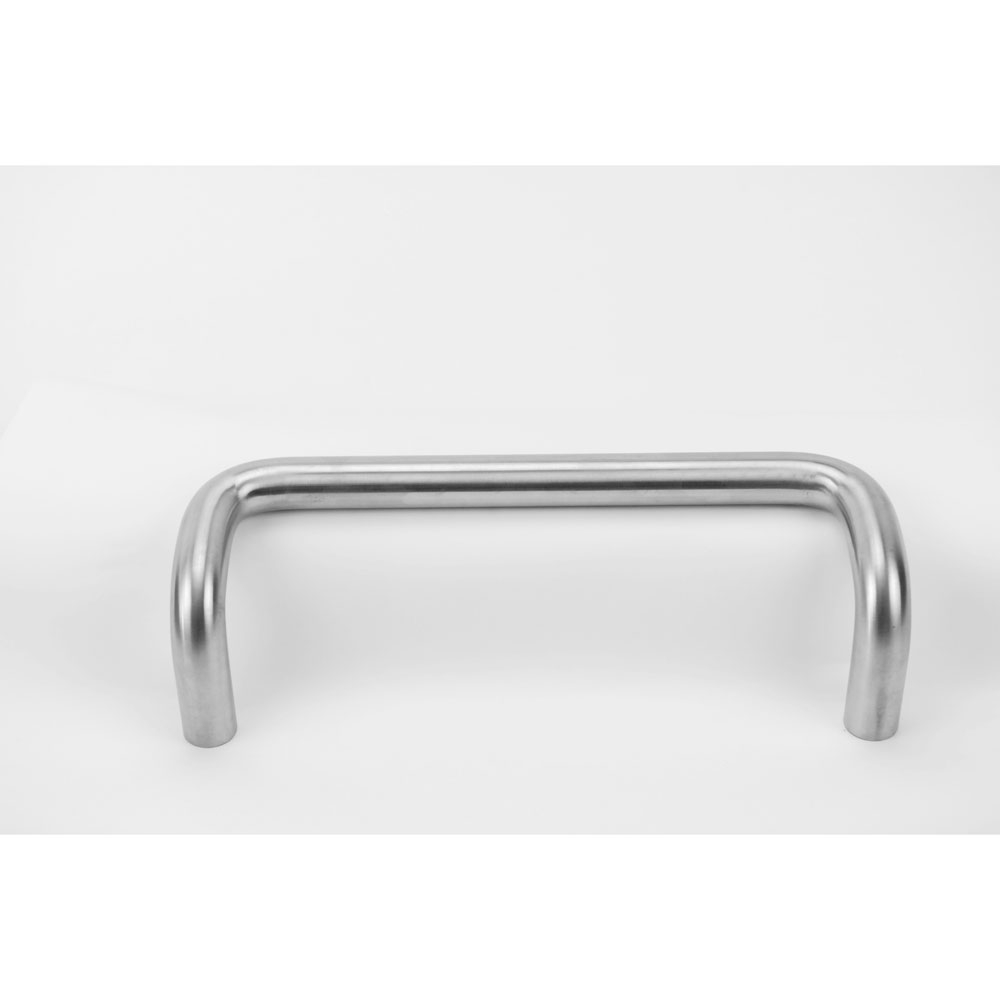

Don-Jo 1158-628 Offset Door Pull

Don Jo 1158-628 Offset Door Pull

• Door handles, pulls, latches, locks, and operating devices must be designed for easy use with one hand, requiring no tight grasping, pinching, or wrist twisting
• Lever-operated mechanisms, push-type mechanisms, and U-shaped handles are considered acceptable designs for accessible doors
• For sliding doors, the operating hardware must remain exposed and usable from both sides when the door is fully open
• The hardware required for accessible door passage must be mounted at a maximum height of 48" (1220 mm) above the finished floor
• All components must ensure easy accessibility to meet design requirements for users with disabilities

Product Features:

• Satin Aluminum Finish
• Solid bar stock material
• Dimensions: 13 x 3.50 x 2.50"
• Size center-to-center (ctc): 12"
• Diameter: 1"
• Overall: 13"
• Projection: 3 1/2"
• Clearance: 2 1/2"
• Offset: 90 degree
• ANSI J402 approved door hardware
• 3/8-24 x 2 1/2" MS fastener
• One year limited manufacturer's warranty
