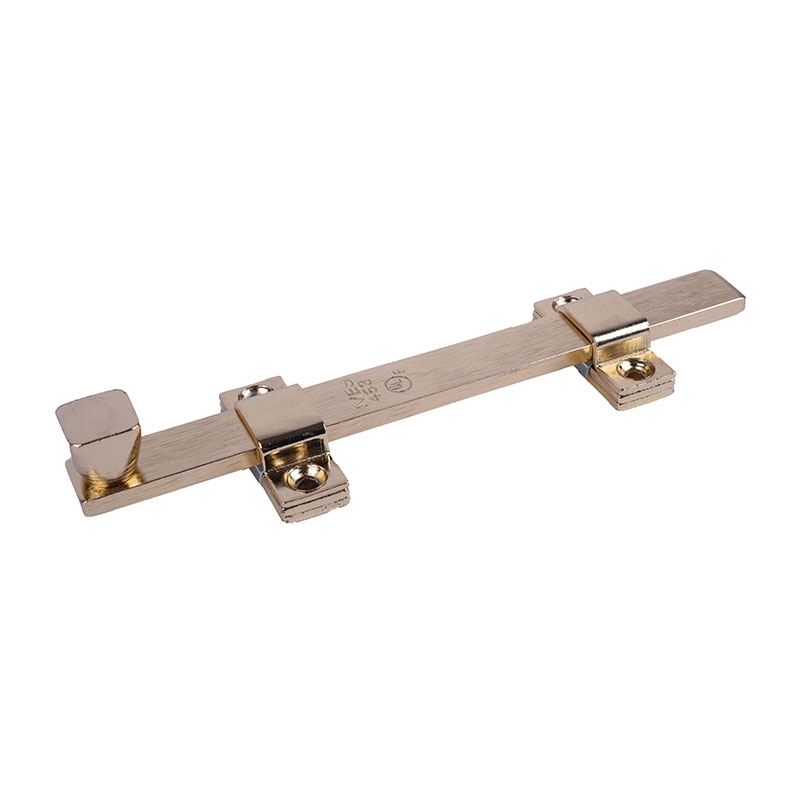

Ives-Glynn Johnson SB453-8-TB-US3 Surface Bolt, 8"

Ives-Glynn Johnson SB453-8-TB-US3 Surface Bolt, 8"

The Ives Surface Bolt 8" SB453 has a 1-3/16" throw.  The bar has a cross section measurement of 3/4" wide by 1/4" thick.  It features a strong tension springs to prevent the bolt from creeping.  The bolt is shipped with all of the fasteners and a universal top and a standard mortise strike.  It is constructed of heavy duty steel that is then cadmium plated.

Constructed of heavy duty steel.

Certifications:

• Meets ANSI/BHMA A156.16 L84161
• UL listed 3 hour fire door, up to 10'0"

The Ives-Glynn Johnson SB453-8-TB-US3 Surface Bolt, 8" is an 8 inch Surface Bolt.

Features include:

• Bright Brass finish on steel
• Surface bolt has 1-3/16" throw for maximum security
• Strong tension springs prevent creep
• Ideal for all types of doors
• Units packed with standard wood screws and machine screws to meet most field conditions
• Units packed with both a universal top strike (US) and a mortise bottom strike (MS)
• Meets ANSI/BHMA A156.16, L84161; UL listed for 3 hour fire doors, up to 10'0"
• Bar: 3/4" wide x 1/4" thick
• Overall width: 2-1/32"
• Overall projection: 1-5/16"
• Top Strike: 1-1/2" wide x 1-1/2" long x 3/16" thick
• Bottom strike: 1-5/8" wide x 3-1/2" long x 1/8" thick
