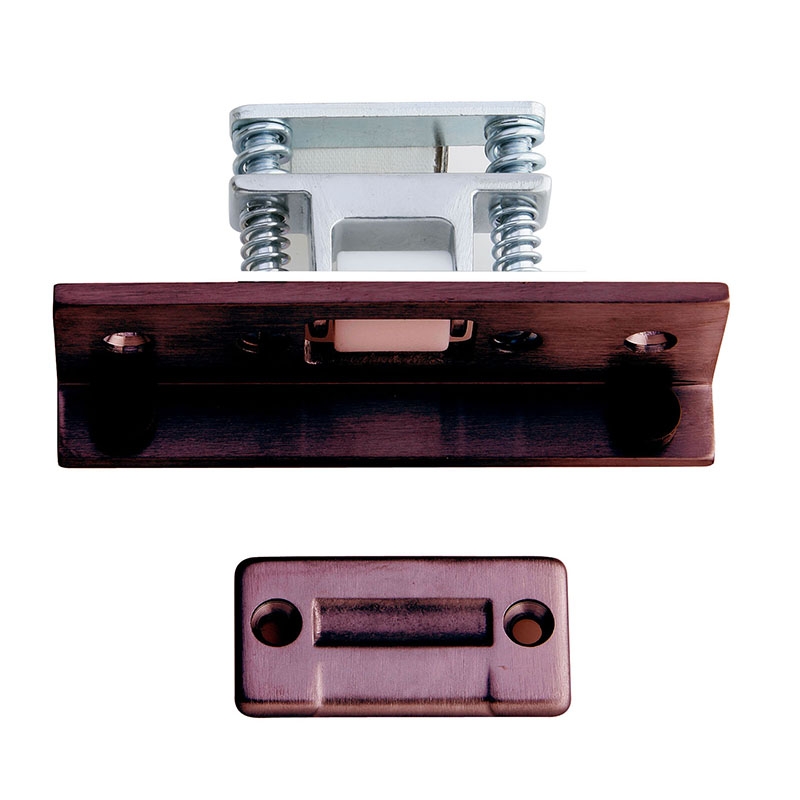

Ives-Glynn Johnson RL1152-US10B Combination Roller Latch

SKU # IV/RL1152-10B

The Ives-Glynn Johnson RL1152-US10B Combination Roller Latch is a Combination Roller Latch.

Features include:

  • Oil rubbed bronze finish on Forged brass construction
  • Recommended for higher traffic applications
  • Combination of RL30 Roller Latch and Angle Stop
  • Actuation is simple, closing of the door causes the roller to fall in the depression of the strike, hereby holding the door closed
  • The projection of the roller is easily adjustable using adjusting screws on the face of the unit
  • Maximum projection of the roller is 3/8" allowing for variance in the door clearance
  • Nylon roller standard
  • Units packed with wood screws
  • Meets ANSI/BHMA A156.16, E19111
  • Body: 1-1/2" wide x 4-1/2" high x 1-3/4" deep with 3/4" angle
  • Strike: 1-1/8" wide x 2-1/4" high x 5/32" thick
US$153.90

Description:

Description:

Ives-Glynn Johnson RL1152-US10B Combination Roller Latch

Ives has multiple roller latches and catches that assure a door will stay closed when not in use. These accessories will not keep a door secure and are not meant for security applications; they only help keep a door closed. Ives also offers a variety of surface bolts and door guards to provide an additional security level.

Various latches, catches, and bolts cover multiple applications
Available in brass, steel, and aluminum
Latches, catches, and bolts come in multiple finishes
Meet ANSI/BHMA A156.9 and A156.16
Some models are UL-listed for fire door applications
SB360 is also rated for hurricane and tornado applications

  • Miami Dade County NOA listed
  • Florida Building Commission listed
  • FEMA 361 and 320 are listed

Surface bolts:

  • Mounted to the door surface
  • Provide an extra security on the inactive leaf of a pair of double doors
  • Industrial heavy-duty surface bolts and decorative, or Dutch, door bolts provide aesthetics for doorways that are less abused

Door guards:

  • Available with a chain or solid bar
  • Door guards provide an extra layer of security and allow the door to be slightly opened

Angle stop:

  • Designed as an extra level of security
  • The angle stop is mounted to the door and pivots to hug the frame

Latches/catches:

  • Various latches and catches are not designed to keep a door secure, but hold light interior doors shut

Features:

Features:

The Ives-Glynn Johnson RL1152-US10B Combination Roller Latch is a Combination Roller Latch.

Features include:

  • Oil rubbed bronze finish on Forged brass construction
  • Recommended for higher traffic applications
  • Combination of RL30 Roller Latch and Angle Stop
  • Actuation is simple, closing of the door causes the roller to fall in the depression of the strike, hereby holding the door closed
  • The projection of the roller is easily adjustable using adjusting screws on the face of the unit
  • Maximum projection of the roller is 3/8" allowing for variance in the door clearance
  • Nylon roller standard
  • Units packed with wood screws
  • Meets ANSI/BHMA A156.16, E19111
  • Body: 1-1/2" wide x 4-1/2" high x 1-3/4" deep with 3/4" angle
  • Strike: 1-1/8" wide x 2-1/4" high x 5/32" thick
