Ives-Glynn Johnson FB51P-12-MD-US32D Flush Bolts

Ives-Glynn Johnson FB51P-12-MD-US32D Flush Bolts

Certifications

• Meets ANSI A156.3 Type 27
• Fits standard ANSI A115.4 door frame preparations
• UL Listed 3 Hour fire doors 8’0" X 8’0"

Available in both automatic and manual styles
Designs for both hollow metal and wood door applications
A variety of bolt throw lengths and bolt diameters to meet many application needs
Flush bolts are non-handed for easy installation
Meet ANSI/BHMA A156.3
UL Listed for fire door applications

Flush bolts provide a secure opening by latching the inactive door. Designs include the offerings below. For more specific models within each offering, see the Ives Full Line catalog.

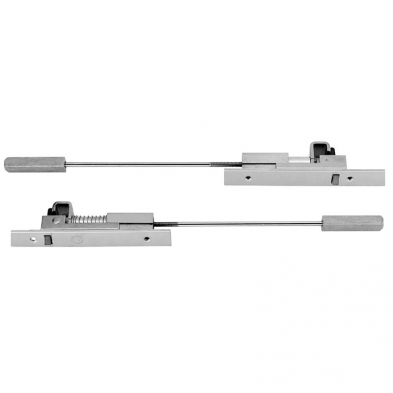

Automatic flush bolt: Fully automatic flush bolts ensure the inactive door is latched and bolts are extended when the active door closes. The inactive door is unlatched and the bolts retract when the active door is opened.
Constant latching flush bolt: Constant latching flush bolts ensure the inactive door remains latched until the active door is opened, releasing the automatic bottom bolt and then the top bolt can be manually released. The inactive door will re-latch automatically when the door closes.
Manual flush bolt: Manual flush bolts must be extended and retracted manually, depending on when the inactive leaf needs to be secured or opened.

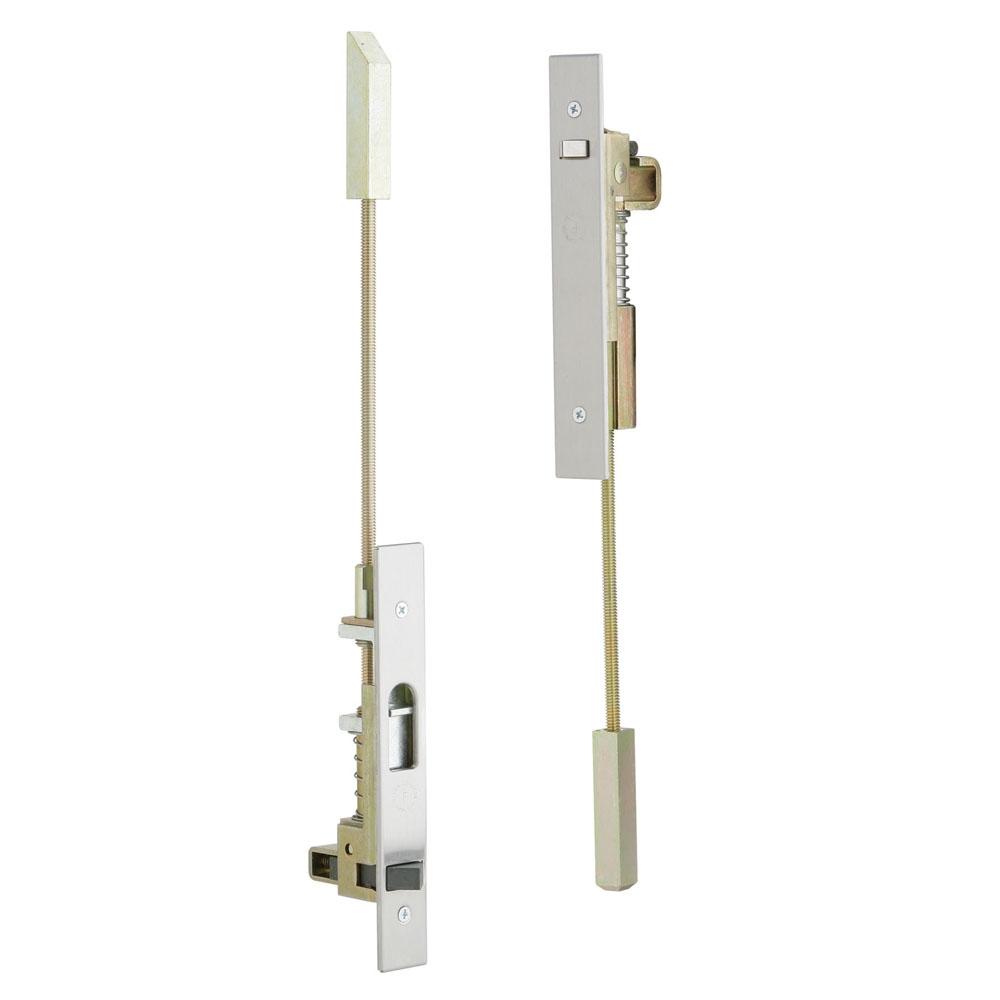

The Ives-Glynn Johnson FB51P-12-MD-US32D Flush Bolts is a pair of top and bottom 12 inch Flushbolts for Metal Doors.

Features include:

• Satin stainless steel finish over Stainless steel Substrate US32D
• Top and bottom bolts (pair).
• For use with metal doors only
• Constant latching—inactive door remains latched until the active door is opened, releasing the automatic bottom bolt and then the top bolt can be manually released. Inactive door will relatch automatically when closed.
• Low actuation forces
• Non-handed.
• Bolt throw is 3/4" with a 7/8" vertical adjustment.
• Bolt backset is 3/4"
• Rod length is 12", which is measured from the center of the flush bolt body to the bolt tip
• Body size (Width X Length X Depth)  1" x 6-3/4" x 2"
• Guide size (Width X Length X Height X Thickness)  1" x 1-27/32" x 11/16" x 3/32"
• Strike size (Width X Length X Thickness)  15/16" x 2-1/4" x 1/16"
• Rub plate size (Width X Length X Thickness)  1-1/4" x 1-11/16" x 3/64"
• Meets ANSI A156.3 Type 27
• Fits standard ANSI A115.4 door frame preparations.
• UL Listed 3 Hour fire doors 8’0" X 8’0"
• Mounting
  • 8-32 X 3/8" UFPHMS
  • 10-12 X1-1/4" Plastic anchor
  • 6-32 X 3/8 FPHMS
  • 6 X 3/4 FPHSMS
  • 8 X 1 FPHSMS
  • 10 X 1 FPHSMS
