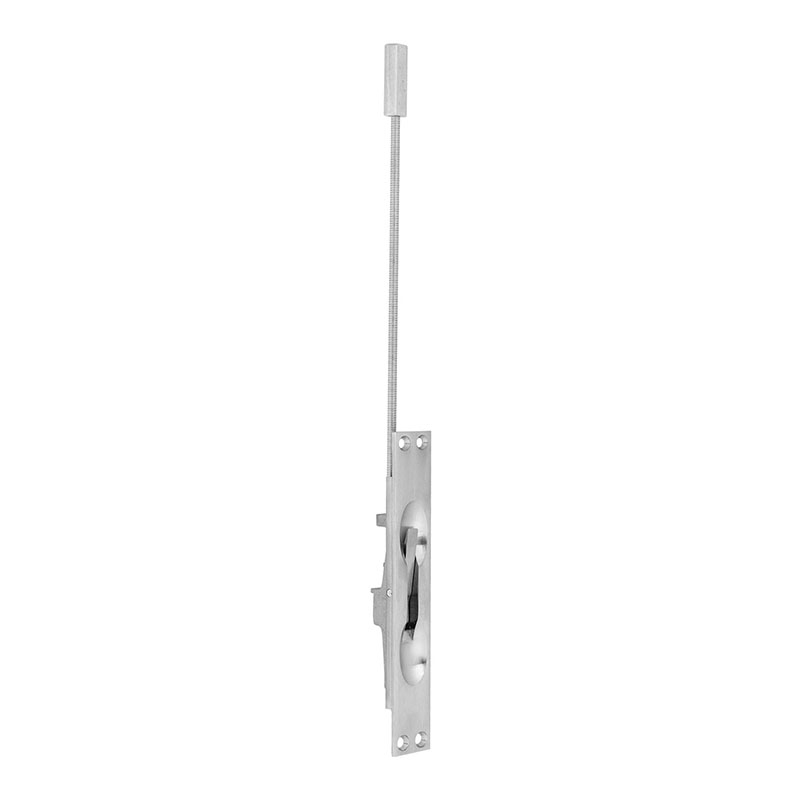

Ives-Glynn Johnson FB458-24-US26D Single Manual Flushbolt

The Ives-Glynn Johnson FB458-24-US26D Single Manual Flushbolt is a Single Manual Flushbolt.

Features include:

• Satin chrome finish over Brass Substrate US26D
• Top or bottom bolts
• When the active door is opened, the lever can be moved to the ‘up’ position, retracting the bolt and allowing the inactive leaf to be opened. When the inactive leaf is closed, the lever can be moved to the ‘down’ position, projecting the bolt into the strike and securely locking the inactive leaf.
• Simplified installation in metal frames. Round bolt head requires only a punched hole. Use of strike optional. Special design of guide and flat sided bolt tip to prevent bolt rotation.
• Non-handed.
• Bolt tip 1/2" diameter
• Bolt throw is 3/4" with a 7/8" vertical adjustment.
• Bolt backset is 3/4"
• Rod length is 24", which is measured from the center of the flush bolt body to the bolt tip
• Body size (Width X Length X Depth)  1-1/4" x 6-3/4" x 1-1/8"
• Guide size (Width X Length X Thickness)  1" x 2" x 5/64"
• Strike size (Width X Length X Thickness)  15/16" x 2-1/4" x 1/16"
• Meets ANSI A156.16, L04261
• Mounting - 8-32 X 1" FPHMS
