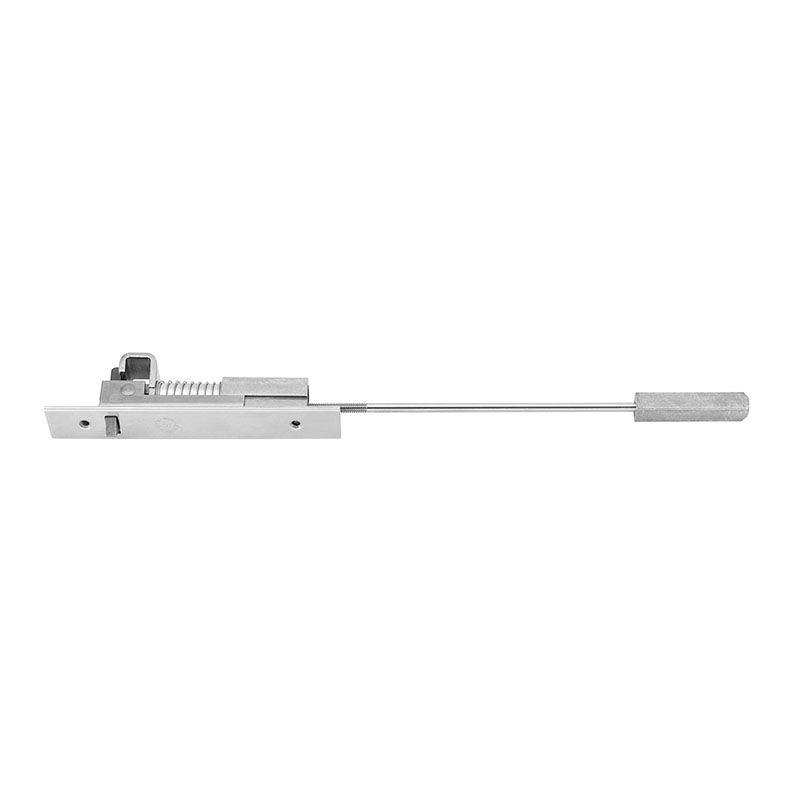

Ives-Glynn Johnson FB31B-12-MD-US32D Automatic Flushbolt

SKU # IV/FB31B-12-MD-32D

The Ives-Glynn Johnson FB31B-12-MD-US32D Automatic Flushbolt is a 12 inch Automatic Flushbolt for Metal Doors.

Features include:

  • Satin stainless steel finish over Stainless steel Substrate US32D
  • FB31B Bottom bolt only
  • For use with metal doors only
  • Fully automatic—inactive door is latched, bolts are extended when active door closes, door is unlatched, bolts retract when active door is opened.
  • Low actuation forces—top bolt has no spring tension.
  • Non-handed.
  • Bolt throw is 3/4" with a 7/8" vertical adjustment.
  • Bolt backset is 3/4"
  • Standard Rod Length is 12", which is measured from the center of the flush bolt body to the bolt tip.
  • Body size (Width X Length X Depth)  1" x 6-3/4" x 2"
  • Guide size (Width X Length X Hieight X Thickness) 1" x 1-27/32" x 27/32" x 3/32"
  • Strike size (Width X Length X Thickness)  15/16" x 2-1/4" x 1/16"
  • Rub plate size (Width X Length X Thickness)  1-1/4" x 1-11/16" x 3/64"
  • Meets ANSI A156.3 Type 25
  • Fits standard ANSI A115.4 door frame preparations.
  • UL Listed 3 Hour fire doors 8’0" X 10’0"
  • Mounting
    • 8-32 X 3/8" UFPHMS
    • 10-12 X1-1/4" Plastic anchor
    • 6-32 X 3/8 FPHMS
    • 6 X 3/4 FPHSMS
    • 8 X 1 FPHSMS
    • 10 X 1 FPHSMS
US$108.50

Description:

Description:

Ives FB31B-12-MD US32D Automatic Flush Bolt - Bottom is engineered for seamless integration into metal doors, ensuring robust security and durability. This automatic flush bolt features a 12-inch rod, providing reliable locking capabilities that are essential for commercial applications. Crafted from high-quality stainless steel with a sleek satin finish (630/US32D), it not only enhances the aesthetic of your door but also withstands the rigors of daily use. Designed specifically for commercial installations, this flush bolt exemplifies Ives' commitment to premium-quality building hardware. The automatic mechanism allows for easy operation, making it an ideal choice for high-traffic areas where convenience and security are paramount. The matte silver finish adds a modern touch, blending seamlessly with various architectural styles. With a commitment to flexibility and value, Ives offers an extensive portfolio of hardware accessories, including hinges, pivots, strikes, and door trim, which complements this flush bolt perfectly.

Features:

Features:

The Ives-Glynn Johnson FB31B-12-MD-US32D Automatic Flushbolt is a 12 inch Automatic Flushbolt for Metal Doors.

Features include:

  • Satin stainless steel finish over Stainless steel Substrate US32D
  • FB31B Bottom bolt only
  • For use with metal doors only
  • Fully automatic—inactive door is latched, bolts are extended when active door closes, door is unlatched, bolts retract when active door is opened.
  • Low actuation forces—top bolt has no spring tension.
  • Non-handed.
  • Bolt throw is 3/4" with a 7/8" vertical adjustment.
  • Bolt backset is 3/4"
  • Standard Rod Length is 12", which is measured from the center of the flush bolt body to the bolt tip.
  • Body size (Width X Length X Depth)  1" x 6-3/4" x 2"
  • Guide size (Width X Length X Hieight X Thickness) 1" x 1-27/32" x 27/32" x 3/32"
  • Strike size (Width X Length X Thickness)  15/16" x 2-1/4" x 1/16"
  • Rub plate size (Width X Length X Thickness)  1-1/4" x 1-11/16" x 3/64"
  • Meets ANSI A156.3 Type 25
  • Fits standard ANSI A115.4 door frame preparations.
  • UL Listed 3 Hour fire doors 8’0" X 10’0"
  • Mounting
    • 8-32 X 3/8" UFPHMS
    • 10-12 X1-1/4" Plastic anchor
    • 6-32 X 3/8 FPHMS
    • 6 X 3/4 FPHSMS
    • 8 X 1 FPHSMS
    • 10 X 1 FPHSMS

Specifications:
