Ives-Glynn Johnson 8302-8-US32D-4X16 Pull Plate

Ives-Glynn Johnson 8302-8-US32D-4X16 Pull Plate

Specifications:

• Material Substrate: Made from aluminum, brass or stainless steel (300 Series)
• Mounting Hardware:
  • Heavy duty mounting hardware exceeds industry standards
  • 5⁄16-18 mounting hardware

Specify door thickness:

• Standard mounting hardware for door thickness of 1 1⁄2" to 1 3⁄4" unless otherwise specified
• Optional package available for 2" and 2 1⁄4" thick doors

Comes standard with through bolt screws and decorative washers.
Optional mounting hardware available (see general information section for details) F, G, I, J, L
Mounting hardware for other door thicknesses are available as engineering special
Standard mounting package: #6 x 5⁄8 Oval head screws
Optional TEK/TORX package: #6 x 5⁄8 Self-drilling, self-tapping screws. #6 x 5⁄8 5⁄8 Torx screws

Widths and heights:

• 3 1⁄2" x 15"
• 4" x 16"
• 6" x 16"

Pull center to center spacing:

• 6"
• 8"
• 10"

Certifications:

• Meets ANSI/BHMA A156.06

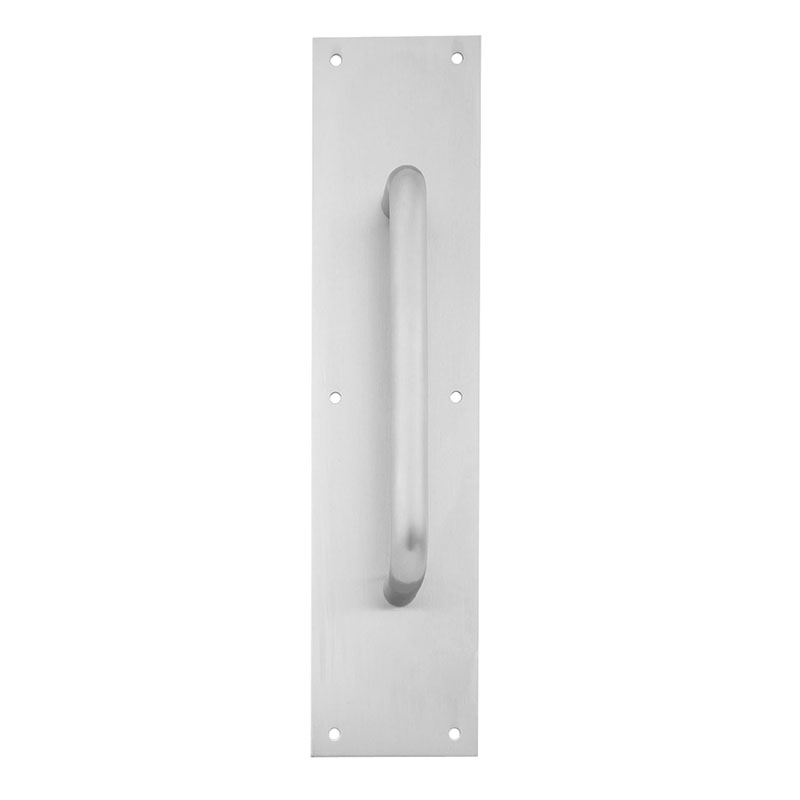

The Ives-Glynn Johnson 8302-8-US32D-4x16 Pull Plate is a 4 inch x 16 inch Pull Plate.

Features include:

• 8300 pull plates are prepped with 2 3/8" holes for pull machining
• 8102 pull included
• Meets ANSI A156.6 for J301 Material
• Standard mounting package   #6X5/8 oval head screws
• 8"  Pull - Center to Center
• Satin Stainless US32D
• 4" X 16"
