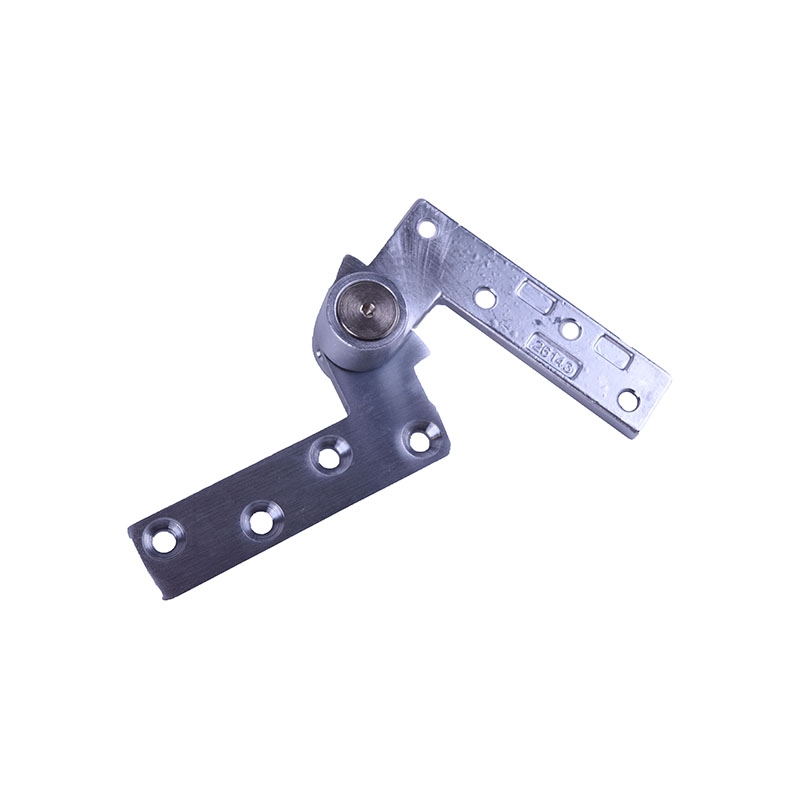

Ives-Glynn Johnson 7212-TOP-US26D Top Pivot, 3/4" Offset

Ives-Glynn Johnson 7212-TOP-US26D Top Pivot, 3/4" Offset

Designed for use with doors at least 1 ¾" thick and featuring a 1/8" bevel in 2", these pivots offer a vertical adjustment range of 3/16" with positive locking to ensure precise alignment. Available in both left-hand (LH) and right-hand (RH) configurations, these pivots are made from high-strength cast brass and come in a variety of finishes to match any architectural design.

Robust Construction & Durability:

Made from high-strength cast brass for maximum durability

Precision bearings ensure smooth and reliable operation

Wide Variety of Options:

Available in a variety of finishes to suit different design aesthetics

Available as a pivot set or intermediate pivot

Available in top header or jamb mounting styles

Enhanced Performance & Flexibility:

Supports doors weighing up to 200 pounds, ideal for heavy-duty - applications

Vertical adjustment range of 3/16" with positive locking for precise door alignment

Handed for both left-hand (LH) and right-hand (RH) installations

The Ives-Glynn Johnson 7212-TOP-US26D Top Pivot, 3/4" Offset  is a  Top Pivot, 3/4" Offset in Satin Chrome. This is a 3/4" offset, top pivot with all exposed parts made of brass for maximum corrosion resistance.

Features include:

• Top Pivot, 3/4" Offset
• Satin Chrome Finish
• 3/4" Offset pivot, 200lb with top header mount
• Maximum door load 200 pounds
• Recommended for use with 1-3/4" minimum door thickness, with 1/8" bevel in 2"
• Vertical adjustment range 3/16", with positive locking
• Handed LH or RH
• 7212 Top, header mount
• Meets ANSI/BHMA A156.4 C07131
• UL Listed, 20 minute fire doors
• Designed for heavy weight doors in high frequency(above 1250 cycles per day) applications.
