RCI 960-MA-28 Switches

SKU # RU/960-MA-28

Read Review(s) | Log in to Review

Narrow, Momentary, Maintained, or Time-Delay Versions

960-MO (Momentary), 960-MA (Maintained), 960-TD (Pneumatic Time Delay), 960N-MO (Narrow, Momentary), 960N-MA (Narrow, Maintained), 960N-TD (Narrow, Pneumatic Time Delay), 96CYL-KD (Cylinder Keyed Different), or 96CYL-KA (Cylinder Keyed Alike).

The 960 tamper resistant keyswitch series is available in momentary (SPDT/DPDT), maintained (SPDT/DPDT), or time-delay (SPDT-double break) operating versions. The keyswitch is a one-piece bracket with two-position switch holder. The RCI 960RO provides a screen-printed reset/override with directional arrows to indicate the simple function of the corresponding switch. The RCI 960 & RCI 960RO are compatible with standard mortise cylinders with straight or clover cams in 1-1/8" or 1-1/4" cylinder lengths (1-1/4" key cylinders available).

  • Quickly mounts to single gang box (Standard) or narrow-stile door frames (960 only)
  • One-piece bracket with two-position switch holder
  • Compatible with standard mortise cylinders with straight or clover cams in 1-1/8" or 1-1/4" cylinder lengths (1-1/4" key cylinders available)
  • Also available with Reset/Override (RO) feature
  • LED lamps and other accessories are also available

US$94.84

Taylor Security ID #: 7571230

Description:

Description:

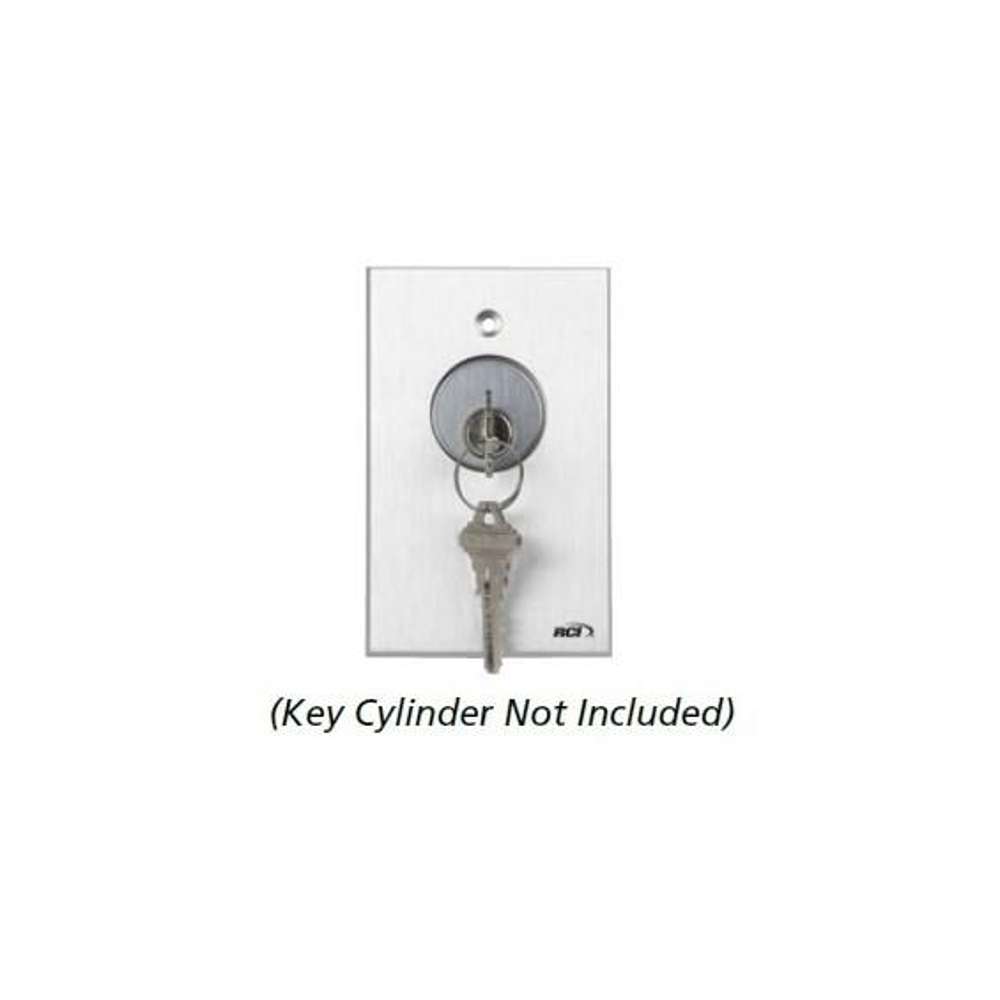

RCI 960-MA-28 Switches

960 Tamper-Resistant Keyswitch

  • Extruded aluminum 1/4" plate with beveled edges for tamper-resistance and durability
  • Momentary (SPDT/DPDT), maintained (SPDT/DPDT) or time-delay (SPDT-double break) switches available
  • Hardware kit includes stainless steel tamper-proof screws and spanner bit
  • Faceplate available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40) finish
  • 3 Year Limited Warranty

960RO Tamper-Resistant Keyswitch with Reset/Override

  • Quickly mounts to single gang box
  • Extruded aluminum 1/4" plate with beveled edges for tamper-resistance and durability
  • One-piece bracket with two-position switch holder
  • Compatible with standard mortise cylinders with straight or clover cams in 1-1/8" or 1-1/4" cylinder lengths (1-1/4" key cylinders available)
  • Momentary (SPDT/DPDT), maintained (SPDT/DPDT)
  • Hardware kit includes stainless steel tamper-proof screws and spanner bit
  • Screen-printed reset/override with directional arrows indicate the function of corresponding switch model
  • Brushed Anodized Aluminum (28)
  • 3 Year Limited Warranty
  • Technical Details

960 Tamper-Resistant Keyswitch

  • Standard: 3"W x 4-3/4"H (76mm x 121mm)
  • Narrow: 1-5/8"W x 4-3/4"H (41mm x 121mm)

960RO Tamper-Resistant Keyswitch with Reset/Override

  • Standard: 3"W x 4-3/4"H (76mm x 121mm)

 Accessories

  • 96-CYLKA - Mortise cylinder, straight cam, keyed alike
  • 96-CYLKD - Mortise cylinder, straight cam, keyed differently

Applications
For commercial, industrial and institutional applications in high use areas:

Vestibules
Storefront
Commercial
Industrial
Health Care

Features:

Features:

Narrow, Momentary, Maintained, or Time-Delay Versions

960-MO (Momentary), 960-MA (Maintained), 960-TD (Pneumatic Time Delay), 960N-MO (Narrow, Momentary), 960N-MA (Narrow, Maintained), 960N-TD (Narrow, Pneumatic Time Delay), 96CYL-KD (Cylinder Keyed Different), or 96CYL-KA (Cylinder Keyed Alike).

The 960 tamper resistant keyswitch series is available in momentary (SPDT/DPDT), maintained (SPDT/DPDT), or time-delay (SPDT-double break) operating versions. The keyswitch is a one-piece bracket with two-position switch holder. The RCI 960RO provides a screen-printed reset/override with directional arrows to indicate the simple function of the corresponding switch. The RCI 960 & RCI 960RO are compatible with standard mortise cylinders with straight or clover cams in 1-1/8" or 1-1/4" cylinder lengths (1-1/4" key cylinders available).

  • Quickly mounts to single gang box (Standard) or narrow-stile door frames (960 only)
  • One-piece bracket with two-position switch holder
  • Compatible with standard mortise cylinders with straight or clover cams in 1-1/8" or 1-1/4" cylinder lengths (1-1/4" key cylinders available)
  • Also available with Reset/Override (RO) feature
  • LED lamps and other accessories are also available

Specifications:

Specifications:

Click Here for RCI Electromagnetic Accessory Product Sheet

Literature:

Literature:

Click Here for Rutherford Controls Product Catalog

Product Videos:

Product Videos:
