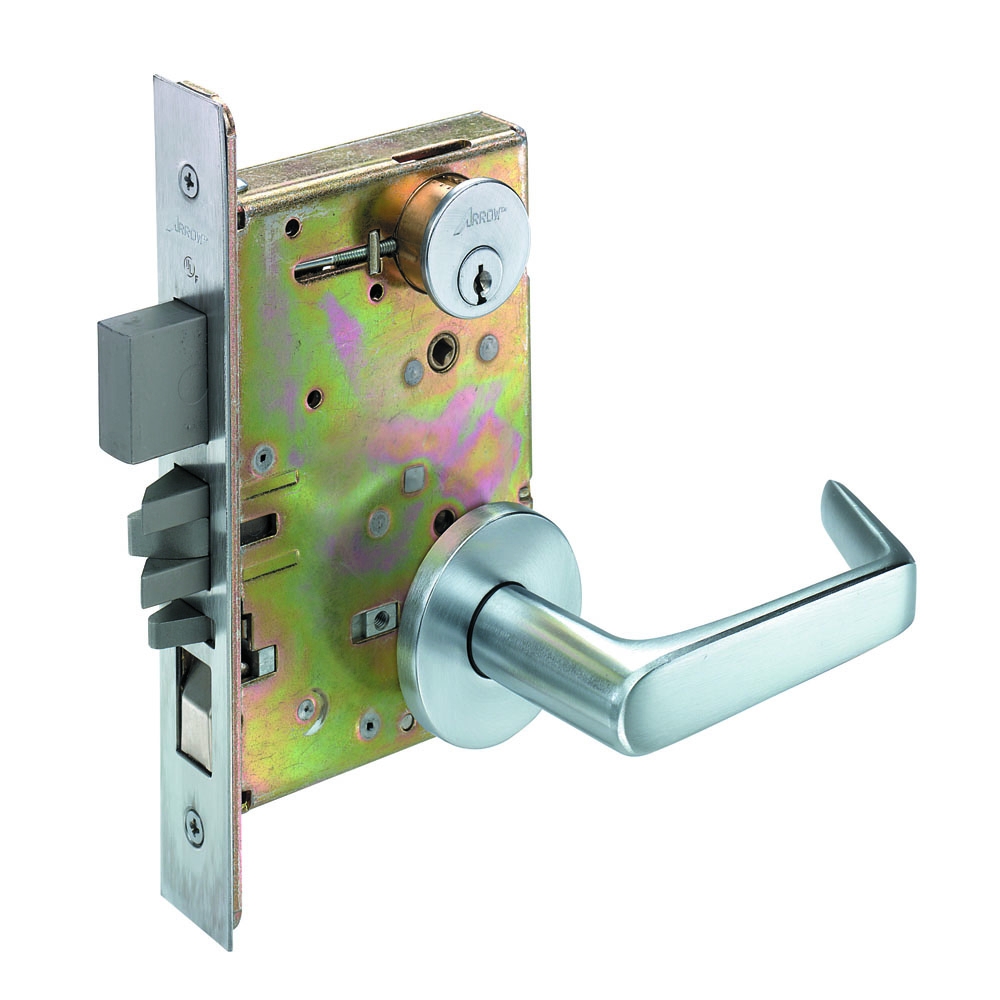

Arrow Lock BM17-XL-26D Classroom Mortise Lock

Arrow BM Series Lever Mortise Locks are intended for heavy duty use in schools, hospitals and commercial buildings where security, durability and low maintenance are required. They are engineered for strength and performance, and precisely manufactured to exacting standards.

Benefits

• Easily reversible, enabling the user to reverse hands without disassembling lock case
• Meets or exceeds ANSI/BHMA operational Grade 1 requirements.
• Throughbolted trim designs for proper alignment and increased security.
• Many trim designs to complement Arrow cylindrical locks and exit device trims
• Keyed into new or existing Arrow or competitive master key systems.
• 5-year warranty

Specifications

• Backset Depth (Standard): 2 3/4"
• Cylinder Format: Conventional, SFIC
• Door Thickness (Standard): 1 3/4"
• Handing: Field Reversible
• Latchbolt Throw: 1"
• Maximum Backset: 2 3/4"
• Minimum Backset: 2 3/4"
• Maximum Door Thickness: 1 3/4"
• Minimum Door Thickness: 1 3/4"
• Number of Keys: 2
• Strike Type: ANSI Curved Lip, ANSI Straight Lip
• UL Listed: Yes
• ULC Listed: Yes
• Warranty: 5-year limited warranty

The Arrow Lock BM17-XL-26D Classroom Mortise Lock, as the name suggests, is well-suited classroom applications and settings. It has a latchbolt that is operated by a lever on each side, except when the outside lever is locked by a key. The paired key operates the latch or unlocks the outside lever, and the inside lever is always free. An auxilary latchbolt deadlocks the original latchbolt.

• Finish: Satin Chromium plated
• Straight Lever (Xavier style): X - Forged Brass, Cast Bronze or Stainless Steel Escutcheon: L - Wrought Brass, Bronze or Stainless Steel
• Field reversible handing (without disassembling the lock case)
• Backset: 2-3/4"
• Made for door thickness of 1-3/4"

This item has been discontinued by the manufacturer, please contact our Security Hardware Experts to learn about alternative brands and products we can offer you.
