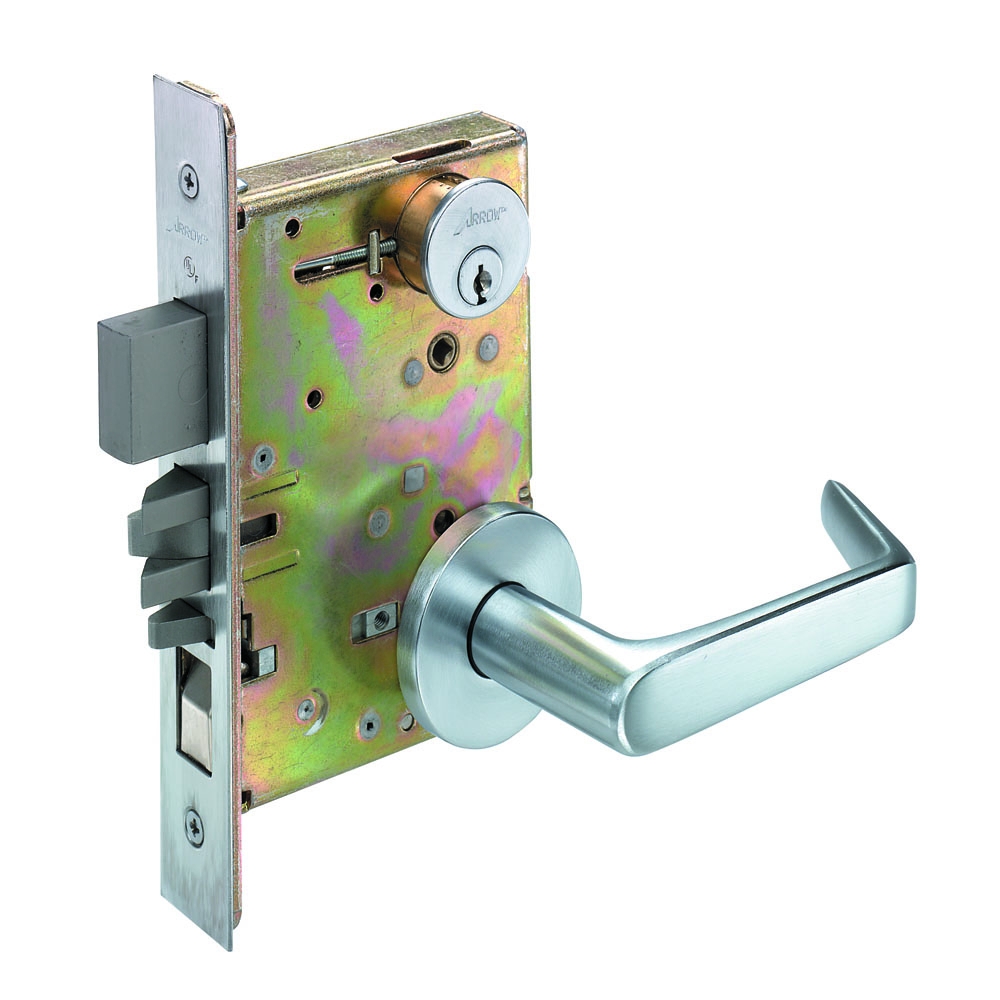

Arrow Lock BM11-XH-26D Apartment, Front Door Mortise Lock

Arrow BM Series Lever Mortise Locks are intended for heavy duty use in schools, hospitals and commercial buildings where security, durability and low maintenance are required. They are engineered for strength and performance, and precisely manufactured to exacting standards.

Benefits

• Easily reversible, enabling the user to reverse hands without disassembling lock case
• Meets or exceeds ANSI/BHMA operational Grade 1 requirements.
• Throughbolted trim designs for proper alignment and increased security.
• Many trim designs to complement Arrow cylindrical locks and exit device trims
• Keyed into new or existing Arrow or competitive master key systems.
• 5-year warranty

Specifications

• Backset Depth (Standard): 2 3/4"
• Cylinder Format: Conventional, SFIC
• Door Thickness (Standard): 1 3/4"
• Handing: Field Reversible
• Latchbolt Throw: 1"
• Maximum Backset: 2 3/4"
• Minimum Backset: 2 3/4"
• Maximum Door Thickness: 1 3/4"
• Minimum Door Thickness: 1 3/4"
• Number of Keys: 2
• Strike Type: ANSI Curved Lip, ANSI Straight Lip
• UL Listed: Yes
• ULC Listed: Yes
• Warranty: 5-year limited warranty

The Arrow Lock BM11-XH-26D Apartment Front Door Mortise Lock, as the name suggests, is well-suited for front door apartment style applications and settings. It has a latchbolt that is operated on either side by a lever, except when the outside lever is locked by stopworks, or when the deadbolt is projected. The deadbolt is operated by a key outside and a turnpiece inside. If you turn the inside lever, it will retract both the latchbolt and deadbolt simultaneously.

• Finish: Satin Chromium plated

• Straight Lever (Xavier style): X - Forged Brass, Cast Bronze or Stainless Steel Escutcheon: H - Wrought Brass, Bronze or Stainless Steel

• Field reversible handing (without disassembling the lock case)

• Backset: 2-3/4"

• Made for door thickness of 1-3/4"
