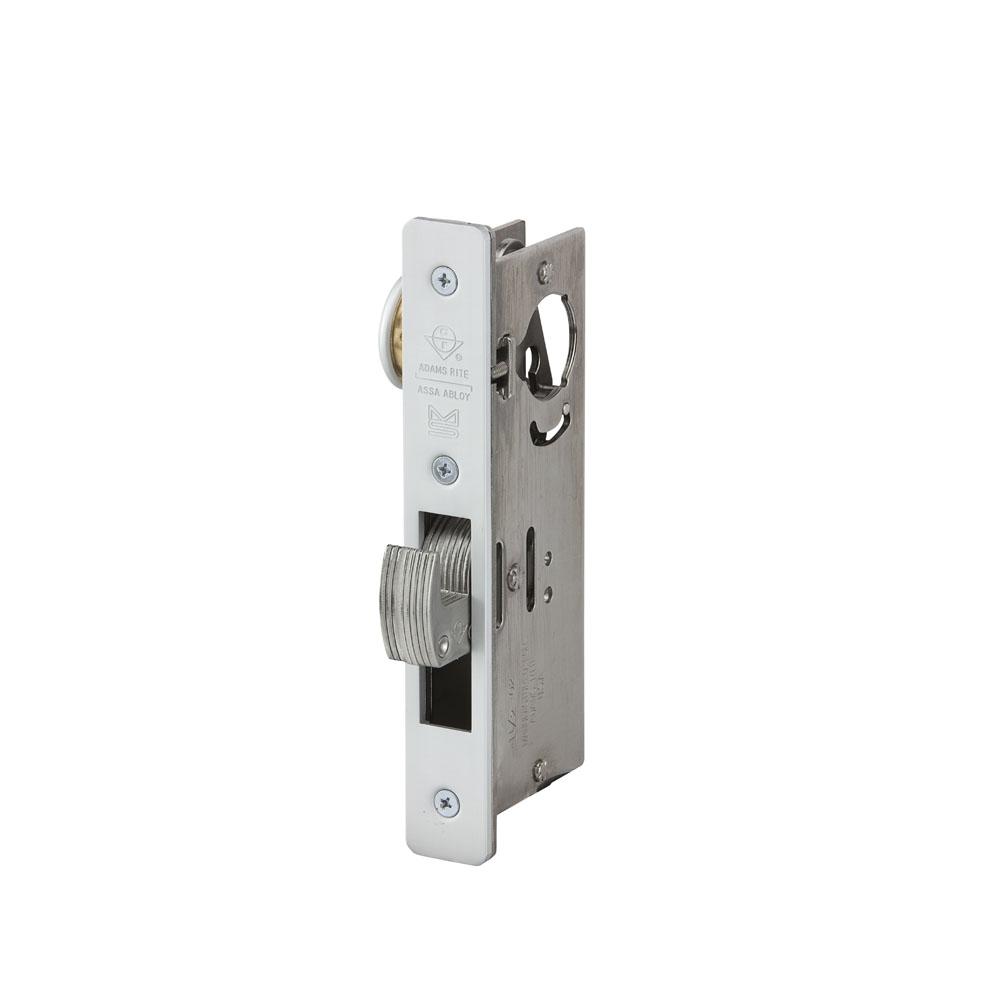

Adams Rite MS1950-310-628 MS Deadlock
A 3" laminated stainless steel bolt and complete stainless steel construction makes the heavy duty MS1950P MS® Deadlock a higher security, premium locking solution for swinging doors. The MS1950P is compatible with header and threshold bolts to accommodate multi-point locking in a double door application. The stainless steel hookbolt of the MS1950P-X5X Series MS® Deadock answers the security need of sliding doors. The hook shaped bolt resists the parting motion of sliding door and jamb.
Operation:
For ingress, a 360˚ turn of the key or thumbturn on the exterior cylinder retracts the counterbalanced bolt. While the bolt is retracted the door acts as a passage function, until the deadlock is re-locked from either side of the opening. Typically, if the door remains unlocked during business hours, the interior side is equipped with a mortise cylinder and indicator to allow for flexible traffic control by management. An interior thumbturn to lock the bolt and a 4550 lever can also be installed on the interior side to ensure free egress & ADA compliance.
Key can be removed only when bolt is in a locked or unlocked state. Lock body accepts a mortise cylinder, thumbturn, 4089 indicator, or 4550 deadlock lever from either side.
Features:
Cylinder Backset: 31/32" [24.6 mm], 1-1/8" [28.6 mm], or 1-1/2" [38.1 mm] only.
Case: Measures 1" x 6" x depth [25.4 mm x 152.4 mm x depth], depth varies bybackset (see catalog page). Fully stainless steel case and internal components. Stainless steel metal plate to block contact with the inner locking cam assembly.
Bolt: Eight-ply laminated stainless steel. Center ply has alumina-ceramic core to defeat any hacksaw attack, including rod-type “super” hacksaws.
- MS1950P Bolt: Standard straight bolt measures 5/8" x 1-3/8" x 2-7/8" [15.9 mm x 34.9 mm x 73.0 mm] with 1-3/8" [34.9 mm] throw.
- MS1950P-X5X Bolt: 5/8" x 1-3/8” [15.9 mm x 349.9 mm] with 13/16” [20.3 mm] throw. Hook shape repels pry bar attempts to “spread” the door from its jamb or lift it off its track.
Faceplate: Measures 1" x 6-7/8" [25.4 mm x 174.6 mm].
Strike: See catalog page for dimensions of strike slot which can be cut in metal jamb. Trim plate, box strike, and armored strike are available separately.
Standard Package: Individually boxed with machine screws for mounting. Cylinders and/or thumbturns available separately.
Shipping weight: 1-1/2 lbs. [0.68 kg]
