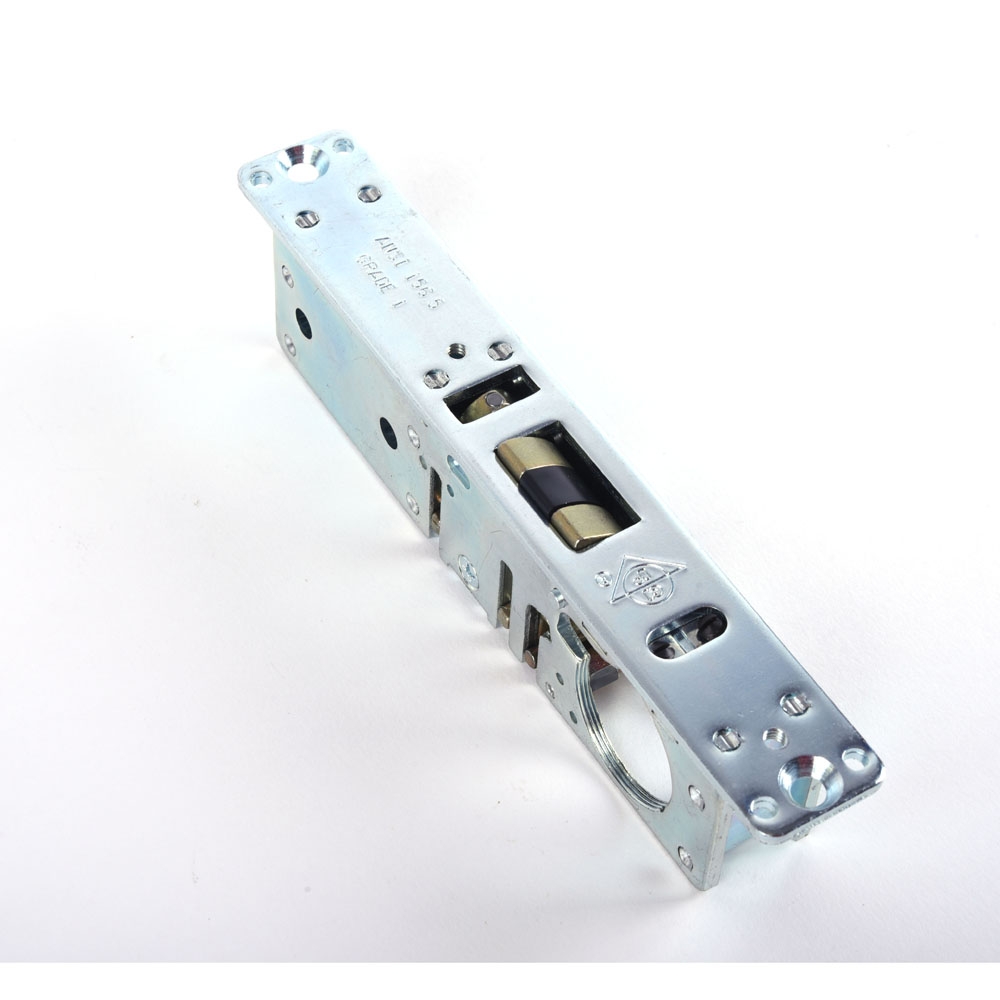

Adams Rite 4513-36-IB Standard Duty Deadlatch,Body Only

Adams Rite 4513-36-IB Standard Duty Deadlatch,Body Only

The 4510 Series Standard Duty Deadlatch offers flexibility of traffic control during and after business hours. A reverse turn of the key while the bolt is held retracted retains the bolt to allow two-way traffic for healthcare, financial institutions, retail, and other applications that require free entrance at certain times and exit-only at other times. Interchangeable, without stile modification, with any MS1850S Deadlock of same backset and faceplate shape. They do not, however, provide the same maximum security level as the MS®Deadlock.

Operation:

Turn key or operate handle or paddle to retract spring-loaded latchbolt. To holdbolt retracted, push it in and secure by reverse turn of key. Lock accepts any standard mortise cylinder with MS® cam, available separately. Lock accepts any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder or thumbturn such as the 4066Thumbturn, available separately. Lock accepts cylinder from either or both sides.

Features:

Cylinder Backset: 7/8" [22.2 mm], 31/32" [24.6 mm], 1-1/8" [28.6 mm] or 1-1/2" [38.1 mm].

Case: Steel with corrosion-resistant plating. Measures 1" x 5-13/16" x depth [25.4 mm x147.6 mm x depth]. Depth varies by backset.

Bolt Holdback: While bolt is held fully retracted, a reverse turn of the key retains the bolt, allowing the door to be free swinging.

Latchbolt: All metal with hardened steel internal pins. Handing is reversible without special tools. Measures 1/2" x 1" x 1/2" [12.7 mm x 25.4 mm x 12.7 mm] throw.

Auxiliary Bolt: All metal. Deadlocks latchbolt to prevent “loiding” or case-knife entry.

Faceplate: Measures 1" x 6-7/8" [25.4 mm x 174.6 mm].

Strike: Standard strike furnished is 4902-01 for flat jamb where door closes flush or nearly flush. Available separately: radius strike for opposite stile in paired doors; longer strike (4901) to cover slot strike of MS lock; long lip strikes for center hung doors.

Standard Package: Individually boxed with strike and mounting screws. Cylinder, paddle, handle available separately.

Shipping Weight: 1-1/4 lbs [.57 kg]. Also available in a 25-unit pack for volume customers. Please contact factory for more information.

The Adams Rite 4513-36-IB Standard Duty Deadlatch provides the most flexible traffic control during business hours to allow two-way traffic for healthcare, retail, financial institutions, etc., and exit-only operation after business hours. The latchbolt is all metal with hardened steel internal pins, and there is an all metal auxiliary bolt that deadlocks the latchbolt to prevent case-knife entry. The case is steel with corrosion-resistant plating, and it is individually boxed with strike and mounting screws. The cylinder, paddle, and handle are available separately. It is interchangeable with any MS1850S Deadlock of the same backset and faceplate shape.

To operate, the deadlatch has a bolt holdback feature, meaning in order to fully unlock the door and leave it free swinging, you push the bolt into its retracted position and secure it by a simple reverse turn of the paired key. Turn the key or operate handle to retract the spring-loaded latchbolt. This lock accepts any standard mortise cylinder with MS® cam, and accepts cylinder from both sides.

• Lock Body only
• Backset: 1-1/8"
• Less Strike
• RH or LHR
• Zinc Plated
