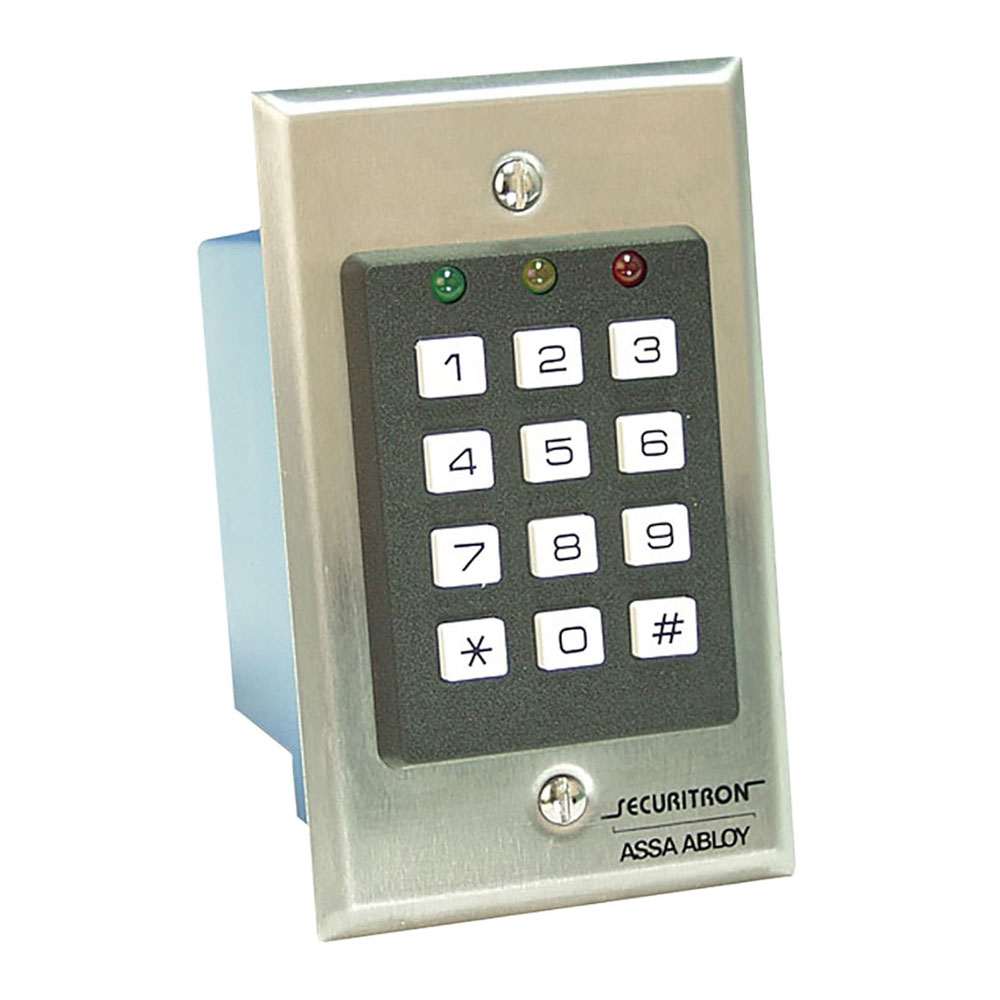

The Securitron DK-16 Single Gang Keypad and Controller is a Single Gang Keypad and Controller. The Securitron® DK-16 Digital Keypad System Secure is easy-to-program for a single-door control system. It provides medium/ high security control of electric locks in a one or two-door application where both doors have the same control needs. The tamper-resistant keypad provides true ten-key operation for use and programming. Encased in a separate enclosure for secure installation in a protected area, the controller offers REX input and relay output for lock control, alarm shunt or other interfaces.
Features include:
- 12-key keypad with engraved and paint filled numbers
- Stainless steel plate
- Red, green and yellow LEDs for status and programming feedback
- Audible keystroke echo
- True 10-key operation (keys are not paired)
- 59 users with multiple entry codes
- User code and hard code disable feature
- Passage mode and Lockout mode
- Request to exit (REX) input
- 16 ft. [4.8m], 12 conductor, 22 gauge keypad cable
- US32D/630 Satin Stainless Steel finish
