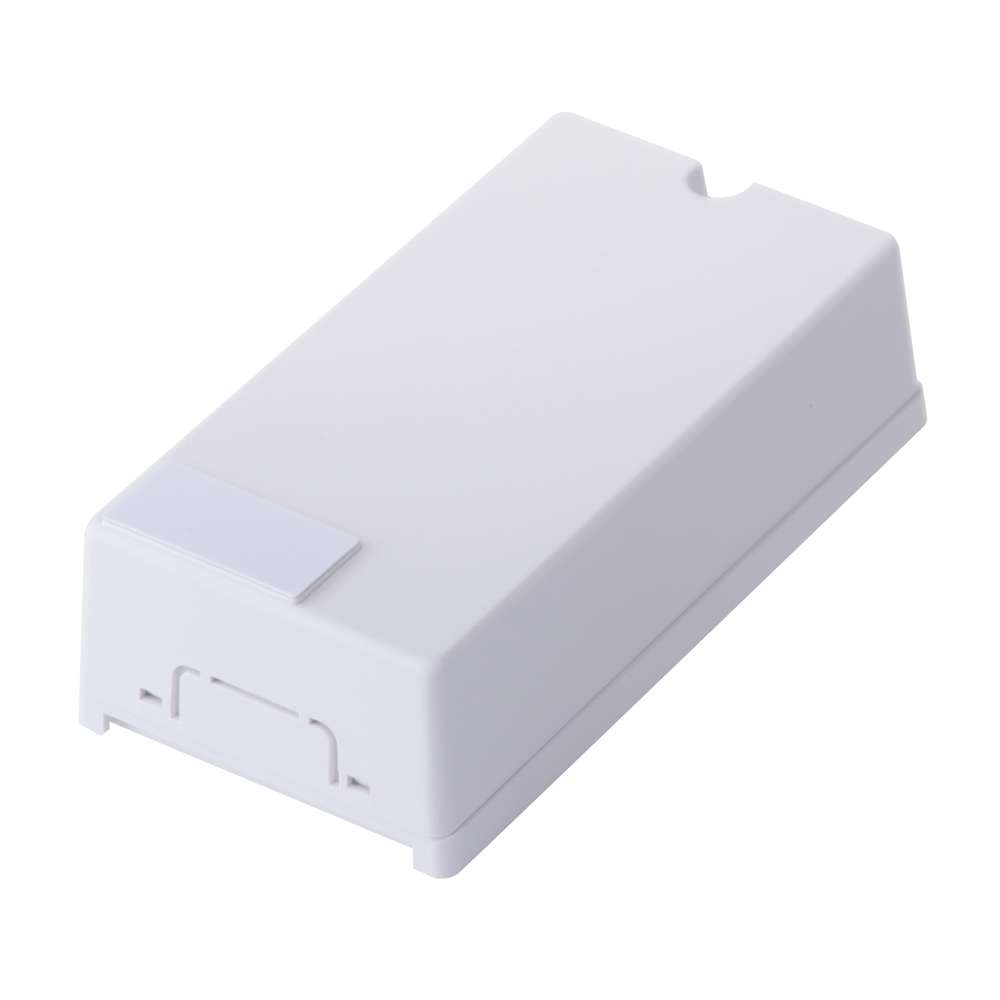

Aiphone RY-3DL Selective Door Release Adapter
Aiphone RY-3DL Selective Door Release Adapter
The RY-3DL provides selective door release capability with the IE-2AD Audio Door Entry system.
Specs
Relay Input 12-18V DC, Red, Gray wires, 22AWG
N/O Output rating 1A at 30V DC or 50V AC
N/C Output rating 1A at 30V DC or 50V AC
Wiring
4 conductors from Master Station to RY-3DL.
2 conductors from power supply to RY-3DL.
2 conductors from RY-3DL to release mechanism, with power wired in series.
Dimensions 5-1/2" H x 3" W x 1-1/2" D
