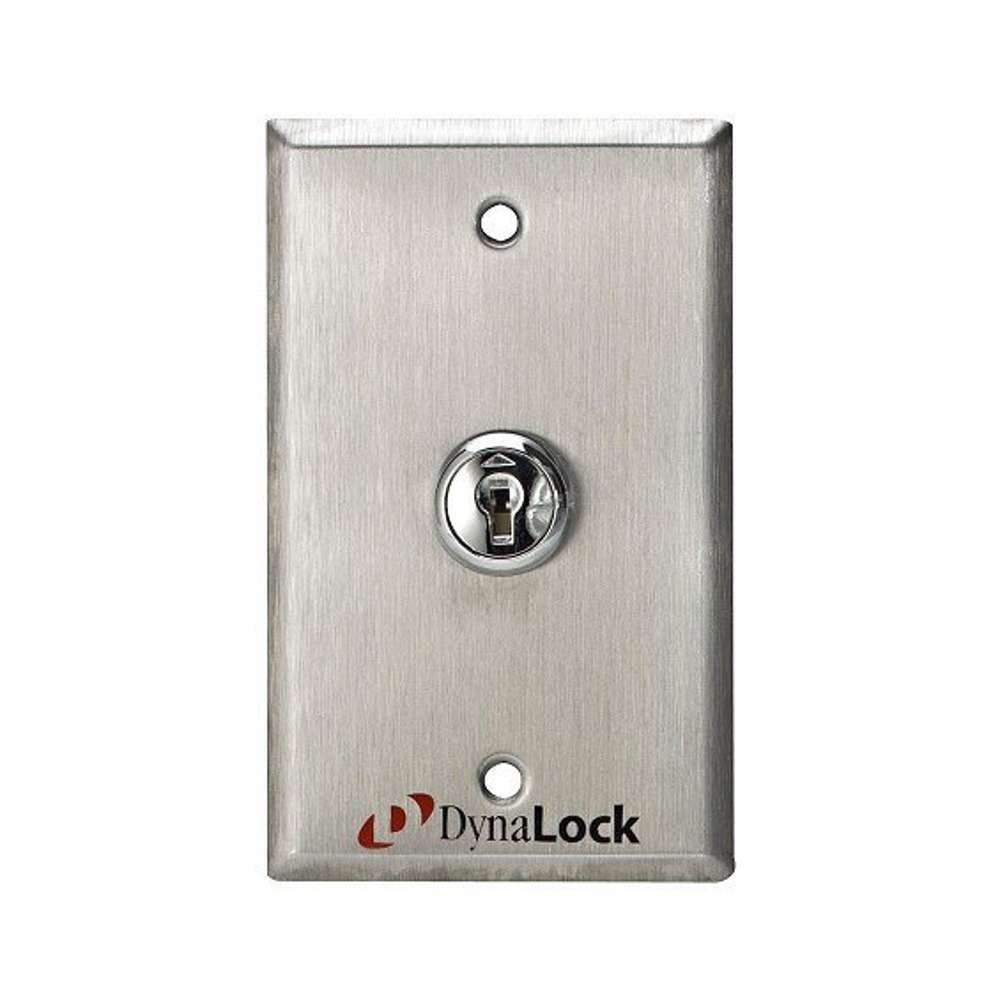

DynaLock 7000 Series Momentary and Maintained Keyswitches

DynaLock 7000 Series Momentary and Maintained Keyswitches

Keyswitches may be used to control electric locks, shunt or activate security panels, consoles or any similar requirements. The assembly is supplied with face plate, bracketry, cylinder locknut and one or two switches depending on model ordered. The user typically supplies the mortise cylinder and cam when master keying a system. Models 7050 & 7051 do not require a cylinder. Switch contacts rated 6 Amps @ 125VAC and are available momentary or maintained, SPDT or DPDT. Switch assembly requires 1-1/2" depth clearance and is shipped on single, double or narrow gang plates. Standard Finish: US32D Cylinder Requirements: 1-1/8" or 1-1/4" Mortise Cylinder with "bat" type cam
