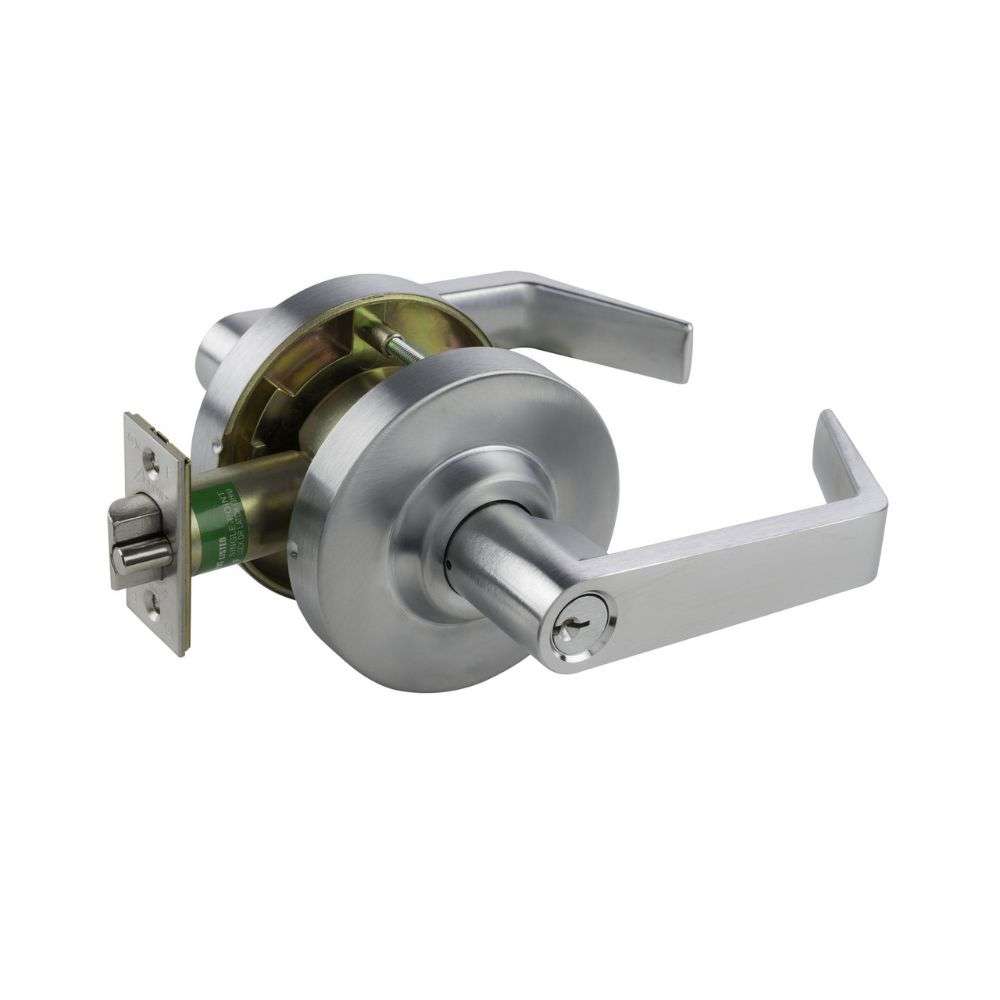

The Arrow Lock MLX82SB-26D-CS Storeroom Lever Lock is a Grade 2 lockset with a freewheeling lever for abuse resistance, and is UL listed while complying with Americans with Disabilities Act requirements. It has a two screw lockset for easy installation, and it's a great option for replacing or upgrading commercial locksets. In terms of operation, the outside lever always locked. Its latch bolt is operated by a paired key in the outside lever, or by turning the inside lever.
Arrow MLX Series is a robust BHMA Grade 2 lockset featuring a freewheeling lever for abuse resistance, four screw lock install for quick installation and a 10 year mechanical warranty.
Benefits
- Quick and easy installation with removable through bolts
- Abuse resistance
- Economical solution for ADA Compliance
Specifications
- ANSI/BHMA Code: A156.2
- ANSI/BHMA Series: Series 4000
- Backset Depth (Standard): 2 3/4"
- Cylinder Format: Conventional, Small Format, Large Format
- Cylinder Pins: 6 pin
- Door Thickness (Standard): 1 3/4"
- Door Type: Hollow Metal, Wood
- Handing: Non-handed
- Latchbolt Throw: 1/2"
- Maximum Backset: 2 3/4"
- Minimum Backset: 2 3/8"
- Maximum Door Thickness: 1 3/4"
- Minimum Door Thickness: 1 3/8"
- Strike Type: ANSI Curved Lip
- UL Listed: Yes
