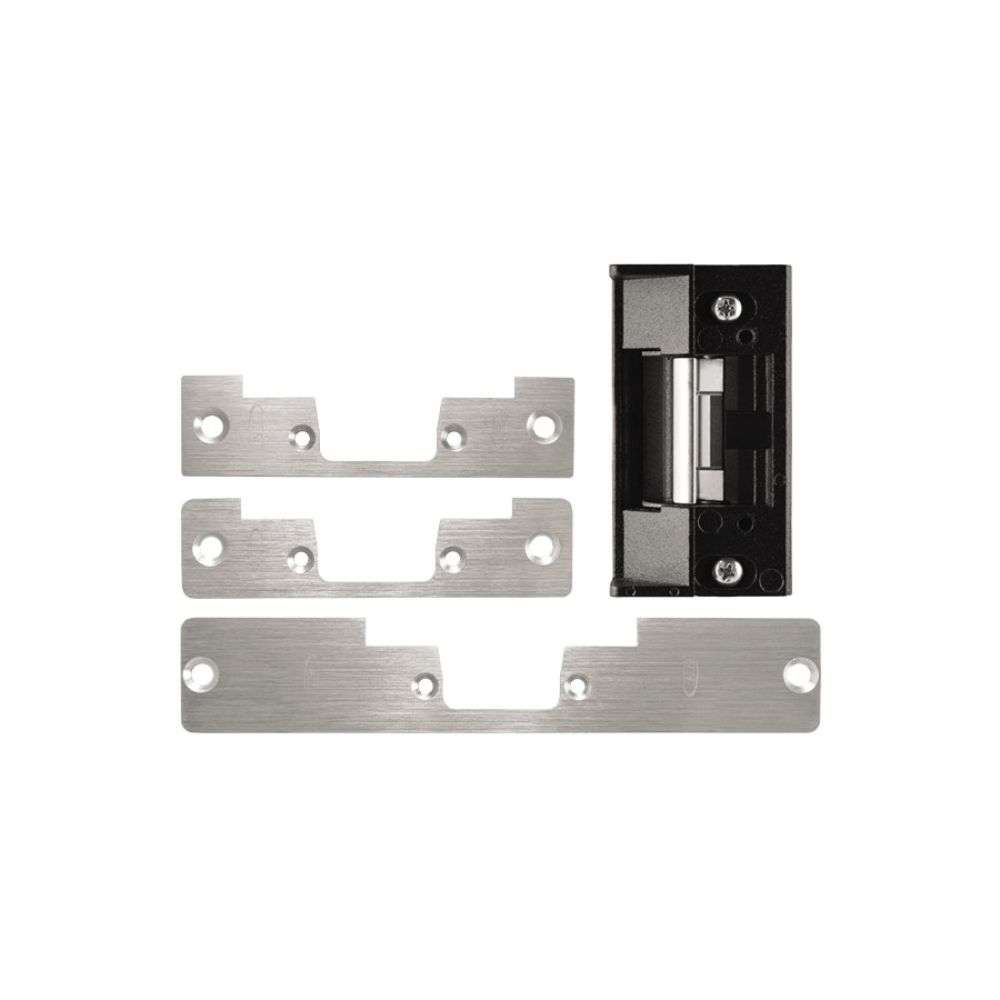

Rutherford L65U 32D Electric Strike with Three Faceplates
RCI L65U Electric Strike, Low Profile, Multi-Faceplates, for 5/8" Projection Latches, 12-24 VAC, 12/24 VDC, Fail Safe/Fail Secure, Satin Stainless Steel
The 6 series centerline strikes are available in standard profile or low-profile options to accommodate different latch projections. This heavy-duty series combines several requested key features. Standard features include a multi-voltage single solenoid, selectable lock mode (no tools necessary), horizontal adjustment, and plug-in wire connectors. 1/4" horizontal adjustment makes installations faster and easier. Plus, with the RCI 6 series there will be less pressure on installer’s strike inventory, because these RCI strikes do it all.
Low Profile Insert Depth: 1-1/16" (27mm)
U - Universal, Includes 3 Faceplates (04, 08 and 14)
Features
- Standard profile accommodates 3/4" (19mm) and Low-profile accommodates 1/2" (12.7mm) or 5/8" (16mm) latch projections
- 1/4" (6.4mm) horizontal adjustment
- Plug-in wire connectors
- Trim plate included to cover up irregular frame cut-out
- Non-handed
- Brushed Stainless Steel (32D)
- Factory tested to over 1-million cycles of operation
- UL 294 Listed for Access Control Unit Accessory (6th Edition)
- UL 1034 burglary-resistant Listed
- Certified to ANSI/BHMA standard A156.31, Grade 1, endurance 500,000 cycles2
- Patent #: US 6,874,830 and 7,144,053
- Patent #: Canadian 2,405,642
