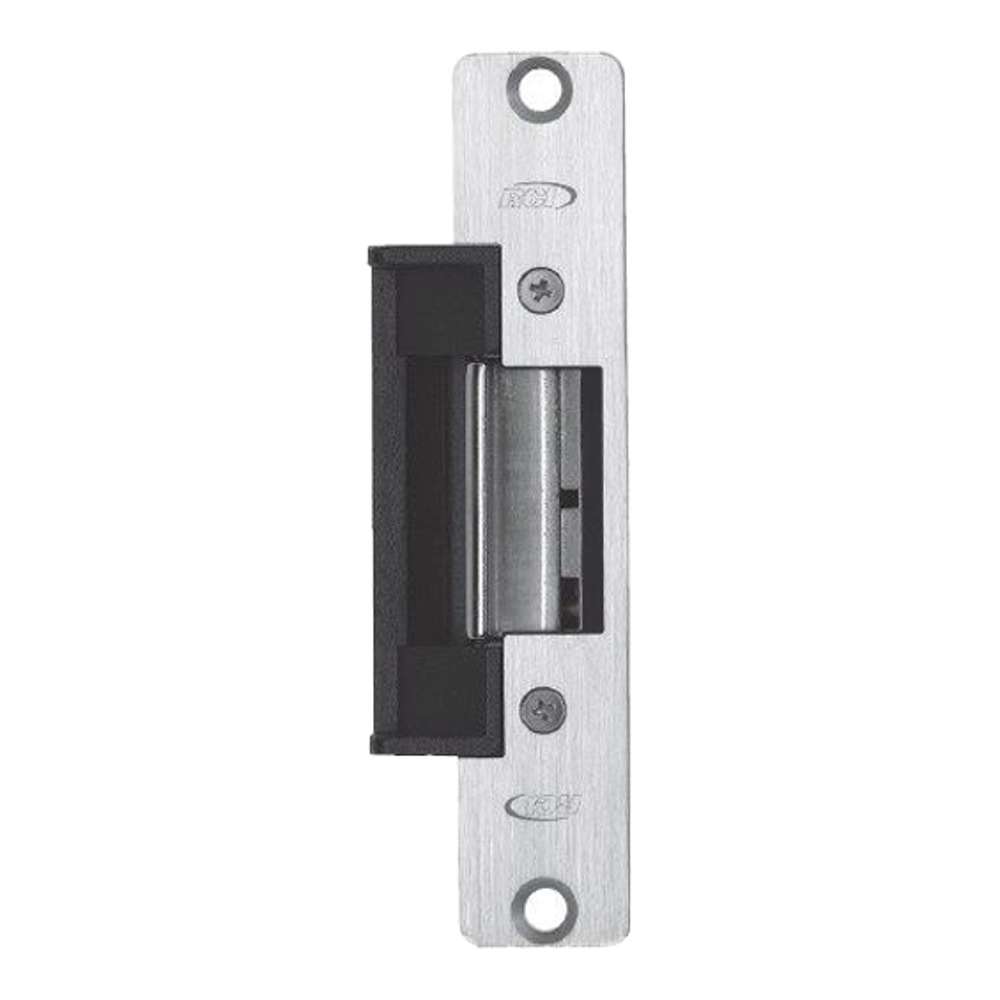

Rutherford A43-12VDC Fail Unlocked 4 Series less Faceplate

Rutherford A43-12VDC Fail Unlocked 4 Series less Faceplate

7 Series Modular Strike Inserts Includes lip bracket & hardware pack

The 7 series centerline strikes accommodate 5/8” latch projections with various faceplate options to match most frame types. The RCI 7 series centerline strikes are compatible with a large range of door thicknesses from 1-3/8”-2-3/8”. These strikes function effectively with aluminum, cylindrical, centerline mortise locks, & exit devices. The RCI 7 series allows installers to adjust the strike pivot horizontally up to 1/8” for precise alignment.

• Energy: 280mA 11-16VAC, 12VDC, 24VACVDC (At 12VDC)
• Strength: 500lbf Static 70ft-lb Dynamic
• Endurance: 250,000 Cycles
• Mode: Available In Fail-Secure & Fail-Safe
• Warranty: 5 Year Limited Warranty

For Use with Aluminum, Cylindrical, Centerline Mortise Locks & Exit Devices

12VAC/DC (Fail Locked), 24VAC/DC (Fail Locked), 12VDC (Fail Unlocked), 24VDC (Fail Unlocked), or 11-16VAC (Fail Locked)

RCI A43, 43 Series Electric Strike, Less Faceplate, Fail Safe

A43: 43 Series without Faceplate 12VDC/24VDC

Description And Features:

- Mode: Fail Safe
- Strength: 1,500lbf Static, 70ft-lb Dynamic
- Accommodates 3/4" (19mm) latch projection
- 1-1/2" (38mm) cut-out depth accommodates most door frame material types
- Use with wide range of door thicknesses, 1-3/8" to 2-3/8" (35mm-60mm)
- Standard mounting tabs and fasteners included
- Non-handed
- Trim plate included to cover up irregular frame cutout
- Brushed Stainless Steel (32D) finish
- UL 1034 burglary-resistant Listed
- Certified to ANSI/BHMA standard A156.31, Grade 1, endurance 500,000 cycles
- 3 Year Limited Warranty
