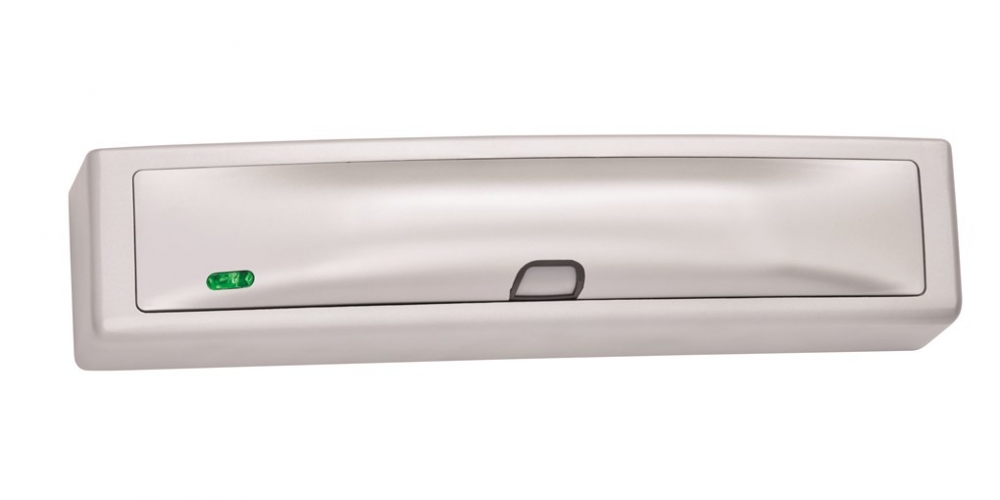

The Securitron M680EBD EcoMag Eco-Friendly Mag Lock is a Securitron® M680E EcoMag Sustainable, 1,200 lbs holding force Magnalock® bracket mounted, sustainable Magnalock. The same unsurpassed intelligence, style and convenience as the previous M680 series, but with 80% reduction in energy consumption. The Securitron M680E is intelligent, with built-in door prop sensing allowing the magnet to de-energize the coil when the door is held open for extended periods. The Securitron M680EBD offers built-in smart voltage sensing, integrated patented BondSTAT, tamper sensor as well as door position status monitoring. The aesthetics and design finishes of the EcoMag are refined enough for the most discriminating designer openings. It also offers the fastest, easiest, most secure installation of any bracket mount maglock with an updated strike plate mounting template.
Features include:
- Integrated patented BondSTAT magnetic bond sensor
- Integrated Door Position Switch (DPS)
- Strike plate mounting template provides the easiest install for out-swing doors
- LED Indicator shows the lock is secure, open, or has an incomplete bond
- Wire chamber anti-tamper switch
- Tamper Switch sends an alarm output if the cover is removed and is selectable to NO or NC
- Autosensing dual voltage with microprocessor technology
- Adjustable automatic relock timer (0 to 30 seconds)
- Energy efficient, low power usage
- Size optimized for use with door closers
