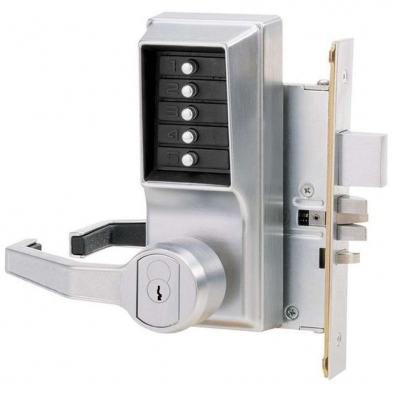

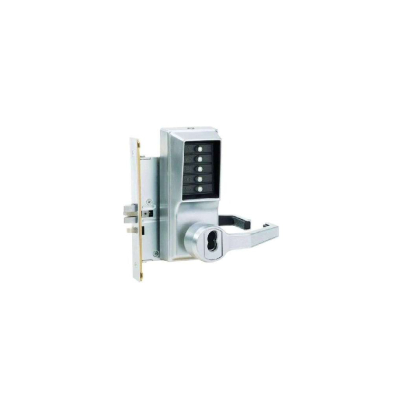

Kaba Simplex Combo Mortise Lock, Best IC Prep RH

SKU # SI/R8146B-26D

Kaba Simplex Combo Mortise Lock, Best IC Prep RH

Provides exterior access by combination, while allowing free egress.

  • Construction: Cast front housing; unified trim plate; fixed ADA—compliant levers
  • Numeric Keypad: Vandal resistant, solid metal pushbuttons
  • Backset: 2¾" (70 mm)
  • Latch: ¾" (19 mm) two-piece anti-friction latch; 1" (25 mm) optional deadbolt
  • Minimum Stile Recommended: 5" (127 mm)
  • Strike: 4⅞" (124 mm) L x 1¼" (32 mm) W x ¼" (6 mm) D Deadbolt/Latch mortise strike plate
  • Key Override
  • Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included
  • Removable Cores: Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length), Corbin Russwin, Schlage, and Sargent; core not included
  • Door Preparation: Easily installs on wood or metal doors. Standard (86) mortise preparation
  • Door Thickness: 1¾" (44 mm) to 2¼" (57 mm)
  • Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
  • Durability: Weather resistant
  • Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
  • Warranty: 3-year warranty

G.S.A. Contract Holder
This item is available on our
GSA contract # 47QSWA19D001W
US$579.60

Description:

Description:

Kaba Simplex Combo Mortise Lock, Best IC Prep RH

R8146B-26D-41 Simplex Pushbutton Mortise Lock with Lever Best Core override in Satin Chrome Finish

The Simplex R8146B-26D-41 series of Simplex Pushbutton Lock eliminate problems and costs associated with issuing, controlling and collecting keys and cards. It also provides exterior access by combination, while allowing free egress. Unican Kaba Ilco Simplex is the leader in top of the line security solutions that presents industrial strength combination lock with high quality security products for over 100 years now. For a security lock, the highly weather resistant Simplex 8100 Series earns an impressive Grade 1 rating from ANSI (American National Standards Institute) - this rating is the highest one they give out for quality. The Simplex 8100 grants entry upon successful validation of a 1 to 5 digit code that you pre-program into the lock. Being vandal protected hardware, the Simplex series of PIN based locks find widespread acceptance in high-traffic commercial, institutional, and government buildings throughout the world.
