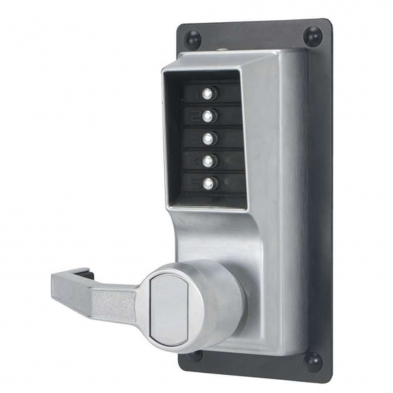

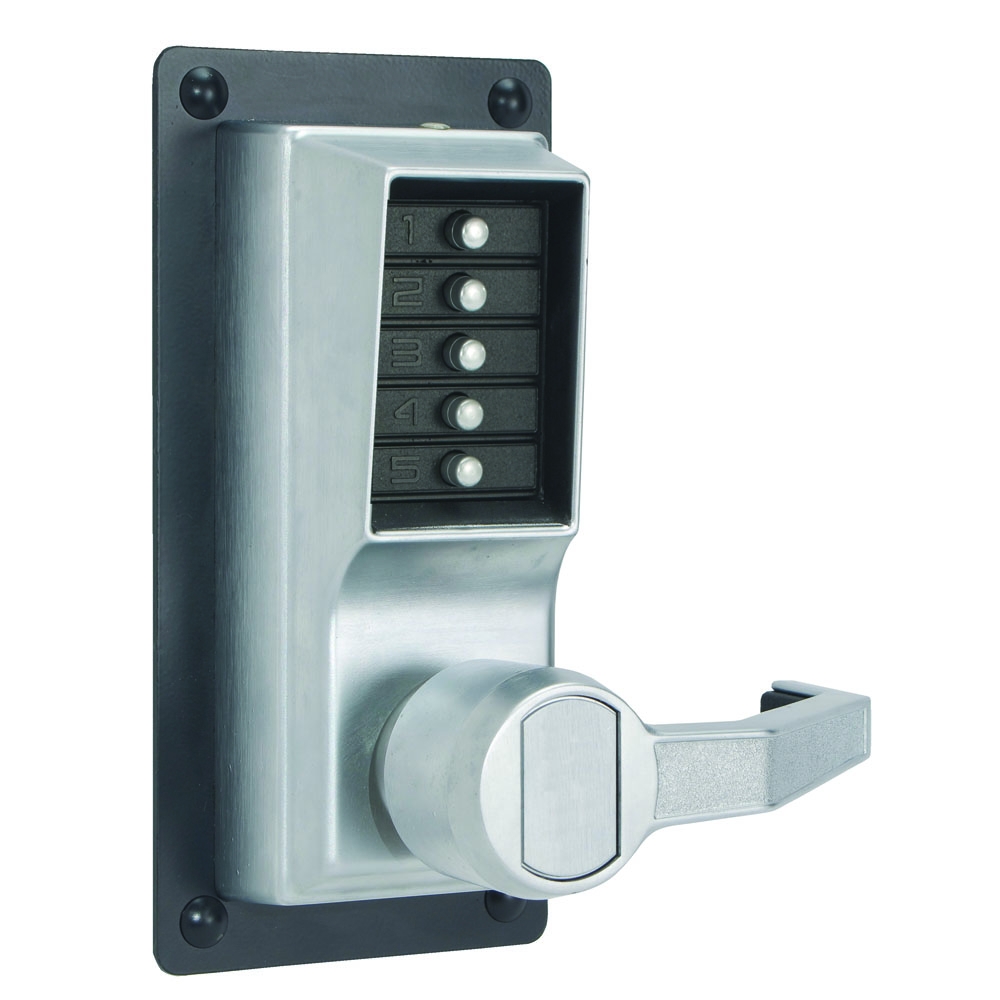

The Kaba Access LRP1010-26D-41 Exit Trim Lever Lock
Eliminates problems and costs associated with issuing, controlling, and collecting keys and cards.
Construction: Heavy-duty cast front housing; heavy-duty mounting plate; fixed ADA-compliant lever
Numeric Keypad: Vandal resistant, solid metal pushbuttons
Handing: Factory-handed; not field reversible

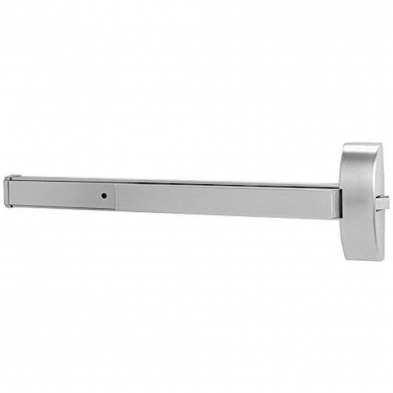

Exit Device Strike: Supplied with Exit Device
Tailpiece:
- 2¾" (70 mm) tailpiece for Exit Device operation from outside
- Optional 5" (125 mm) tailpiece for freezer doors (sold separately, part # 74773-000-01)
Minimum Stile Recommended: 5" (127 mm)
Weight: 8 lbs. (3.6 kg)
Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included
Removable Cores: Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length), Corbin Russwin, Schlage, and Sargent; core not included
Door Preparation: Recessed through bolts may be required for Exit Device preparation
Door Thickness:
- 1⅜" (35 mm) to 2¼" (57 mm)
- Optional 5" (127 mm) tailpiece (sold separately, part # 74773-000-01)
Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant lever
Durability: Weather resistant
Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
Warranty: 3-year warranty
