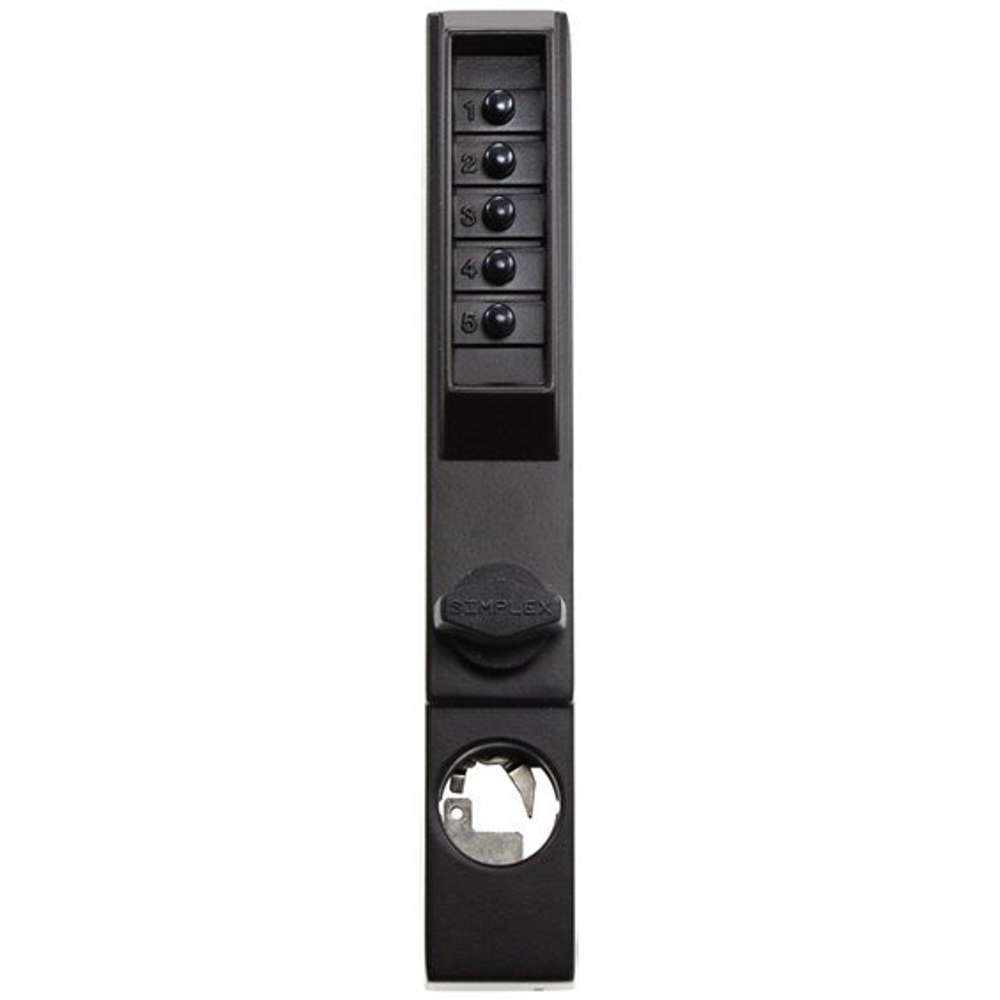

Simplex 3000 Series Narrow Stile Pushbutton Passage Lock w/ Thumbturn
3000 Series Narrow Stile Pushbutton Passage Lock with Thumbturn by Simplex / Unican
Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.
The Simplex 3000 Series mechanical pushbutton lock provides exterior access by combination for narrow stile aluminum glass doors. This fully mechanical lock eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.
The 3000 lock is designed for use with Adams Rite 4510/4710 latch mechanisms (not supplied). Any standard MS Mortise Cylinder that operates the Adams Rite latch will function with a 3000 Series lock.
No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements.
Locking Device: Adams Rite 4510/4710/4910 mortise latch.
Number of Codes: Single access code - one easy-to-manage code for all users.
Programming: Lock is easily programmed via keypad without removing lock from the door.
Handing: Non-handed; required drive assembly is factory-handed, not field reversible.
Economical: A cost effective access control solution.
Key Override: Accepts Maximum Security (MS) mortise cylinders; can be used to override the lock combination and gain access using a key. Allows facilities to initiate or maintain a master-keyed security system (keyed alike or keyed differently).
Passage Mode (3001 & 3002) - allows access without using the lock entry code. Feature activated from the outside using cylinder override key.
Lockout Mode (3001 & 3002) - disables the lock so that entry code cannot be used to gain access. Access is permitted using the key override only. This is activated from the outside using the cylinder override key.
Door Thickness: 1-3/4" maximum.
Strike: Sold separately (Adams Rite or Kaba Ilco Corp.).
Stile Width: 1-7/8" minimum, required for mounting.
Backset: 31/32" or 1-1/8".
Finish: Duranodic (55) & Satin Chrome (26D).
Drive Assembly:
- 3010-19-41 - 31/32" Backset; Right Hand or Right Hand Reverse.
- 3010-19-41 - 31/32" Backset; Left Hand or Left Hand Reverse.
- 3030-19-41 - 1-1/8" Backset or 1-1/2" Backset; Right Hand or Right Hand Reverse.
- 3040-19-41 - 1-1/8" Backset or 1-1/2" Backset; Left Hand or Left Hand Reverse.
Special Order Information: For pricing on any function, keyway or finish of the Simplex 3000 Series not found on this page please contact Taylor Security direct via e-mail (sales@taylorsecurity.com) or call us toll-free at 1-800-676-7670.
