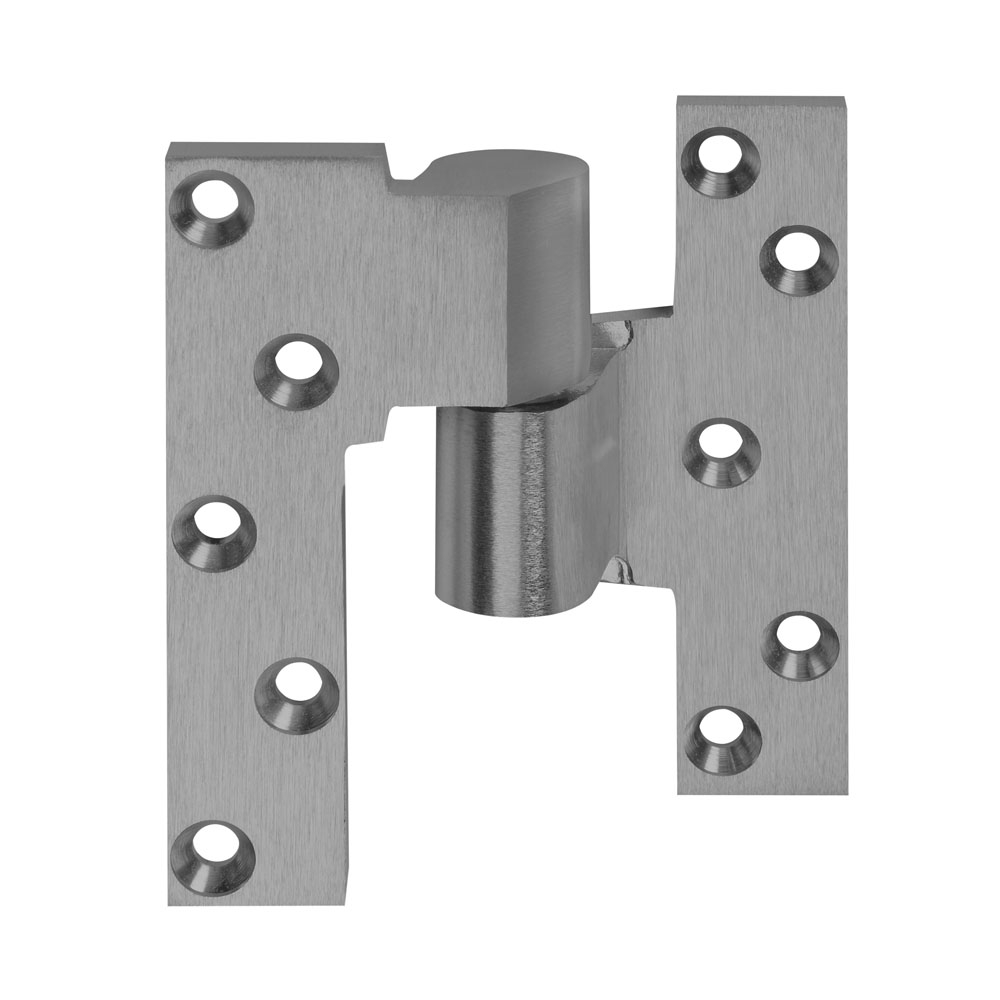

Rixson M190-LH-626 3/4 Offset Intermediate Pivot

The Rixson M190-LH-626 3/4 Offset Intermediate Pivot is a heavy-duty, full mortise pivot designed for installations where standard top pivot configurations cannot be used due to frame conditions. This left-hand model features a 3/4" (19 mm) offset and a satin chromium plated (626) finish for durability and corrosion resistance.

Manufactured by Rixson, an ASSA ABLOY brand, this load-bearing pivot provides additional lateral support and helps maintain proper door alignment. Its heavy-duty needle bearing construction ensures smooth, consistent operation, making it ideal for high-traffic, extra-heavy, or specialized door applications.

The Rixson M190-LH-626 3/4 Offset Intermediate Pivot includes the following features:

• 3/4" offset intermediate pivot
• Left-hand (LH) configuration
• Heavy-duty full mortise design
• Load-bearing pivot construction
• Used where frame conditions do not allow standard top pivot installation
• Lateral load-bearing capability
• Maintains proper door alignment
• Aids in installation of floor closers and bottom pivots
• Heavy-duty needle bearing for smooth operation
• Non-ferrous base material
• Standard 3/4" (19 mm) offset
• Recommended for doors 60" to 90" in height (one intermediate pivot required)
• Additional intermediate pivot required for each additional 30" of door height
• Door edges must be beveled 1/8" in 2"
• Furnished with wood and machine screws
• Satin Chromium Plated (626) finish
